54
Display
case
assy
51
53
52
55
56
57
58
59
Item no. Part no. Part name Service part
51
9710368448 Main PCB (For 07 model) ♦
9710368455 Main PCB (For 09 model) ♦
9710368462 Main PCB (For 12 model) ♦
9710368479 Main PCB (For 14 model) ♦
52 9901013027 Terminal ♦
53 9711146069 Display assy ♦
54 9711147042 Indicator PCB ♦
55 9387485004 WLAN holder ♦
56 9387464009 PWB holder A ♦
57 9387795011 PWB holder B ♦
58 9387463026 Control box ♦
59 9323537002 Box shield ♦

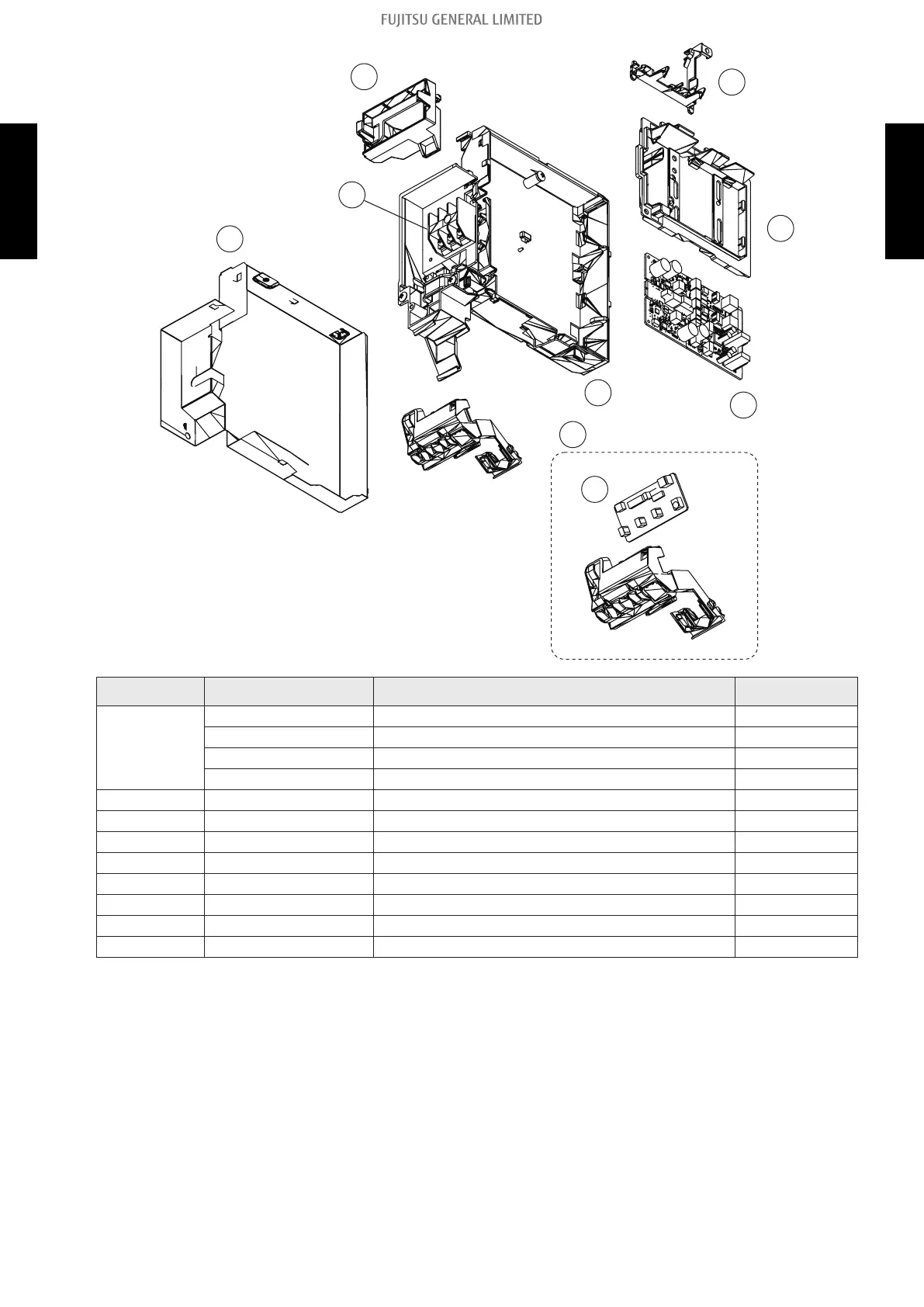

3-4. Wall mounted type - (02-38) - 3. Indoor unit parts list
