54
Display
case
assy
51
53
52
55
56
57
58
59
Item no. Part no. Part name Service part
51
9710368295 Main PCB (For 07 model) ♦
9710368301 Main PCB (For 09 model) ♦
9710368318 Main PCB (For 12 model) ♦
9710368325 Main PCB (For 14 model) ♦
52 9900369057 Terminal ♦
53 9710858024 Display assy ♦
54 9710786020 Indicator PCB ♦
55 9387485004 WLAN holder ♦
56 9387464009 PCB holder A ♦
57 9387795011 PCB holder B ♦
58 9387463026 Control box ♦
59 9323537002 Box shield ♦

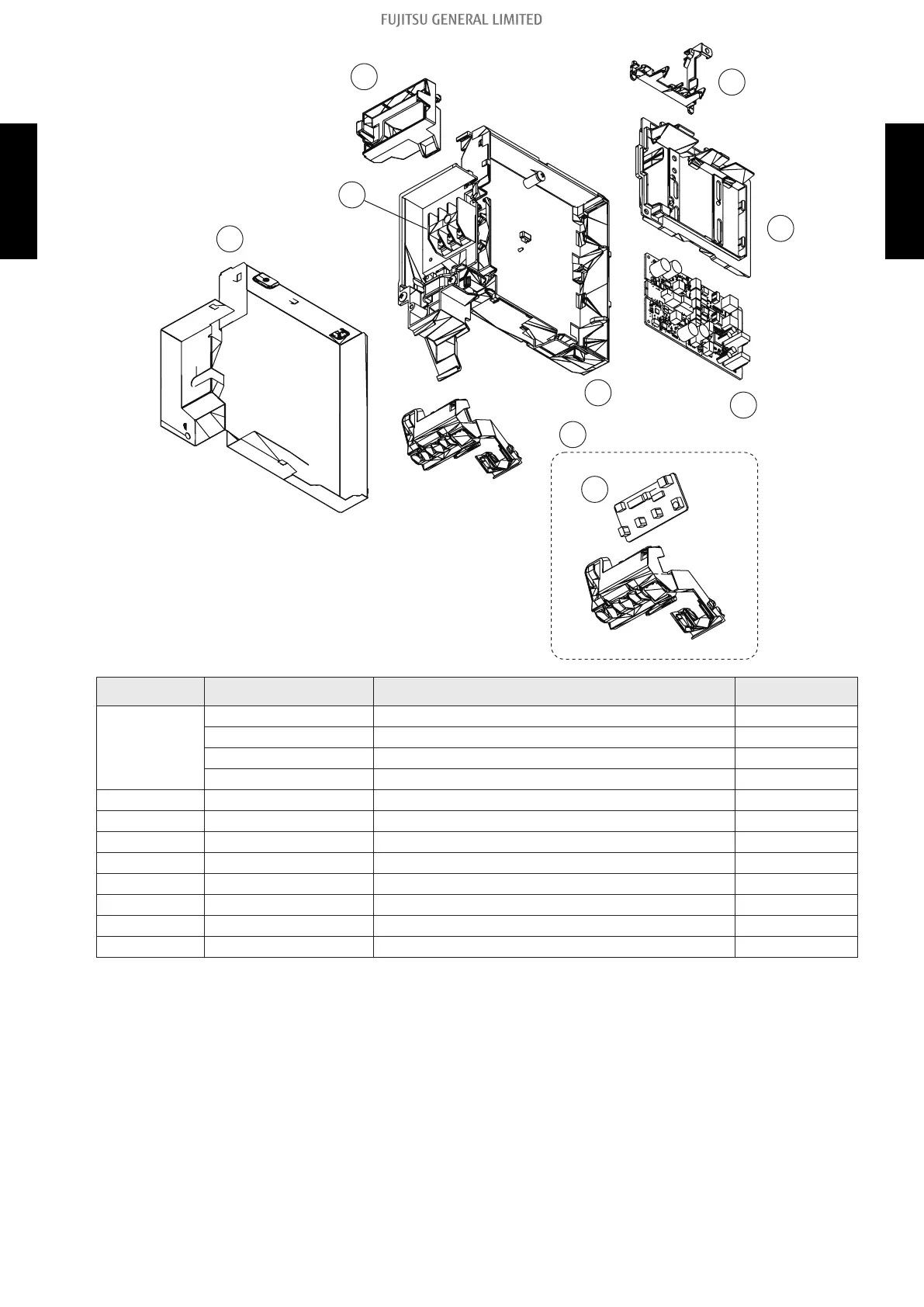

3-5. Wall mounted type - (02-55) - 3. Indoor unit parts list
