Fujitsu AO G09KBTB Series Service Manual

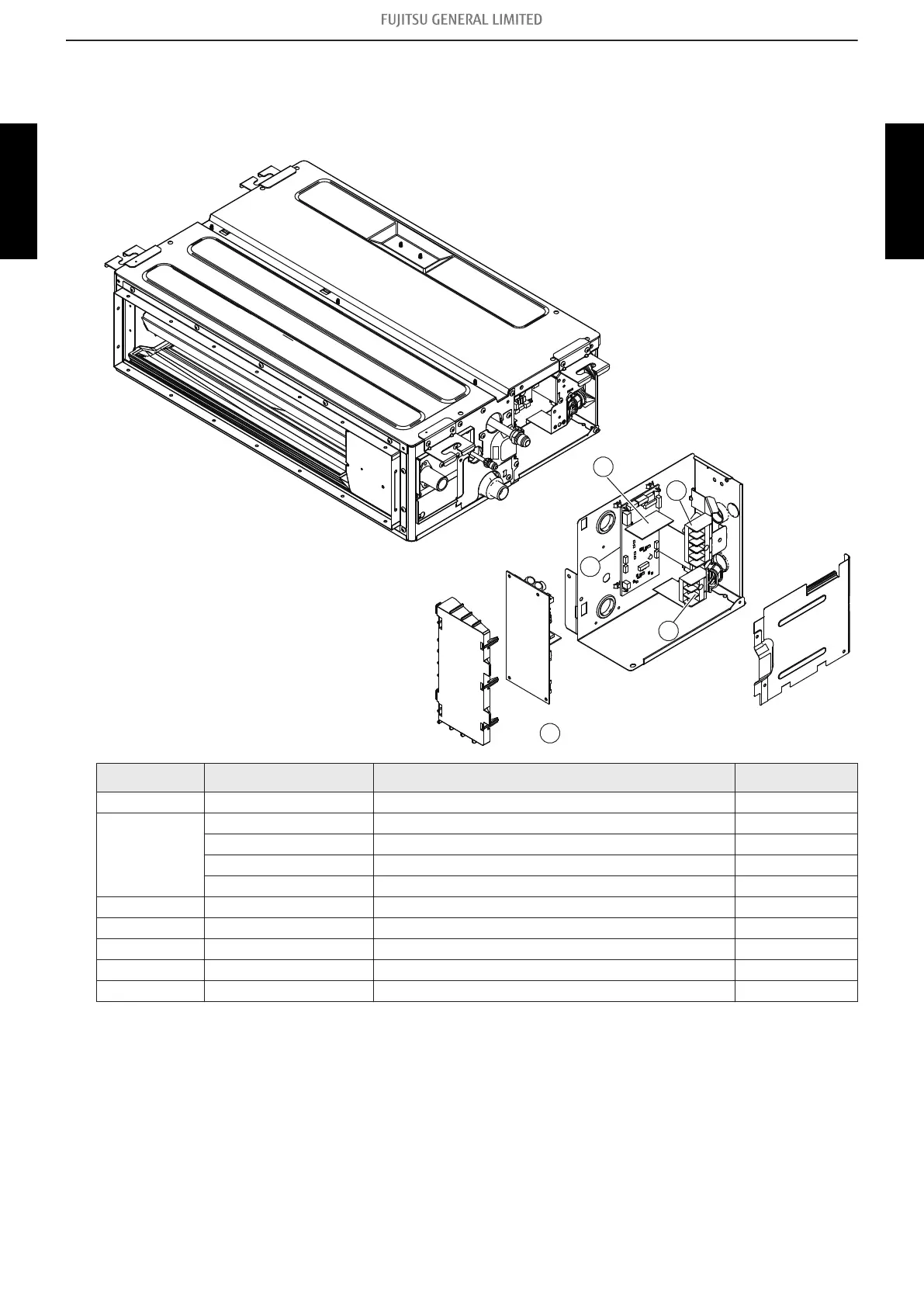

3-2. Mini duct type
¢ Models: ARXG07KSLAP, ARXG09KSLAP, ARXG12KSLAP, and
ARXG14KSLAP
14
13
15
11
12
Item no. Part no. Part name Service part
11 9710661020 Power supply PCB ♦
12
9710624261 Main PCB (For 07 model) ♦
9710624278 Main PCB (For 09 model) ♦
9710624285 Main PCB (For 12 model) ♦
9710624292 Main PCB (For 14 model) ♦
13 9710019005 2-way remote PCB ♦
14 9900568009 Terminal 3P ♦
15 9900896003 Terminal 3P (For wired remote controller) ♦
— 9900653033 Room thermistor ♦
— 9900942021 Pipe thermistor ♦
3-2. Mini duct type - (02-9) - 3. Indoor unit parts list
