Page #110 background imageLoading...
Page #110 background image

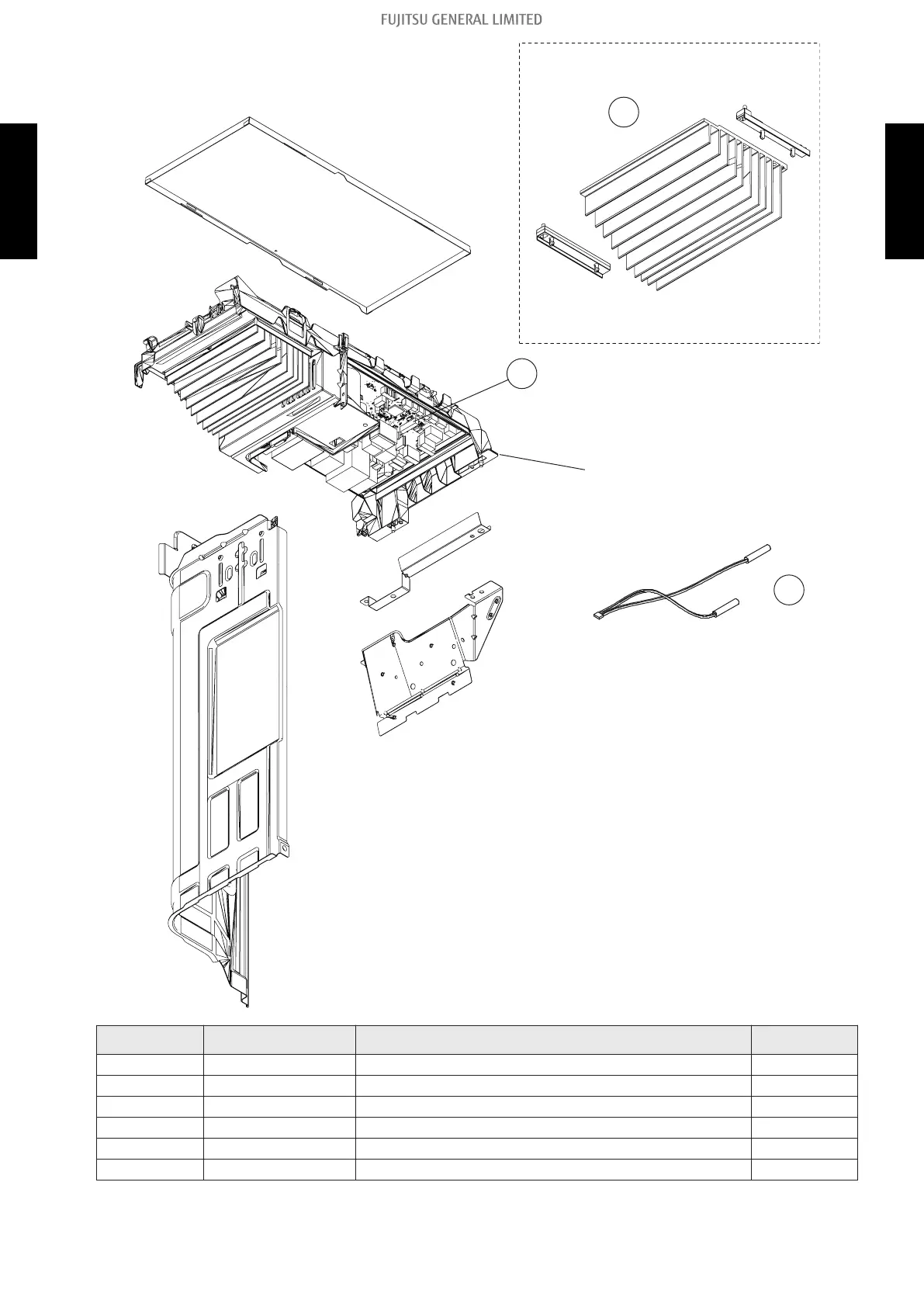

IPM spacer L
IPM
spacer R
PWB Holder
Auxiliary plate
Terminal
bracket assy
Shield panel
22
21
23
Item no. Part no. Part name Service part
21 9709683774 Main PCB (Service unit) ♦
22 9322420039 Heat sink ♦
23 9900727079 Thermistor assy ♦
— 9900984014 Thermistor (Heat exchanger) ♦
— 9901025013 Thermistor assy (AB) ♦
— 9900985035 Compressor temp. thermistor ♦
4-2. Model: AOHG18KBTA2 - (02-66) - 4. Outdoor unit parts list
TECHNICAL DATA
AND PARTS LIST
TECHNICAL DATA
AND PARTS LIST
