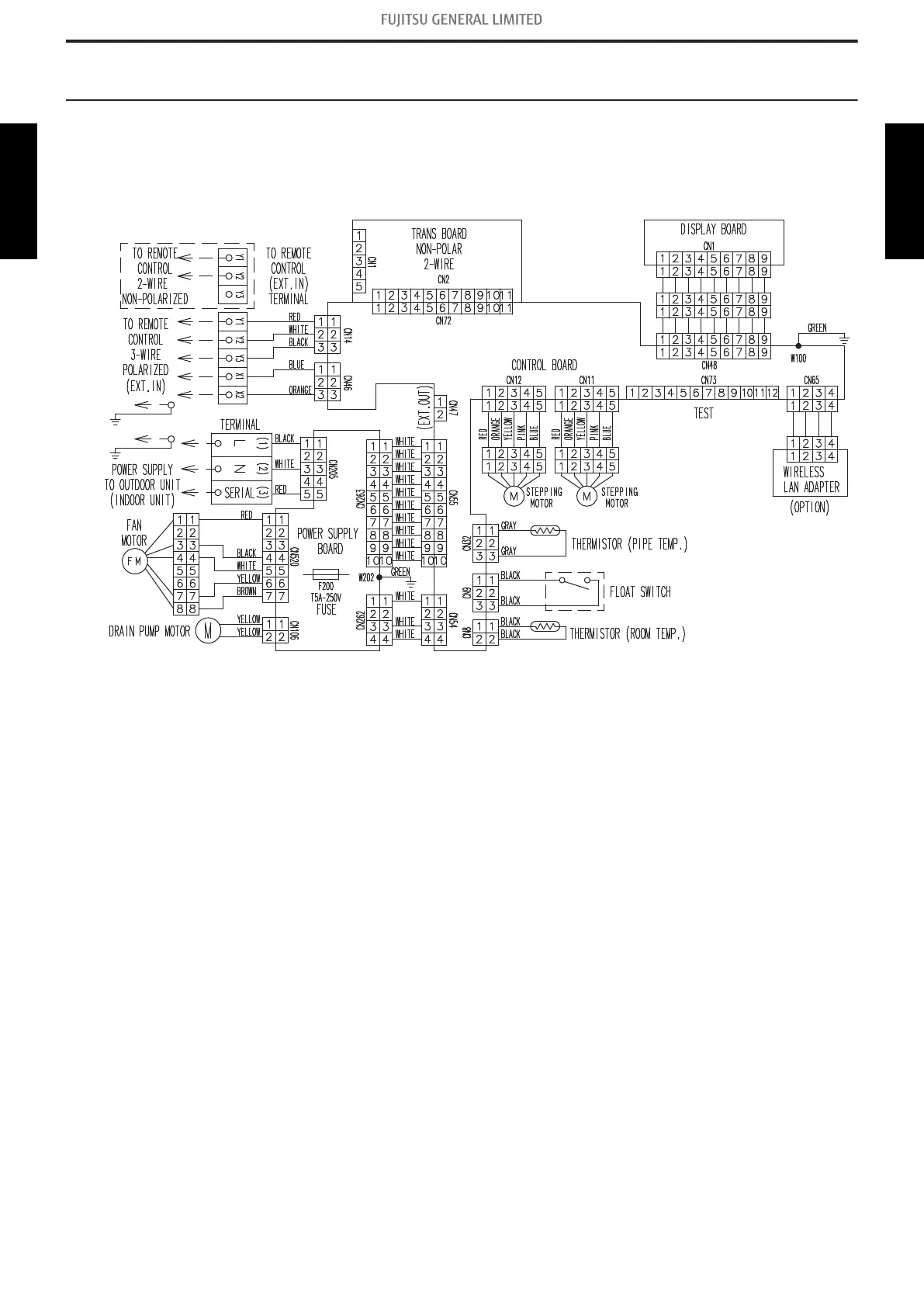

8. Wiring diagrams
8-1. Compact cassette type
¢
Models: AUXG07KVLA, AUXG09KVLA, AUXG12KVLA,
AUXG14KVLA, AUXG18KVLA, and AUXG22KVLA
