Fujitsu AO G12KBTB Series User Manual

 Model: AOYG18KBTB

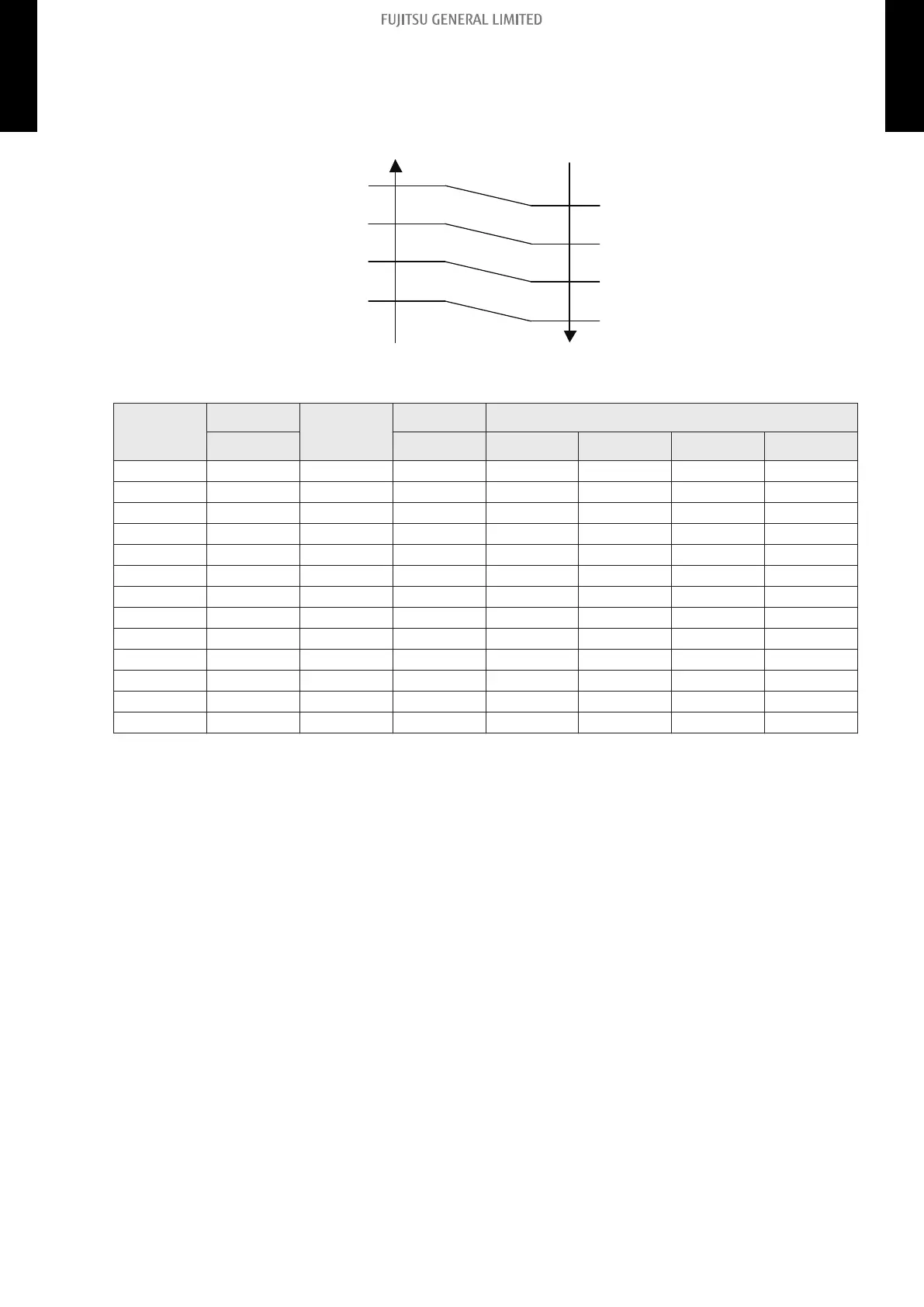

Fan speed is defined by outdoor temperature and compressor frequency.
• Outside air temperature zone selection
21°C
Outside air
temperature rises
Z zone
Y zone
F zone
G zone
Outside air
temperature drops
12°C
2°C
-8°C
19°C
10°C
0°C
-10°C
H zone
Unit: rpm
Fan step
Cooling
Heating
Dry Cooling or dry at low outdoor temp.
Y zone Y zone Z zone F zone G zone H zone
S-HIGH2 — 1,100 — — — — —
S-HIGH1 1,050 1,100 — — — — —
HIGH 1,050 1,100 — — — — —
10 — 1,100 — — — — —
9 1,050 1,100 1,050 850 320 270 270
8 1,050 750 1,050 850 320 270 270
7 870 710 870 770 320 270 270
6 870 570 870 630 270 230 230
5 770 510 770 440 270 230 200
4 630 470 630 320 270 230 200
3 510 420 510 320 270 230 200
2 400 420 400 320 270 230 200
1 400 420 400 320 270 230 200
NOTE: After defrost control on the heating mode, the fan speed is kept higher regardless of the
compressor frequency.
Fan speed after defrost control: 1,100 rpm
3-2. Outdoor fan control - (01-14) - 3. Fan control
