Model: ARXG24KMLA (Static pressure mode 2)
Static pressure (Pa)
35 37 50 55 68 75 93 100
Fan speed
HIGH
m3/h — — — — — — 1,160 930
l/s — — — — — — 322 258
CFM — — — — — — 683 547
MED
m3/h — — — — 1,020 800 — —
l/s — — — — 283 222 — —
CFM — — — — 600 471 — —
LOW
m3/h — — 835 670 — — — —
l/s — — 232 186 — — — —
CFM — — 491 394 — — — —
QUIET
m3/h 660 530 — — — — — —
l/s 183 147 — — — — — —
CFM 388 312 — — — — — —
Airflow (m
3
/h)
30
70
50
Static pressure (Pa)
500 600 800 900 1,000 1,100 1,300
Q-h Characteristic curve
700
80
60
40
1,200
Hi
Med
Low
Quiet
90
100
110
- 15 -

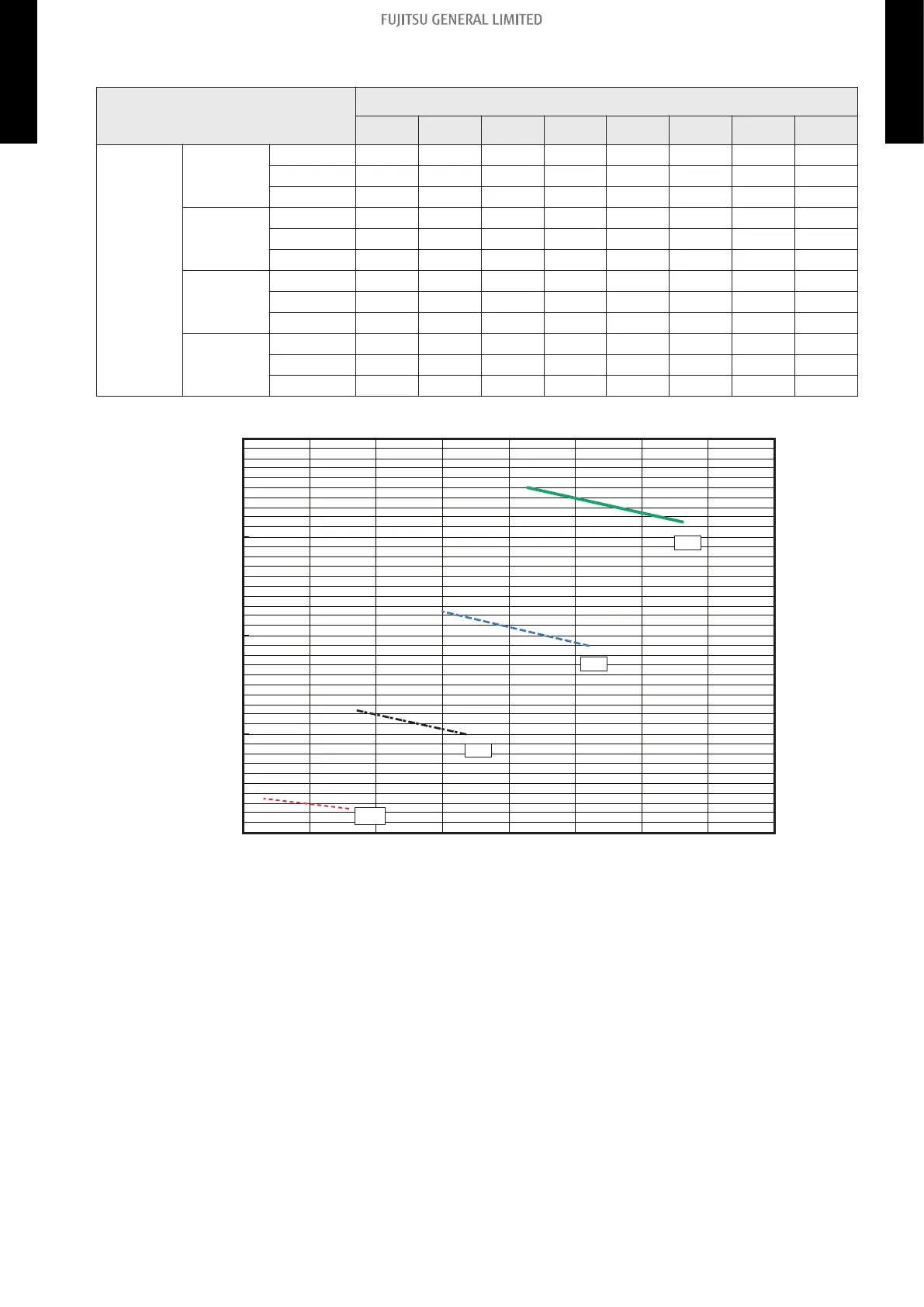

5-1. Fan performance curve
5. Fan performance
DUCT TYPE ARXG24-45KMLA DUCT TYPE ARXG24-45KMLA

Fujitsu AO G30KATA Series Specifications
