¢ Model: ARXG45KMLA (Normal mode)
Static pressure (Pa)
7 10 13 19 21 30 34 57
Fan
speed
HIGH
m3/h — — — — — 2,250 2,223 2,010
l/s — — — — — 625 618 558
CFM — — — — — 1,324 1,308 1,183
MED
m3/h — — — 1,710 1,685 1,585 1,540 —
l/s — — — 475 468 440 428 —
CFM — — — 1,006 992 933 906 —
LOW
m3/h — — 1,325 1,250 1,220 — — —
l/s — — 368 347 339 — — —
CFM — — 780 736 718 — — —
QUIET
m3/h 1,020 995 960 — — — — —
l/s 283 276 267 — — — — —
CFM 600 586 565 — — — — —
Airflow (m
3
/h)
0
60
40
20
Static pressure (Pa)
900 1,100 1,500 1,700 1,900 2,100 2,300
Q-h Characteristic curve
1,300
50
30
10
Hi
Med
Low
Quiet
- 35 -

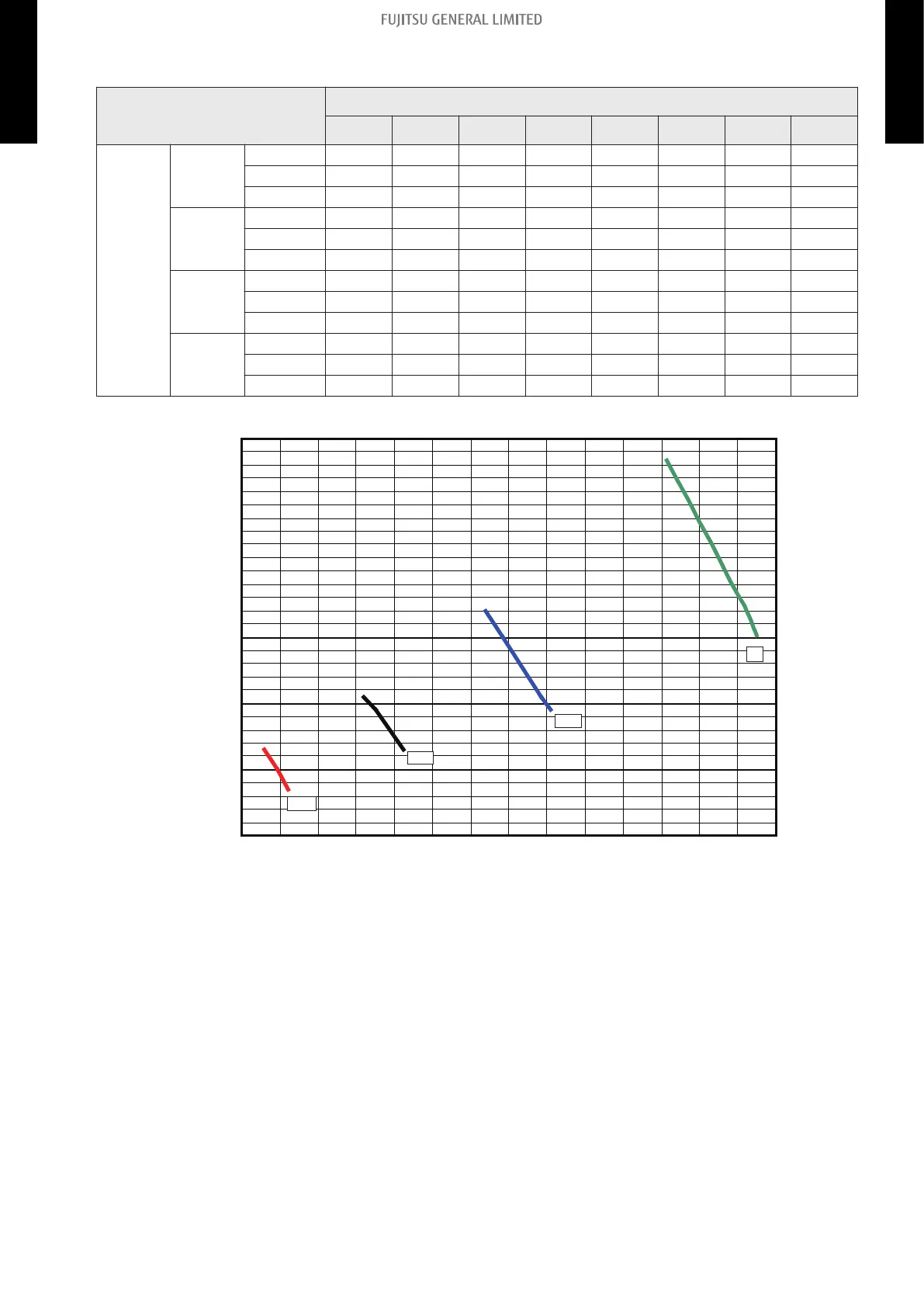

5-1. Fan performance curve
5. Fan performance
DUCT TYPE
ARXG24-45KMLA
DUCT TYPE
ARXG24-45KMLA
