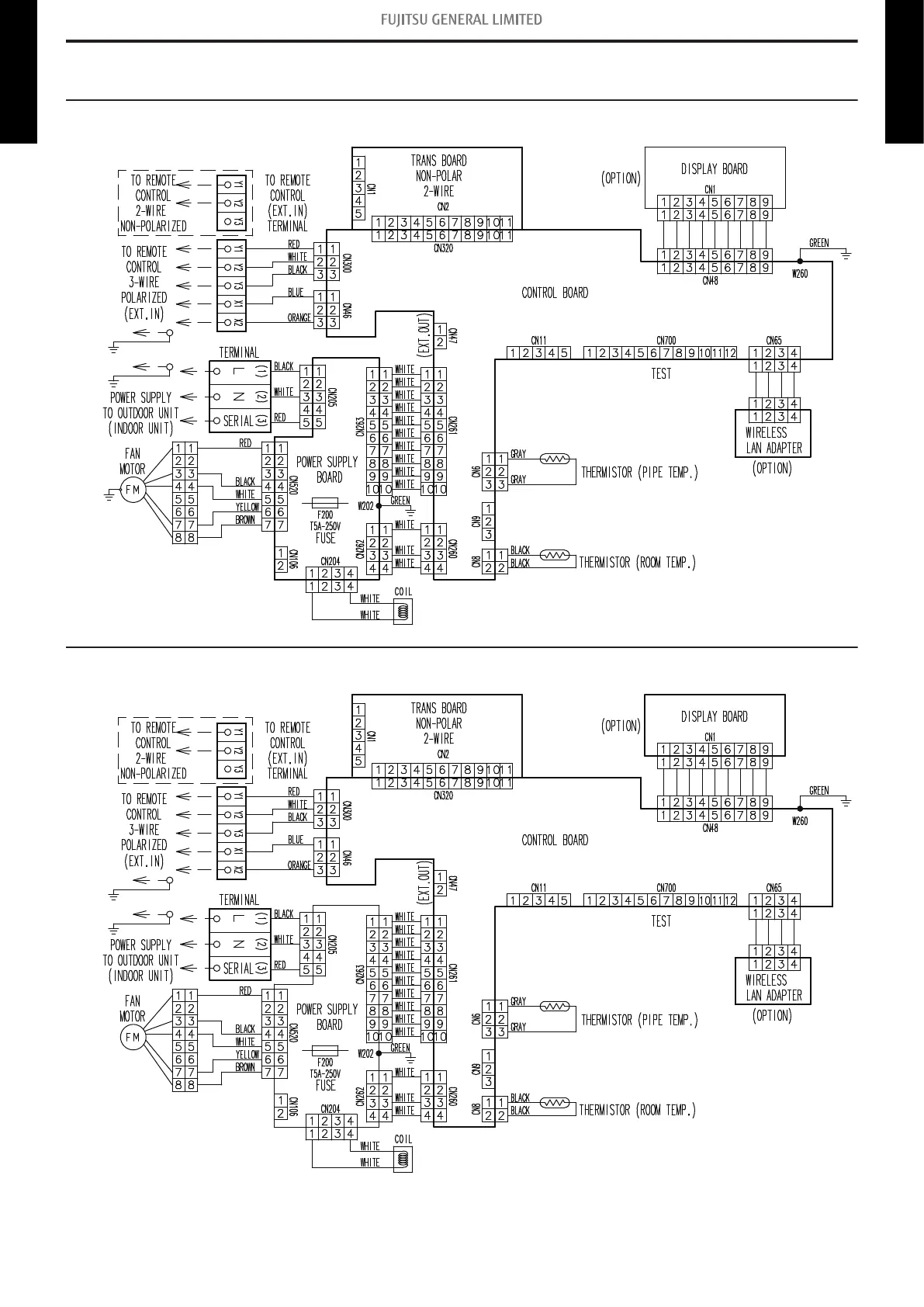

3-1. Model: ARXG24KMLA
3. Wiring diagrams
DUCT TYPE
ARXG24-45KMLA
DUCT TYPE
ARXG24-45KMLA
12
14
Table of Contents
Default Chapter
3
Table of Contents
3
Part 1. INDOOR UNIT
7
Specifications
8
Dimensions
10
Models: ARXG24KMLA, ARXG30KMLA, ARXG36KMLA, and ARXG45KMLA
10
Installation Space Requirement
11
Maintenance Space Requirement
12
Wiring Diagrams
13
Model: ARXG24KMLA
13
Models: ARXG30KMLA, ARXG36KMLA, and ARXG45KMLA
13
Capacity Table
14
Cooling Capacity
14
Heating Capacity
16
Fan Performance
17
Fan Performance Curve
17
Airflow
49
Operation Noise (Sound Pressure)
52
Noise Level Curve
52
Sound Level Check Point
54
Safety Devices
55
External Input and Output
56
External Input
56
External Output
57
Combination of External Input and Output
58
Details of Function
59
Function Settings
62
Function Settings on Indoor Unit
62
Function Settings by Using Remote Controller
64
Accessories
69
10-1.Models: ARXG24KMLA, ARXG30KMLA, ARXG36KMLA, and ARXG45KMLA
69
Optional Parts
70
11-1.Controllers
70
11-2.Others
71
Part 2. OUTDOOR UNIT
73
Specifications
74
Dimensions
77
Model: AOYG24KATA
77
Models: AOYG30KATA and AOYG36KATA
78
Model: AOYG45KATA
79
Installation Space
80
Model: AOYG24KATA
80
Models: AOYG30KATA, AOYG36KATA, and AOYG45KATA
83
Refrigerant Circuit
86
Model: AOYG24KATA
86
Models: AOYG30KATA, AOYG36KATA, and AOYG45KATA
87
Wiring Diagrams
88
Model: AOYG24KATA
88
Models: AOYG30KATA and AOYG36KATA
89
Model: AOYG45KATA
90
Capacity Compensation Rate for Pipe Length and Height Difference
91
Model: AOYG24KATA
91
Model: AOYG30KATA
92
Model: AOYG36KATA
93
Model: AOYG45KATA
94
Additional Charge Calculation
95
Model: AOYG24KATA
95
Models: AOYG30KATA and AOYG36KATA
95
Model: AOYG45KATA
95
Airflow
96
Model: AOYG24KATA
96
Models: AOYG30KATA and AOYG36KATA
96
Model: AOYG45KATA
96
Operation Noise (Sound Pressure)
97
Noise Level Curve
97
Sound Level Check Point
99
Electrical Characteristics
100
Safety Devices
101
External Input and Output (30-45 Models)
103
12-1.External Input
103
12-2.External Output
105
Function Settings (30-45 Models)
107
13-1.Control PCB and Switch Buttons Location
107
13-2.Local Setting Procedure
109
