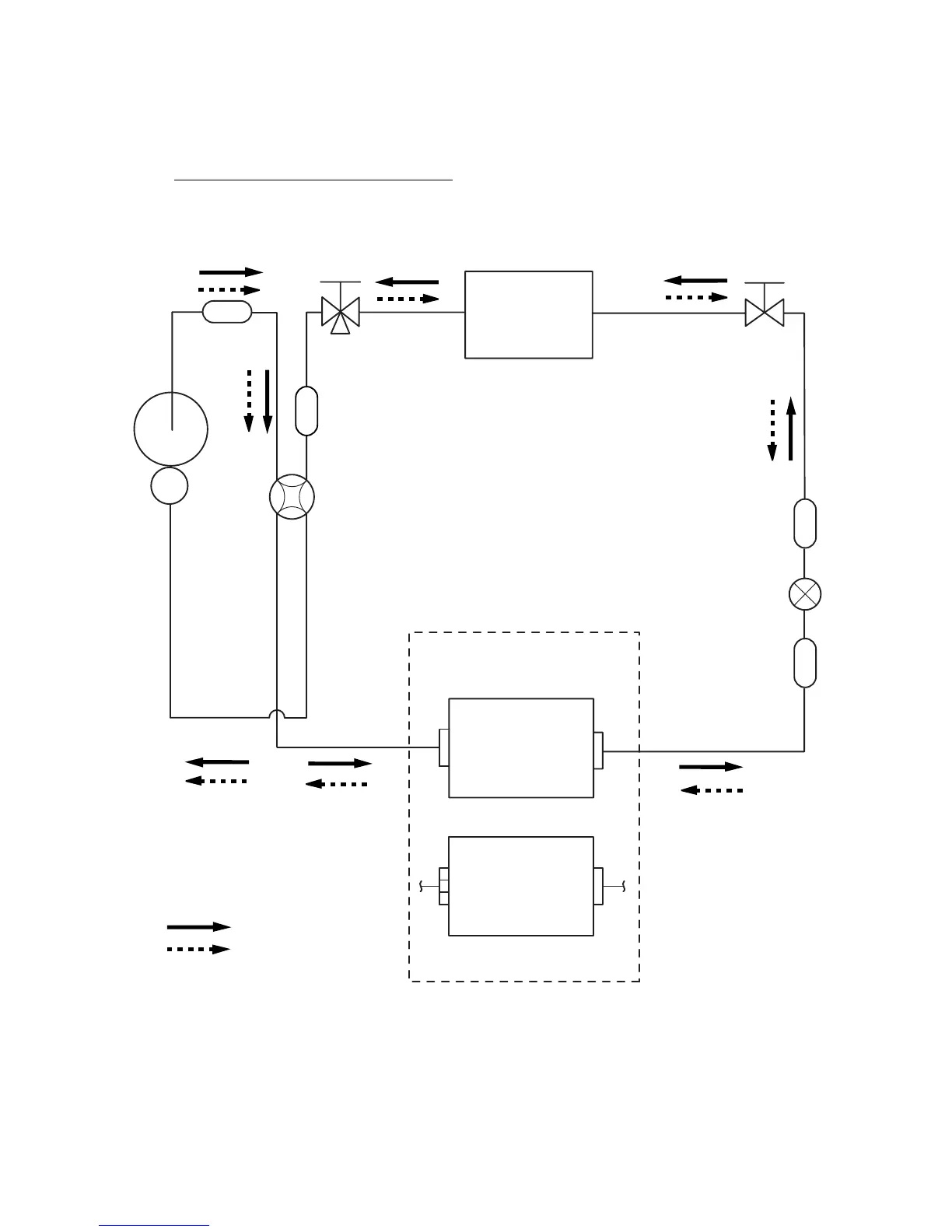

REFRIGERANT SYSTEM DIAGRAM
2-Way
valve
Strainer
Strainer
3-Way
valve
Muffler
Muffler
4-Way valve
Expansion valve
Heat exchanger
( INDOOR )
Heat exchanger
( OUTDOOR )
AOY9LFBC
(2Pass)
AOY12LFBC
(4Pass)
Compressor
Cooling
Heating
ASY12LSBCW / AOY12LFBC
Models : ASY9LSBCW / AOY9LFBC
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 3/8" (9.52 mm)
2005.03.16
3
3
5
Table of Contents
Table of Contents
1
Room Air Conditioner
1
Wall Mounted
1
Specifications
2
Dimensions
3
Refrigerant System Diagram
4
Circuit Diagram
5
Indoor Pcb Circuit Diagram
6
Outdoor Pcb Circuit Diagram
7
Error Contents
8
Disassembly Illustration
10
Parts List
13
Standard Accessories
15
