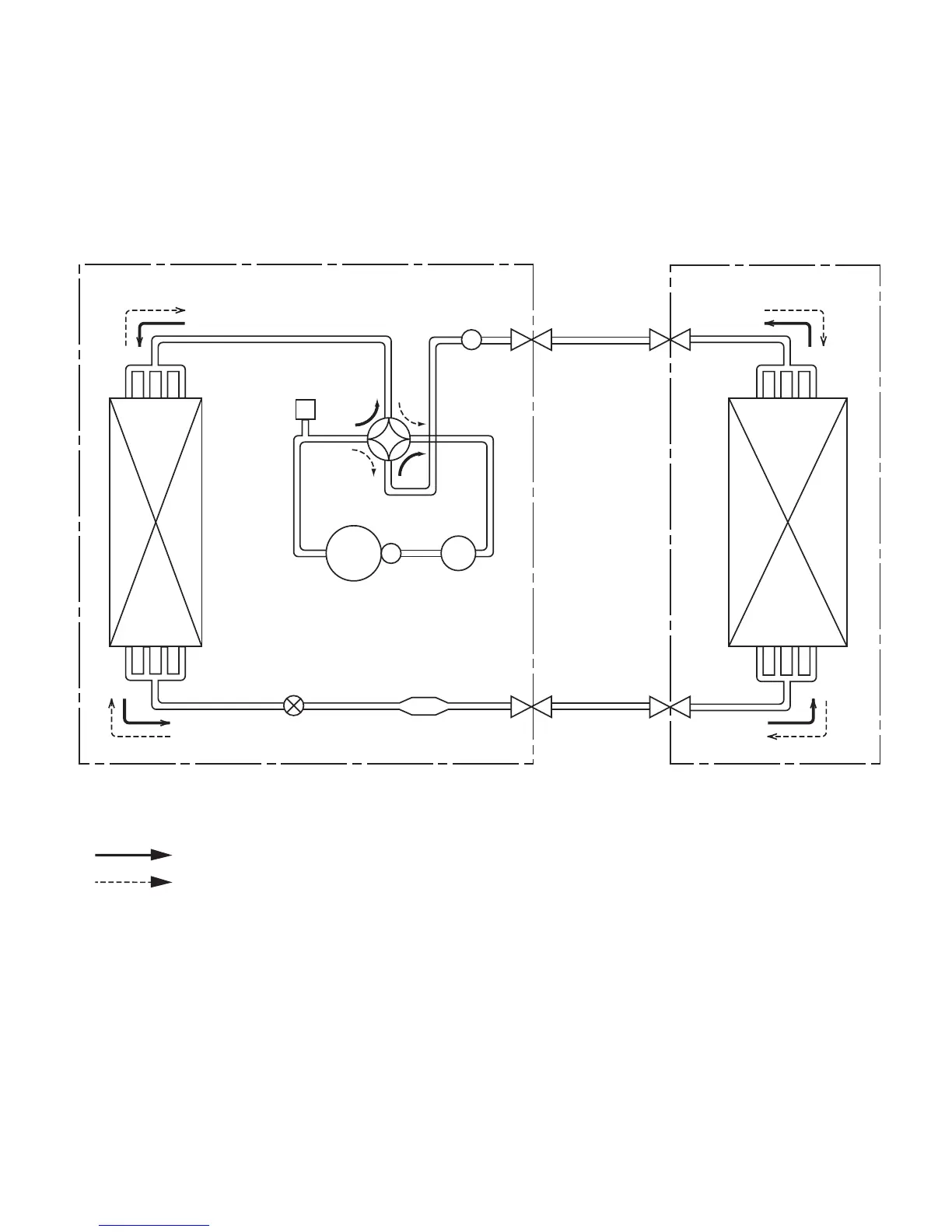

Refrigerant Pipe
( Liquid )
OUTDOOR UNIT
INDOOR UNIT
Evaporator
Accumulator
Condenser
Strainer
Compressor
High
Pressure
Switch
Muffler
Expansion
Valve
Refrigerant Pipe
( Gas )
4-Way
Valve
Cooling
Refrigerant direction
Heating
REFRIGERANT SYSTEM DIAGRAM
42006.06.07
Refrigerant pipe diameter
ARY12LUAD
Gas pipe : 9.52 mm ( 3/8 inch )
Liquid pipe : 6.35 mm ( 1/4 inch )
ARY14LUAD
Gas pipe : 12.70 mm ( 1/2 inch )
Liquid pipe : 6.35 mm ( 1/4 inch )
