Fujitsu AOY12LSAC Service Manual

Fujitsu AOY12LSAC
16 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Page #9 background imageLoading...
Page #9 background image
MB90462-117
N200500K
SC-10-55JH
POWER SOURCE
220 - 240V
50Hz
AOY12LSAC
AOY9LSAC

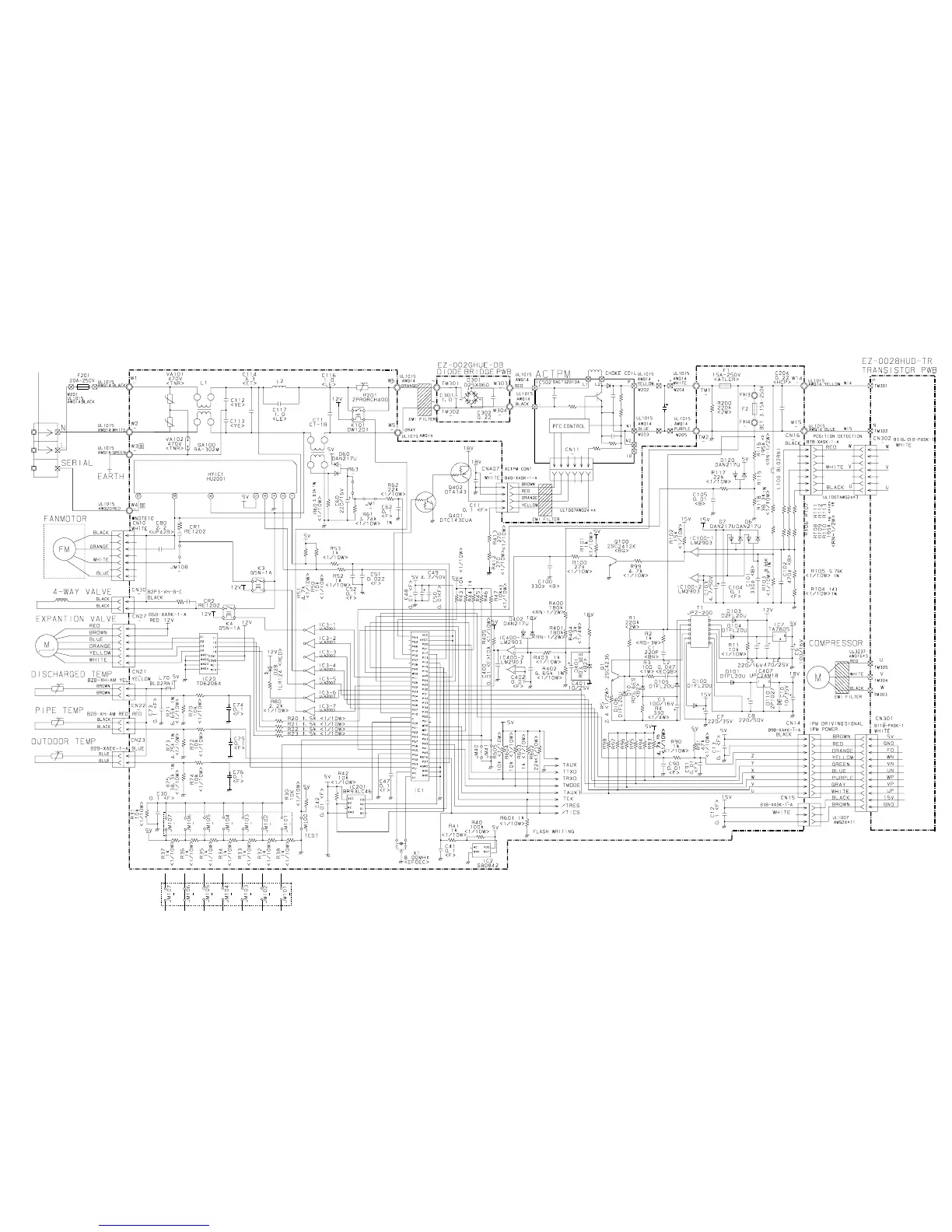

CONTROLLER PCB ASSEMBLY ( MAIN PCB)
AOY9LSAC : EZ-002LHUE-C
AOY12LSAC : EZ-002GHUE-C
OUTDOOR PRINTED CIRCUIT BOARD
CIRCUIT DIAGRAM
8
2004.10.07
