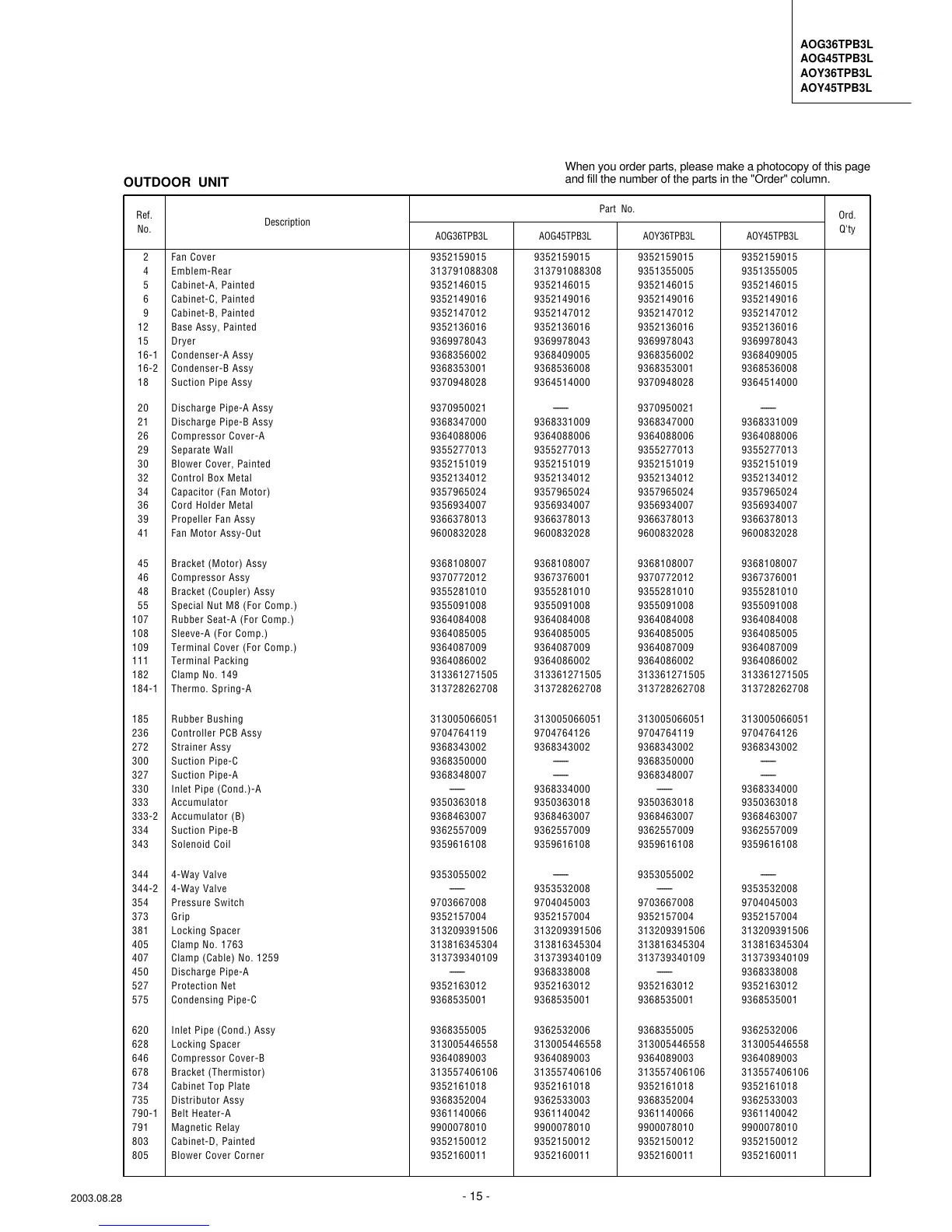

When you order parts, please make a photocopy of this page
and fill the number of the parts in the "Order" column.
OUTDOOR UNIT
AOG36TPB3L
AOG45TPB3L
AOY36TPB3L
AOY45TPB3L
2 Fan Cover 9352159015 9352159015 9352159015 9352159015
4 Emblem-Rear 313791088308 313791088308 9351355005 9351355005
5 Cabinet-A, Painted 9352146015 9352146015 9352146015 9352146015
6 Cabinet-C, Painted 9352149016 9352149016 9352149016 9352149016
9 Cabinet-B, Painted 9352147012 9352147012 9352147012 9352147012
12 Base Assy, Painted 9352136016 9352136016 9352136016 9352136016
15 Dryer 9369978043 9369978043 9369978043 9369978043
16-1 Condenser-A Assy 9368356002 9368409005 9368356002 9368409005
16-2 Condenser-B Assy 9368353001 9368536008 9368353001 9368536008
18 Suction Pipe Assy 9370948028 9364514000 9370948028 9364514000
20 Discharge Pipe-A Assy 9370950021 -------- 9370950021 --------
21 Discharge Pipe-B Assy 9368347000 9368331009 9368347000 9368331009
26 Compressor Cover-A 9364088006 9364088006 9364088006 9364088006
29 Separate Wall 9355277013 9355277013 9355277013 9355277013
30 Blower Cover, Painted 9352151019 9352151019 9352151019 9352151019
32 Control Box Metal 9352134012 9352134012 9352134012 9352134012
34 Capacitor (Fan Motor) 9357965024 9357965024 9357965024 9357965024
36 Cord Holder Metal 9356934007 9356934007 9356934007 9356934007
39 Propeller Fan Assy 9366378013 9366378013 9366378013 9366378013
41 Fan Motor Assy-Out 9600832028 9600832028 9600832028 9600832028
45 Bracket (Motor) Assy 9368108007 9368108007 9368108007 9368108007
46 Compressor Assy 9370772012 9367376001 9370772012 9367376001
48 Bracket (Coupler) Assy 9355281010 9355281010 9355281010 9355281010
55 Special Nut M8 (For Comp.) 9355091008 9355091008 9355091008 9355091008
107 Rubber Seat-A (For Comp.) 9364084008 9364084008 9364084008 9364084008
108 Sleeve-A (For Comp.) 9364085005 9364085005 9364085005 9364085005
109 Terminal Cover (For Comp.) 9364087009 9364087009 9364087009 9364087009
111 Terminal Packing 9364086002 9364086002 9364086002 9364086002
182 Clamp No. 149 313361271505 313361271505 313361271505 313361271505
184-1 Thermo. Spring-A 313728262708 313728262708 313728262708 313728262708
185 Rubber Bushing 313005066051 313005066051 313005066051 313005066051
236 Controller PCB Assy 9704764119 9704764126 9704764119 9704764126
272 Strainer Assy 9368343002 9368343002 9368343002 9368343002
300 Suction Pipe-C 9368350000 -------- 9368350000 --------
327 Suction Pipe-A 9368348007 -------- 9368348007 --------
330 Inlet Pipe (Cond.)-A -------- 9368334000 -------- 9368334000
333 Accumulator 9350363018 9350363018 9350363018 9350363018
333-2 Accumulator (B) 9368463007 9368463007 9368463007 9368463007
334 Suction Pipe-B 9362557009 9362557009 9362557009 9362557009
343 Solenoid Coil 9359616108 9359616108 9359616108 9359616108
344 4-Way Valve 9353055002 -------- 9353055002 --------
344-2 4-Way Valve -------- 9353532008 -------- 9353532008
354 Pressure Switch 9703667008 9704045003 9703667008 9704045003
373 Grip 9352157004 9352157004 9352157004 9352157004
381 Locking Spacer 313209391506 313209391506 313209391506 313209391506
405 Clamp No. 1763 313816345304 313816345304 313816345304 313816345304
407 Clamp (Cable) No. 1259 313739340109 313739340109 313739340109 313739340109
450 Discharge Pipe-A -------- 9368338008 -------- 9368338008
527 Protection Net 9352163012 9352163012 9352163012 9352163012
575 Condensing Pipe-C 9368535001 9368535001 9368535001 9368535001
620 Inlet Pipe (Cond.) Assy 9368355005 9362532006 9368355005 9362532006
628 Locking Spacer 313005446558 313005446558 313005446558 313005446558
646 Compressor Cover-B 9364089003 9364089003 9364089003 9364089003
678 Bracket (Thermistor) 313557406106 313557406106 313557406106 313557406106
734 Cabinet Top Plate 9352161018 9352161018 9352161018 9352161018
735 Distributor Assy 9368352004 9362533003 9368352004 9362533003
790-1 Belt Heater-A 9361140066 9361140042 9361140066 9361140042
791 Magnetic Relay 9900078010 9900078010 9900078010 9900078010
803 Cabinet-D, Painted 9352150012 9352150012 9352150012 9352150012
805 Blower Cover Corner 9352160011 9352160011 9352160011 9352160011
