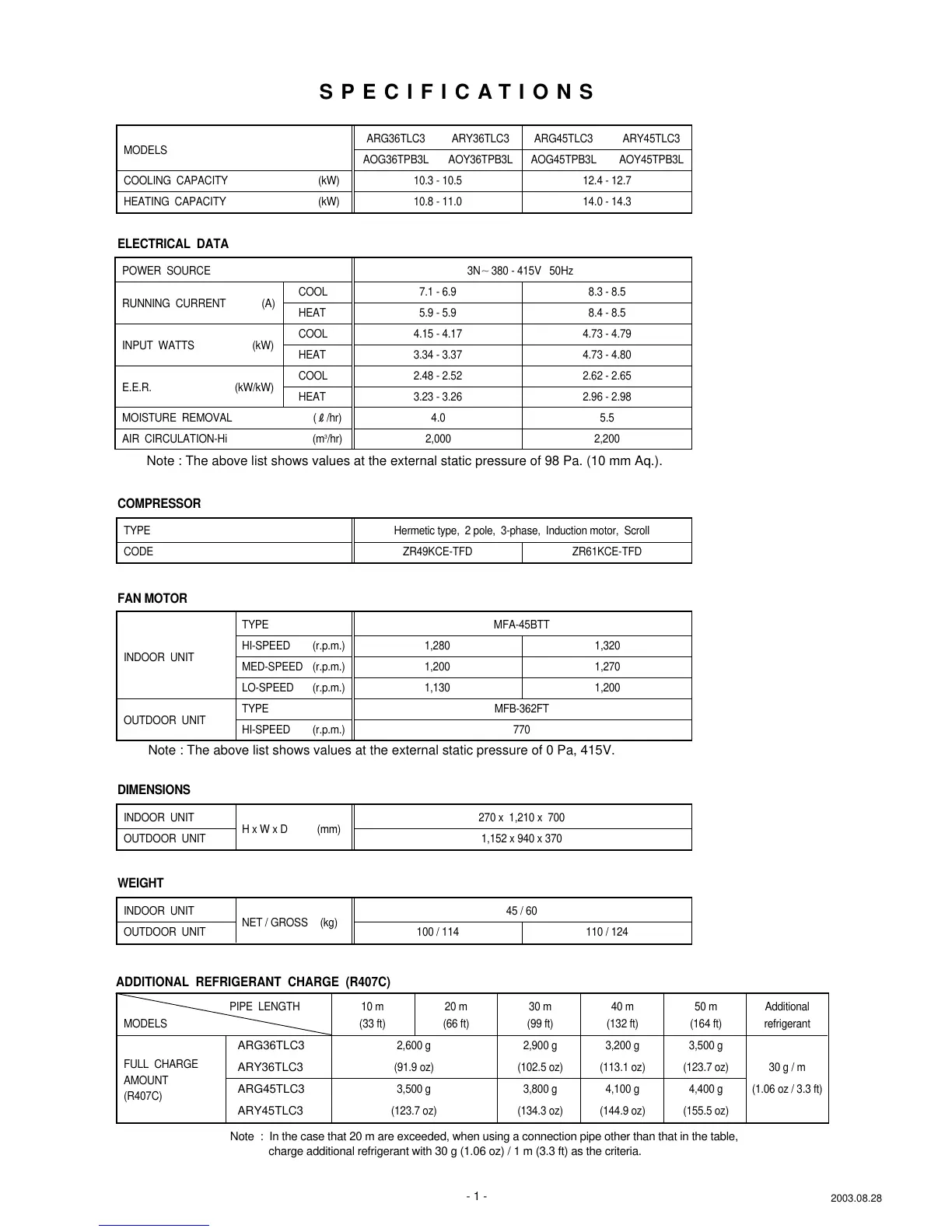

MODELS
ARG36TLC3 ARY36TLC3 ARG45TLC3 ARY45TLC3
AOG36TPB3L AOY36TPB3L AOG45TPB3L AOY45TPB3L
COOLING CAPACITY (kW) 10.3 - 10.5 12.4 - 12.7
HEATING CAPACITY (kW) 10.8 - 11.0 14.0 - 14.3
TYPE Hermetic type, 2 pole, 3-phase, Induction motor, Scroll
CODE ZR49KCE-TFD ZR61KCE-TFD
POWER SOURCE 3N 380 - 415V 50Hz
RUNNING CURRENT (A)
COOL 7.1 - 6.9 8.3 - 8.5
HEAT 5.9 - 5.9 8.4 - 8.5
INPUT WATTS (kW)
COOL 4.15 - 4.17 4.73 - 4.79
HEAT 3.34 - 3.37 4.73 - 4.80
E.E.R. (kW/kW)
COOL 2.48 - 2.52 2.62 - 2.65
HEAT 3.23 - 3.26 2.96 - 2.98
MOISTURE REMOVAL ( /hr) 4.0 5.5
AIR CIRCULATION-Hi (m
3
/hr) 2,000 2,200
TYPE MFA-45BTT
INDOOR UNIT
HI-SPEED (r.p.m.) 1,280 1,320
MED-SPEED (r.p.m.) 1,200 1,270
LO-SPEED (r.p.m.) 1,130 1,200
OUTDOOR UNIT
TYPE MFB-362FT
HI-SPEED (r.p.m.) 770
INDOOR UNIT
H x W x D (mm)
270 x 1,210 x 700
OUTDOOR UNIT 1,152 x 940 x 370
INDOOR UNIT
NET / GROSS (kg)
45 / 60
OUTDOOR UNIT 100 / 114 110 / 124
SPECIFICATIONS
ELECTRICAL DATA
COMPRESSOR
FAN MOTOR
DIMENSIONS
WEIGHT
Note : The above list shows values at the external static pressure of 98 Pa. (10 mm Aq.).
Note : The above list shows values at the external static pressure of 0 Pa, 415V.
ADDITIONAL REFRIGERANT CHARGE (R407C)
PIPE LENGTH 10 m 20 m 30 m 40 m 50 m Additional
MODELS (33 ft) (66 ft) (99 ft) (132 ft) (164 ft) refrigerant
ARG36TLC3
2,600 g 2,900 g 3,200 g 3,500 g
FULL CHARGE
ARY36TLC3
(91.9 oz) (102.5 oz) (113.1 oz) (123.7 oz) 30 g / m
AMOUNT
ARG45TLC3
3,500 g 3,800 g 4,100 g 4,400 g (1.06 oz / 3.3 ft)
(R407C)
ARY45TLC3
(123.7 oz) (134.3 oz) (144.9 oz) (155.5 oz)
Note : In the case that 20 m are exceeded, when using a connection pipe other than that in the table,
charge additional refrigerant with 30 g (1.06 oz) / 1 m (3.3 ft) as the criteria.
