2003.06.11
- 6 -

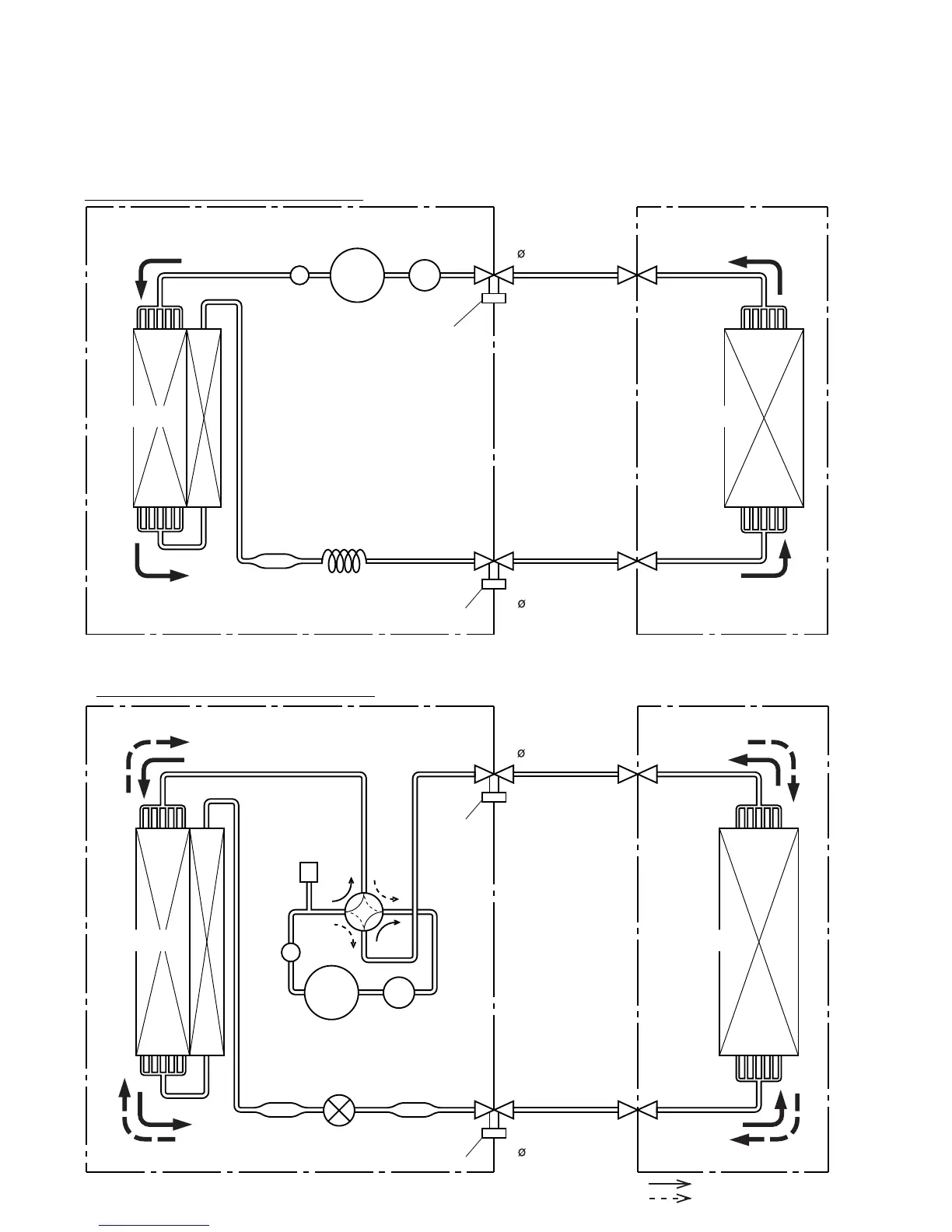

REFRIGERANT SYSTEM DIAGRAM
Models : AUG54AGB3W / AOG54APA3L
AUY54AGB3W / AOY54APA3L
AUG54ALB3W / AOG54APA3L
AUY54ALB3W / AOY54APA3L
AUT54ALB3W / AOT54APA3L
Refrigerant pipe
19.05mm(3/4")
Refrigerant pipe
9.52mm(3/8")
CAPILLARY TUBE
Charging valve
MUFFLER
COMPRESSOR
ACCUMULATOR
Charging valve
DRYER
OUTDOOR UNIT INDOOR UNIT
EVAPORATORCONDENSER
Models : AUG54RLB3W / AOG54RPA3L
AUY54RLB3W / AOY54RPA3L
AUT54RLB3W / AOT54RPA3L
Refrigerant pipe
19.05mm(3/4")
Refrigerant pipe
9.52mm(3/8")
: COOL
: HEAT
Charging
valve
MUFFLER
HIGH
PRESSURE
SWITCH
COMPRESSOR
4-Way
Valve
ACCUMULATOR
Charging valve
DRYER
EXPANSION
VALVE
STRAINER
OUTDOOR UNIT INDOOR UNIT
EVAPORATORCONDENSER
