2.9.5

Electrical connections on outside unit

side

Access to the connection terminals

•

Model 050, 065, 080

Remove the cap (figure 32).

•

Model 095, 128, 155

Remove the front panel

Remove the cap (figure 34).

Make the connections in accordance with the

diagram(s) Fig. 33.

Use cable clamps to prevent the conductors from

being disconnected accidentally.

Fill in the space where the cables enter the outside

unit with the insulating plate (fig. 35).

26 Installation and operating manual “1350-EN”

Heat pump, Split, single service

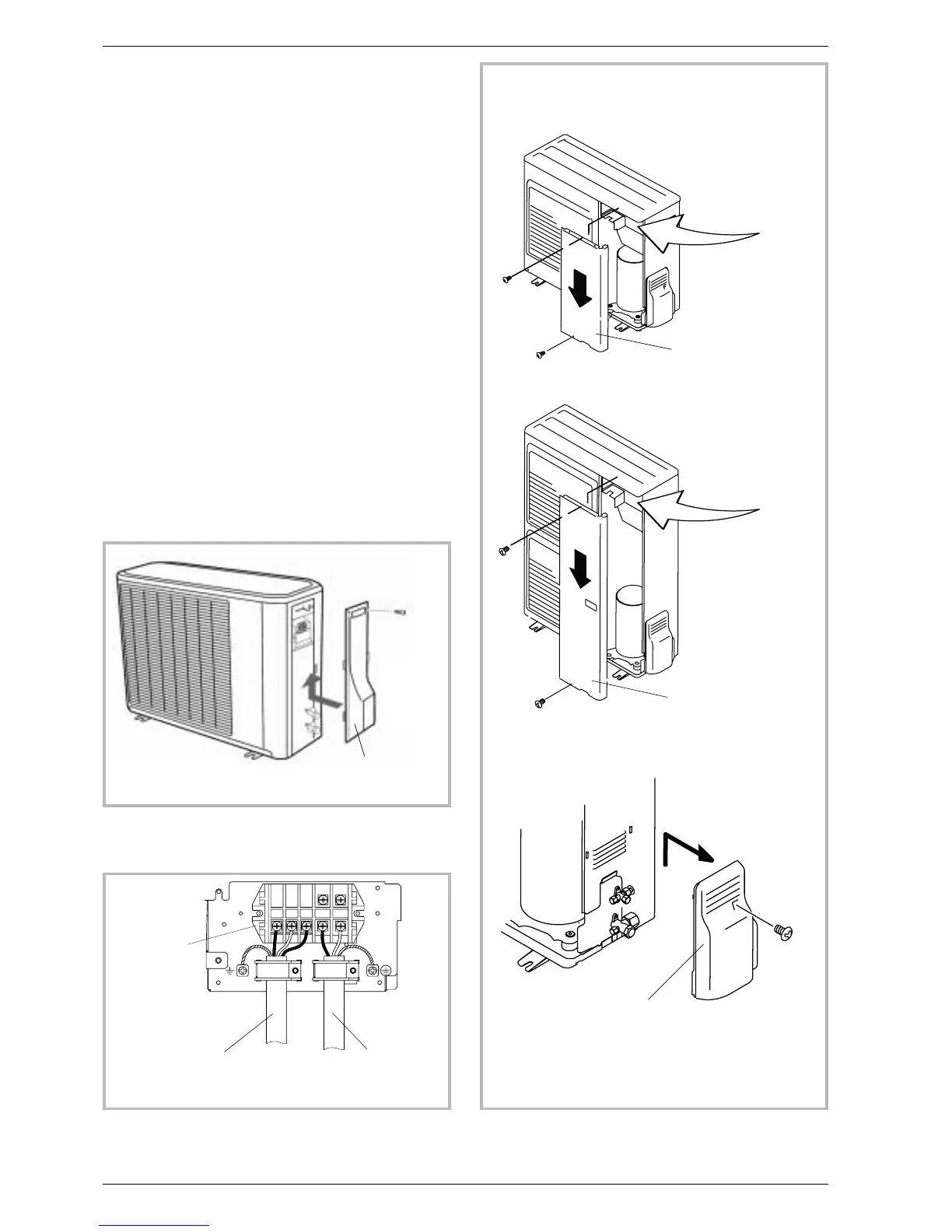

Remove the cap

(1 screw)

Figure 32 - Access to outside unit’s terminal block

(model 050, 065, 080)

General electrical

supply

Terminal

block

Interconnection

between the external unit

and the hydraulic module

Figure 33 - Connections to outside unit’s terminal

block

Remove the front panel

(2 screws)

Remove the front panel

(2 screws)

Remove

the cap (1 screw)

Figure 34 - Access to outside unit’s terminal block

(model 095, 128, 155)
