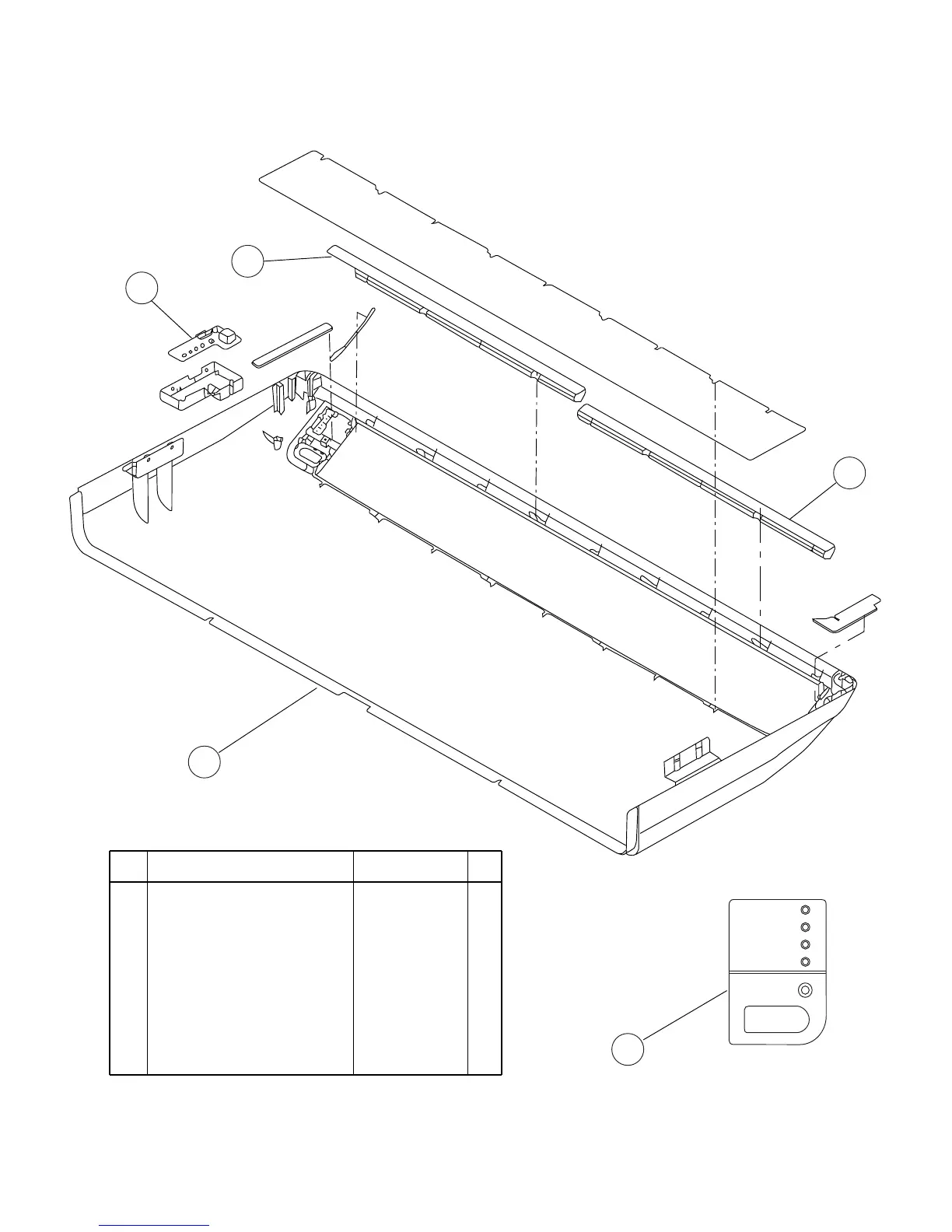

INDOOR UNIT
Panel assy
2009.01.14
44
11
12
15
14
13
13 Indicator PCB Assy 9705798069
14 Insulation (Panel) A 9358574003
15 Insulation (Panel) B 9358914007
11
Panel Assy (with side cover R)
9359076247
12 Side Cover R Assy 9359069072
--
Panel
Insulation F
PCB holder
Insulation D
Insulation E
Insulation C
9358531167
Ref. Description Part number
CEILING TYPE
