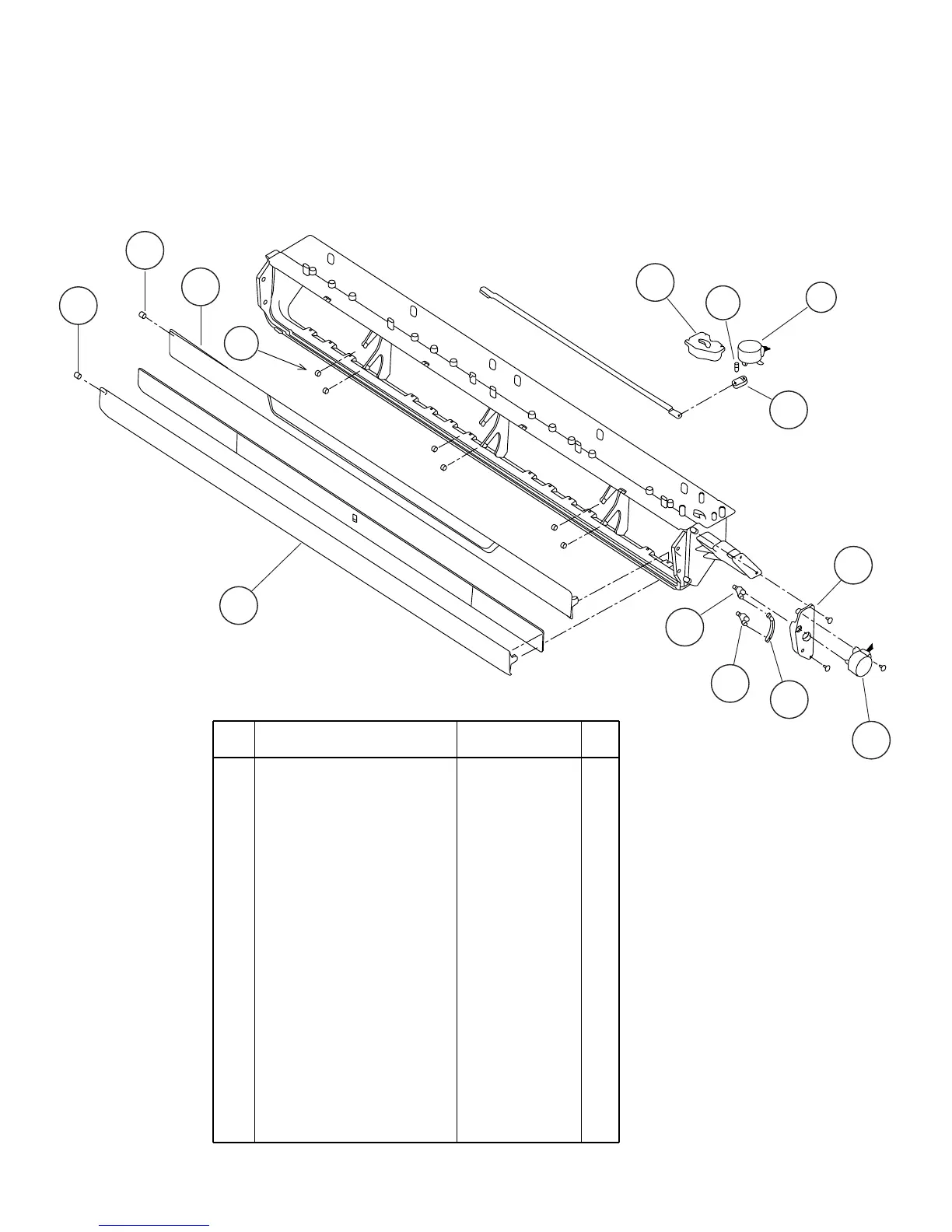

INDOOR UNIT
Flap base sub assy
2009.01.14 47
46
48
49
51
50
53
44
45
41
41
43
52
47
42
43 Flap (Upper) F 9358538029
44 Kit (Flap Lower) 9372671023
41 Bushing 9357942001
42 Bushing C 9358553008
46 Louver Link 9358556009
47 Louver Shaft 9358557006
48 Louver Link Cover 9358558010
52
Flap Link-Upper (Step V)
9358551004
53
Flap Link-Lower (Step V)
9358552001
51 Motor Rod-A (Step V) 9358550007
50 Motor Base 9358562017
45 Step Motor H 9900297015
49 Step Motor-V 9900362010
Ref. Description Part number
CEILING TYPE
