Fujitsu AOYG12LTCN Service Manual

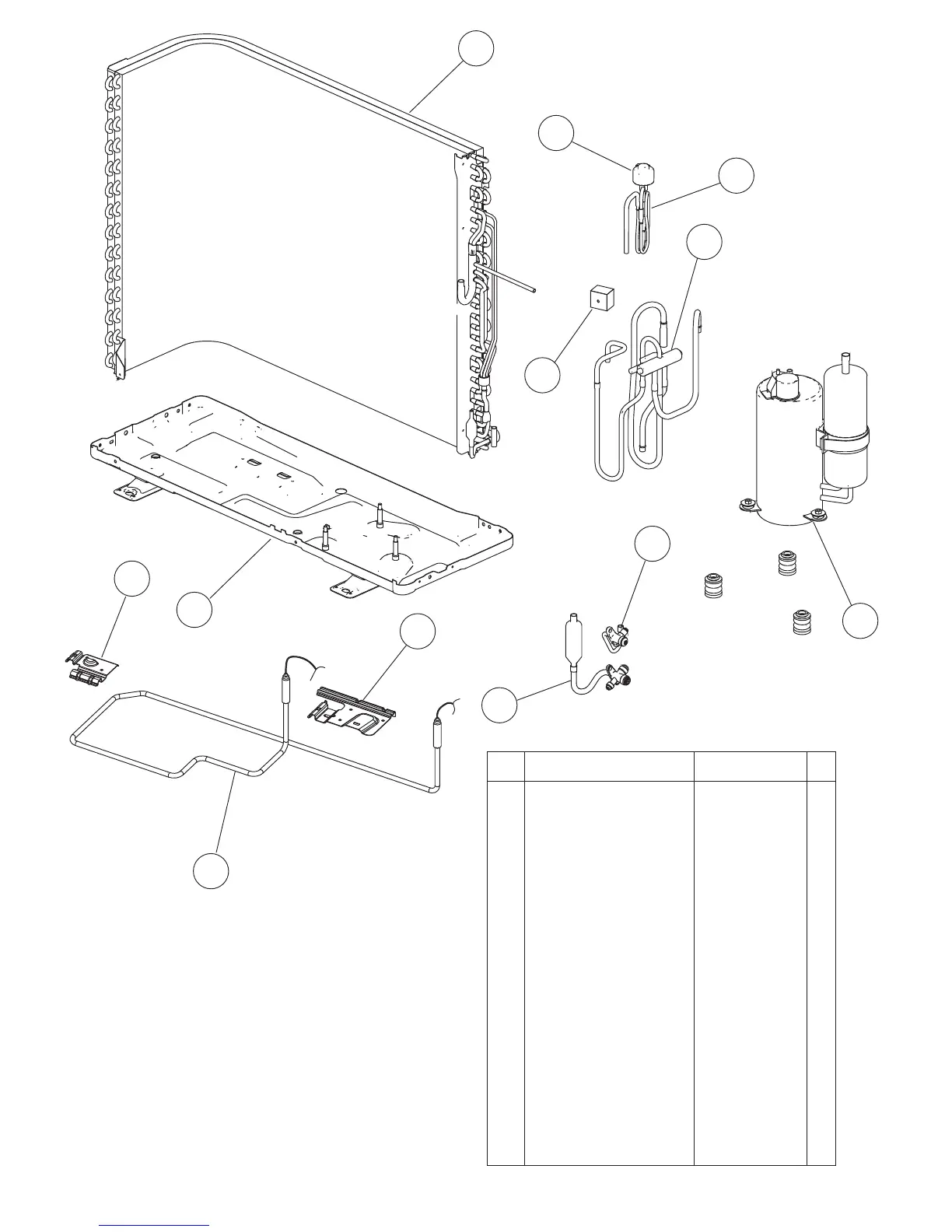

OUTDOOR UNIT
2011.09.16 19
24
26
25
27
31
28
32
29
30
26 Compressor Assy 9317117005
28 3-way Valve Sub Assy 9317109000
31 Pulse Motor Valve Assy 9332368000
4-way Valve Assy 9317110020
30 Solenoid 9970110047
25 Condenser Total Assy 9317089098
32 Expansion Valve Coil 9970095030
29
27 2-way Valve Assy 9332371000
24 Base Assy 9316885059
Ref. Description Part number
23
21
22
22 Heater Holder A 9318631005
23 Heater Holder B 9318651003
21 Heater Unit Assy 9900616014
