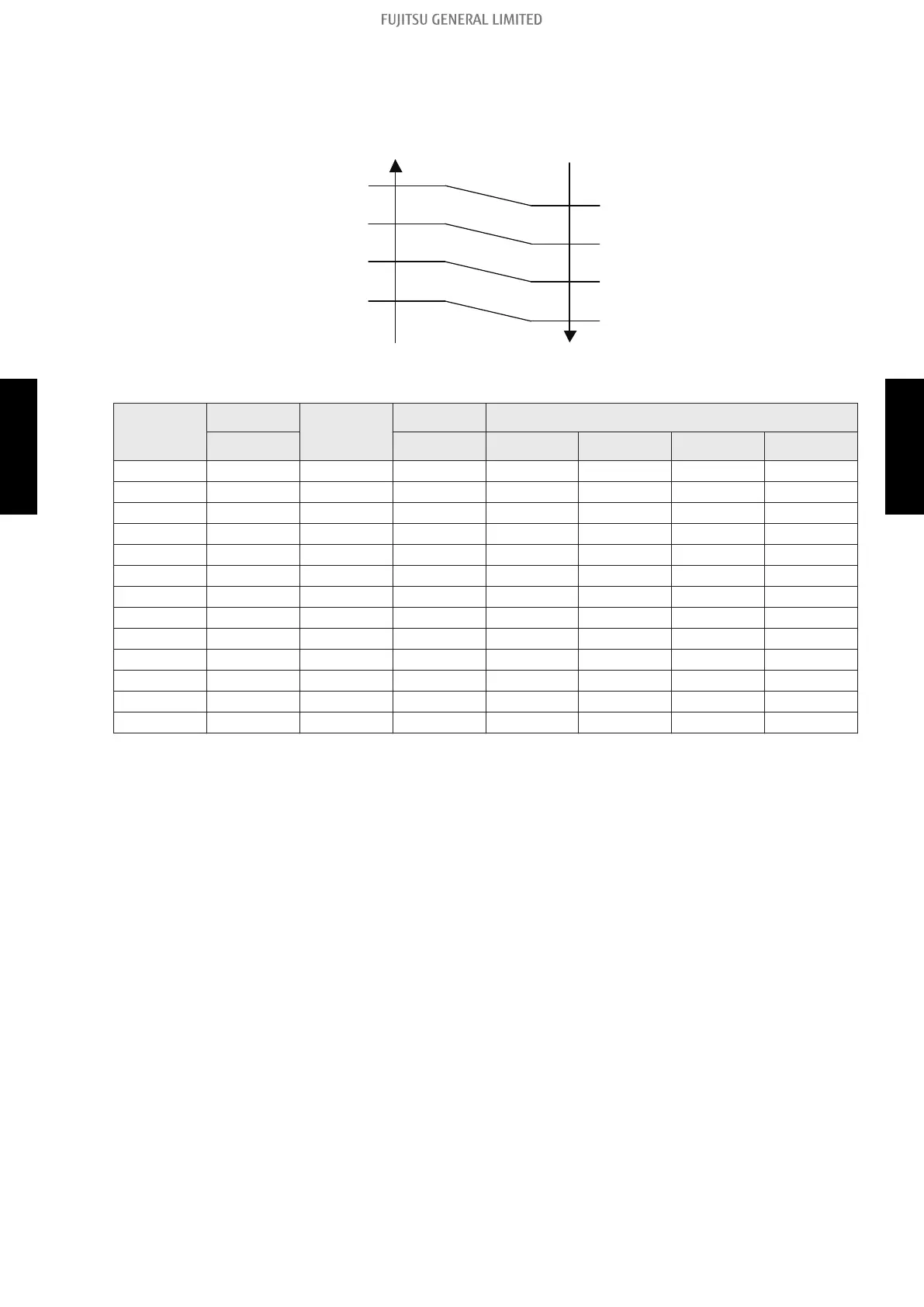

Fan speed is defined by outdoor temperature and compressor frequency.
• Outside air temperature zone selection
21°C
Outside air
temperature rises
Z zone
Y zone
F zone
G zone
Outside air
temperature drops
12
°C
2°C
-8°C
19°C
10°C
0°C
-10°C
H zone
Unit: rpm
Fan step
Cooling
Heating
Dry Cooling or dry at low outdoor temp.
Y zone Y zone Z zone F zone G zone H zone
S-HIGH2 — 1,100 — — — — —
S-HIGH1 1,000 1,100 — — — — —
HIGH 1,000 1,100 — — — — —
10 — 1,100 — — — — —
9 940 940 940 770 320 320 270
8 940 940 940 630 320 320 270
7 770 700 770 470 270 270 190
6 630 550 630 270 220 220 190
5 470 470 470 270 220 220 190
4 470 440 470 270 220 220 190
3 320 440 320 270 220 220 190
2 320 440 320 270 220 220 190
1 320 440 320 270 220 220 190
NOTE: After defrost control on the heating mode, the fan speed is kept higher regardless of the
compressor frequency.
Fan speed after defrost control: 1,100 rpm
