Fujitsu AOYG30LFT - Page 20

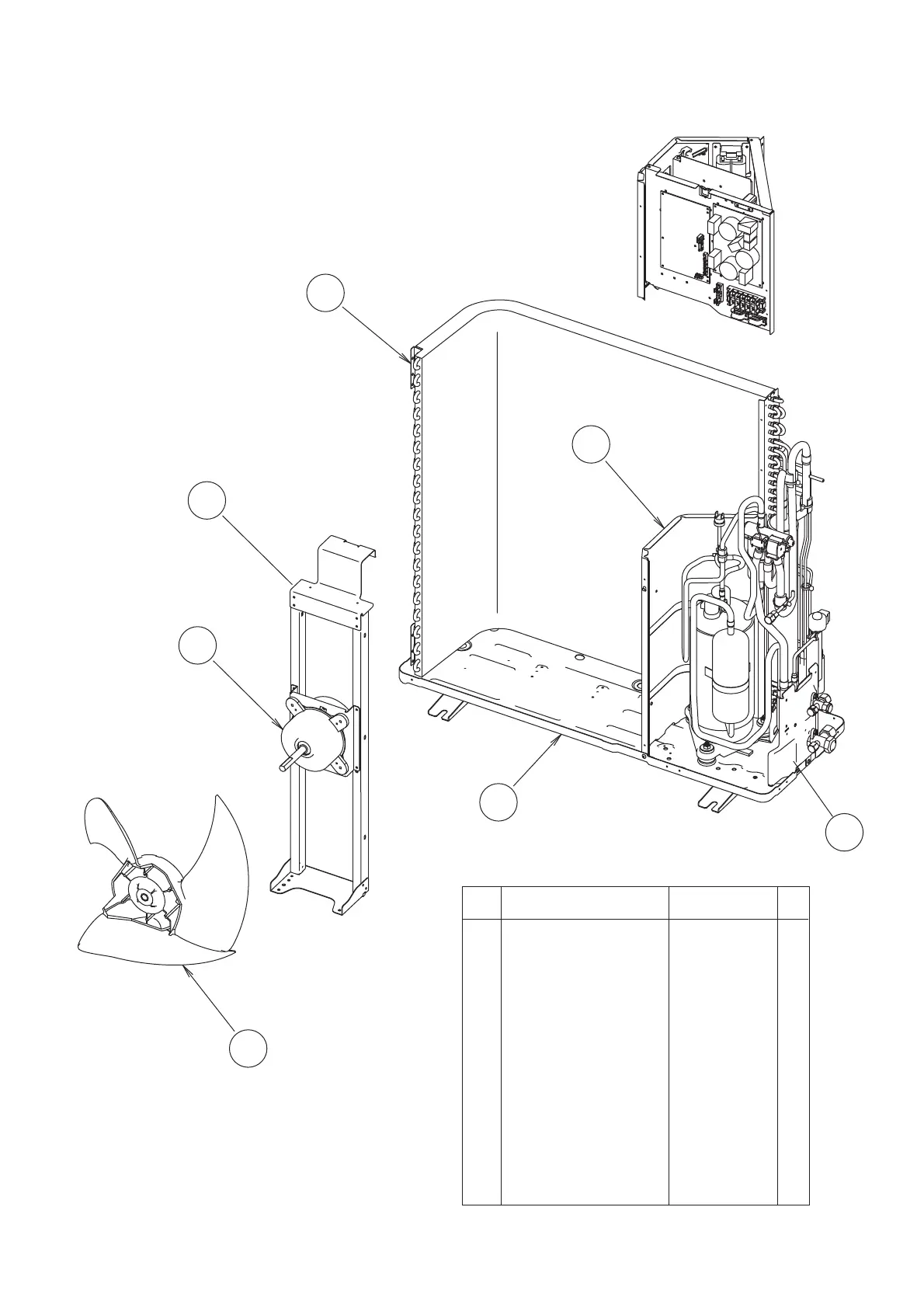

OUTDOOR UNIT
2011.01.31 19
15
14
16
13
12
11
17
14 Motor Bracket Sub Assy 9374418152
16 Propeller Fan Assy 9366378020
17 Valve Plate 9374099030
15 Fan Motor 9602843015
-- Compressor Cover B 9378851016
-- Compressor Cover C 9378851023
-- Compressor Cover A 9378851177
13 Condenser A Assy 9374433056
12
Separate Wall Sub Assy 9374413188
11 Base Assy 9374166138
Ref. Part numberDescription
