OUTDOOR UNIT
2012.12.19 21
52
53
54
49
47
44
46
50
45
51
43
42
48
41
Connector : Blue
Connector : Orange
Connector : Green
Connector : Red

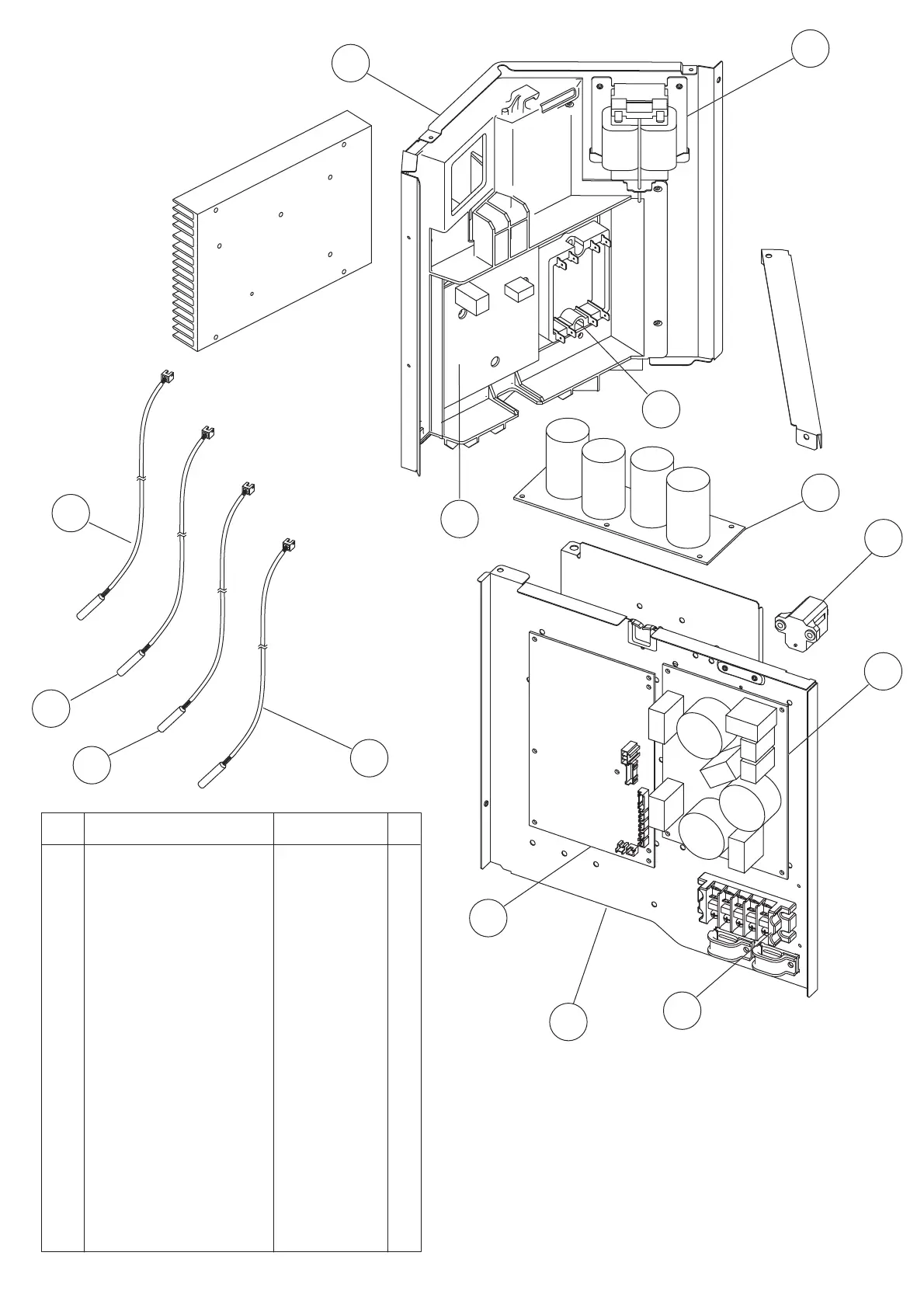

41 PCB Case Assy 9375316020
42 Inverter Case 9375314019
43 ACTPM 9707592016
44 Thermistor 9704265012
45 Controller PCB Assy 9707667813
46 Power Supply PCB Assy 9707128208
47 Capacitor PCB Assy 9707257045
48 Transistor PCB Assy 9707669060
49 Choke Coil 9900223014
50 Terminal 9900203023
51 Discharge Thermistor 9900461003
52 Outdoor Thermistor 9900463007
53 Compressor Thermistor 9900466015
54
Heat Exchanger Thermistor
9900462000
Ref. Part numberDescription
To Next Page
