Fujitsu AOYG36KATA - Model: AOYG22 KATA; Model: AOYG24 KATA

113 pages

To Next Page

To Previous Page

5-2. Model: AOYG22KATA

5-3. Model: AOYG24KATA

- 79 -

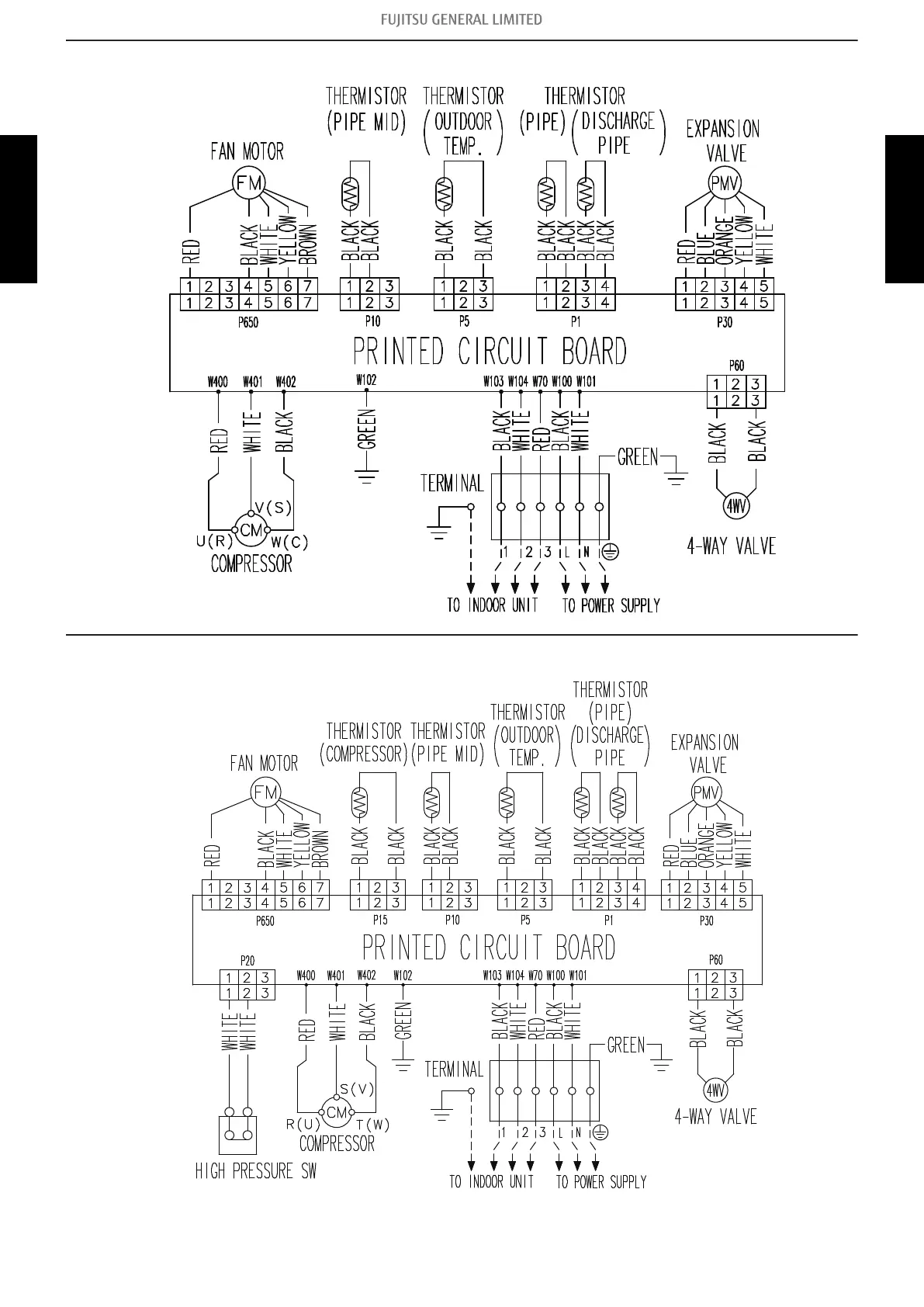

5-2. Model: AOYG22KATA 5. Wiring diagrams

OUTDOOR UNIT

AOYG18-45KATA

OUTDOOR UNIT

AOYG18-45KATA

Main Page

Table of Contents3
Part 1. INDOOR UNIT7
Specifications8
Dimensions14
Models: ABYG18KRTA and ABYG22KRTA14
Models: ABYG24KRTA and ABYG30KRTA15
Models: ABYG36KRTA and ABYG45KRTA16
Installation Space Requirement17
Wiring Diagrams18
Models: ABYG18KRTA, ABYG22KRTA, ABYG24KRTA, and ABYG30KRTA18
Models: ABYG36KRTA and ABYG45KRTA19
Capacity Table20
Cooling Capacity20
Heating Capacity22
Fan Performance24
Air Velocity and Temperature Distributions24
Airflow30
Fresh Air Characteristics36
Operation Noise (Sound Pressure)39
Noise Level Curve39
Sound Level Check Point42
Safety Devices43
External Input and Output44
External Input44
External Output46
Combination of External Input and Output47
Details of Function49
Group Connection55
Function Settings56
10-1.Function Settings by Using Remote Controller56
Accessories61
11-1.Models: ABYG18KRTA and ABYG22KRTA61
11-2.Models: ABYG24KRTA, ABYG30KRTA, ABYG36KRTA, and ABYG45KRTA62
Optional Parts63
12-1.Controllers63
12-2.Others64
Part 2. OUTDOOR UNIT67
Specifications68
Dimensions70
Model: AOYG18KATA70
Models: AOYG22KATA and AOYG24KATA71
Models: AOYG30KATA and AOYG36KATA72
Model: AOYG45KATA73
Installation Space74
Models: AOYG18KATA, AOYG22KATA, and AOYG24KATA74
Models: AOYG30KATA, AOYG36KATA, and AOYG45KATA77
Refrigerant Circuit80
Model: AOYG18KATA80
Model: AOYG22KATA81
Model: AOYG24KATA82
Models: AOYG30KATA, AOYG36KATA, and AOYG45KATA83
Wiring Diagrams84
Model: AOYG18KATA84
Model: AOYG22KATA85
Model: AOYG24KATA85
Models: AOYG30KATA and AOYG36KATA86
Model: AOYG45KATA87
Capacity Compensation Rate for Pipe Length and Height Difference88
Model: AOYG18KATA88
Model: AOYG22KATA89
Model: AOYG24KATA90
Model: AOYG30KATA91
Model: AOYG36KATA92
Model: AOYG45KATA93
Additional Charge Calculation94
Model: AOYG18KATA94
Model: AOYG22KATA94
Model: AOYG24KATA94
Models: AOYG30KATA and AOYG36KATA94
Model: AOYG45KATA94
Airflow95
Model: AOYG18KATA95
Model: AOYG22KATA95
Model: AOYG24KATA95
Models: AOYG30KATA and AOYG36KATA96
Model: AOYG45KATA96
Operation Noise (Sound Pressure)97
Noise Level Curve97
Sound Level Check Point100
Electrical Characteristics101
Safety Devices102
External Input and Output (30-45 Models)103
12-1.External Input103
12-2.External Output105
Function Settings (30-45 Models)107
13-1.Control PCB and Switch Buttons Location107
13-2.Local Setting Procedure109
Accessories111
14-1.Models: AOYG18KATA, AOYG22KATA, and AOYG24KATA111
14-2.Models: AOYG30KATA, AOYG36KATA, and AOYG45KATA112
Optional Parts113
