432012.04.24
11
9
8
6
4
10
3
1
5
2
7

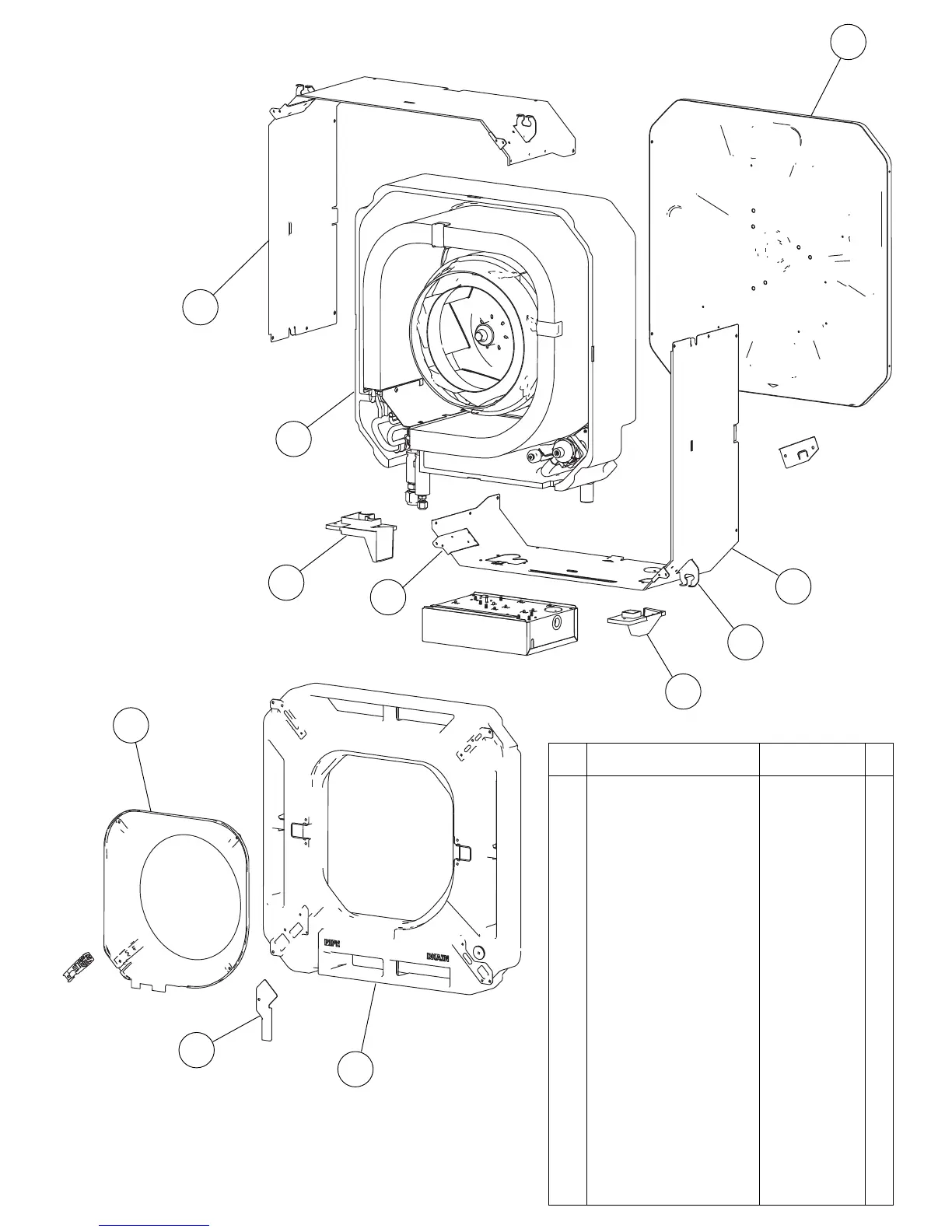

INDOOR UNIT
CASSETTE
AUYG18LVLB
AUYG22LVLA
AUYG24LVLA
2 Cabinet A Assy 9375492014
1 Top Plate Assy 9375490027
3 Cabinet B 9375494018
10 Wire Holder 9375478018
9 Bell Mouse 9375503017
11 Drain Pan Sub Assy (18) 9377765024
11
Drain Pan Sub Assy (22, 24)
9377765017
7 Wire Cover 9375516017
8 Pipe Cover 9375515010
4 Hook R 9375504014
5 Hook L 9375505011
6 Insulation Box Assy (18) 9377764065
6
Insulation Box Assy (22, 24)
9377764058
Ref. Description Part number
