Fujitsu AOYG36LATT - Page 58

11
10
9
4
6
1
8
7
2
3
5

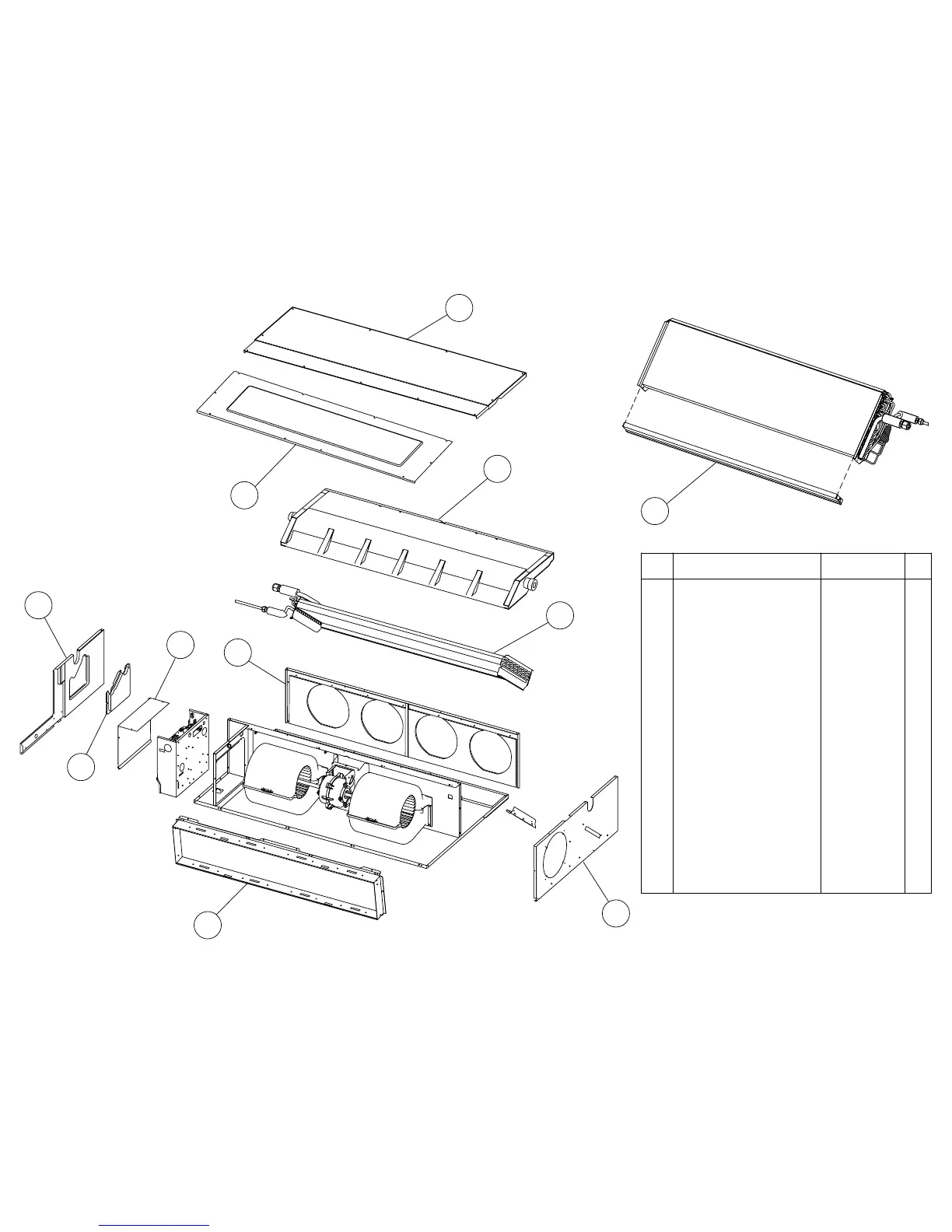

INDOOR UNIT
DUCT
ARYG22LMLA
ARYG24LMLA
2012.04.25 57
11 Control Cover A Sub Assy
8 Cabinet L Sub Assy
9 Cabinet R Sub Assy
1 Intake Cover Sub Assy
6 Outlet Panel Sub Assy
4 Evaporator Total Assy
3 Drain Pan Sub Assy
2 Main Panel Sub Assy
7 Intake Frame Assy
Ref. Description Part number
9374516025
9374509010
9374508013
9374512010
9374510016
5 Seal Panel Sub Assy
10 Bracket Pipe Sub Assy
9374515011
9374514014
9374517268
9374513017
9374511013
9374216017
