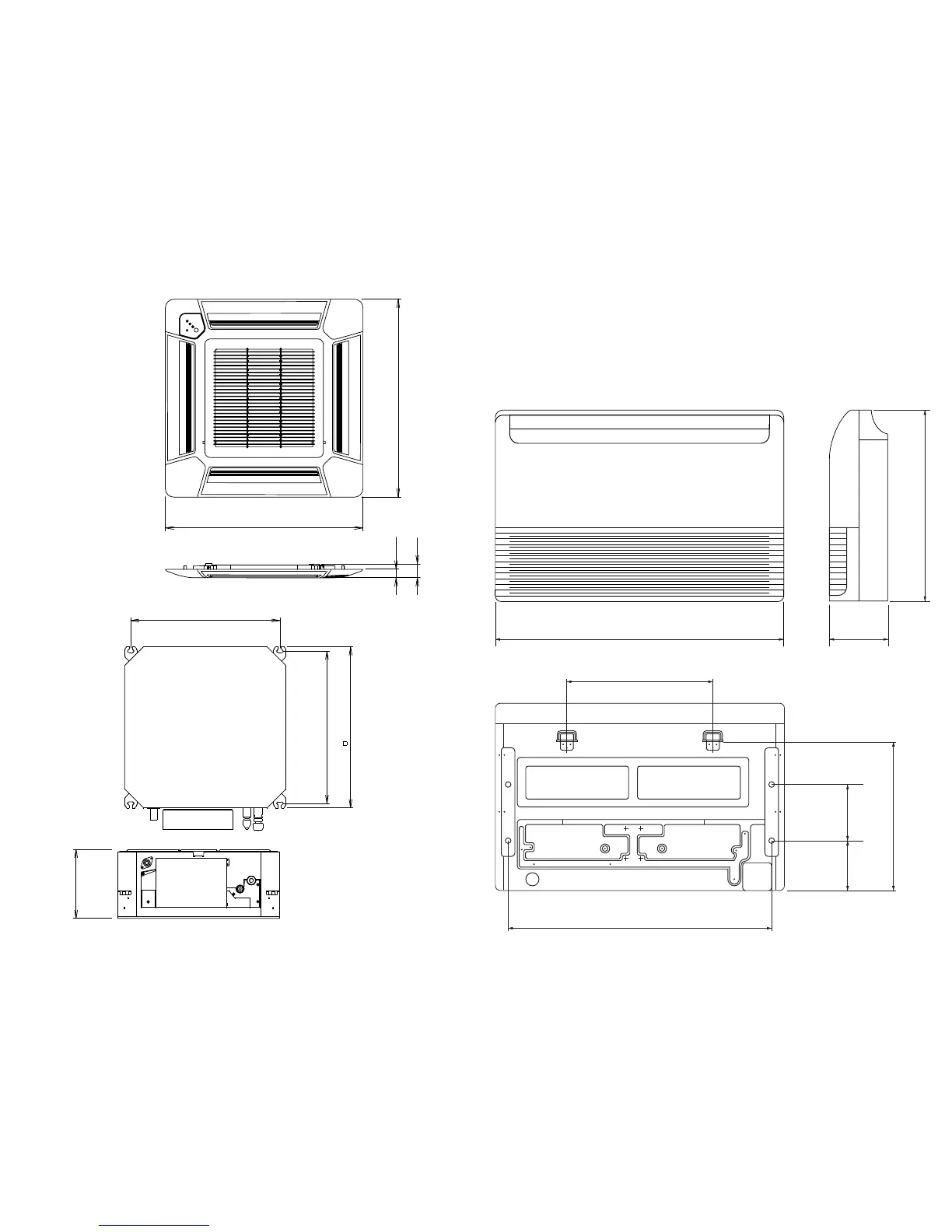

INDOOR UNIT
CASSETTE
AUYG18LVLB
AUYG22LVLA
AUYG24LVLA
Unit : mm
DECORATION
PANEL
700
30 49
700
570
245
INDOOR
UNIT
Top view
Side view
530
(
Hanging bolt position
)
540
(
Hanging bolt position
)
INDOOR UNIT
CEILING
ABYG18LVTB
ABYG22LVTA
ABYG24LVTA
Unit : mm
990
900
500
655
530
200175
199
