2013.02.12 2
Top view
699 (Hanging bolt position)
890 (Ceiling opening measurement
795 (Hanging bolt position)
Bottom view
950 (Panel measurement)
Drain pipe
Drain pipe diameter
Inside : 20 mm
Outside : 26 mm
699
840

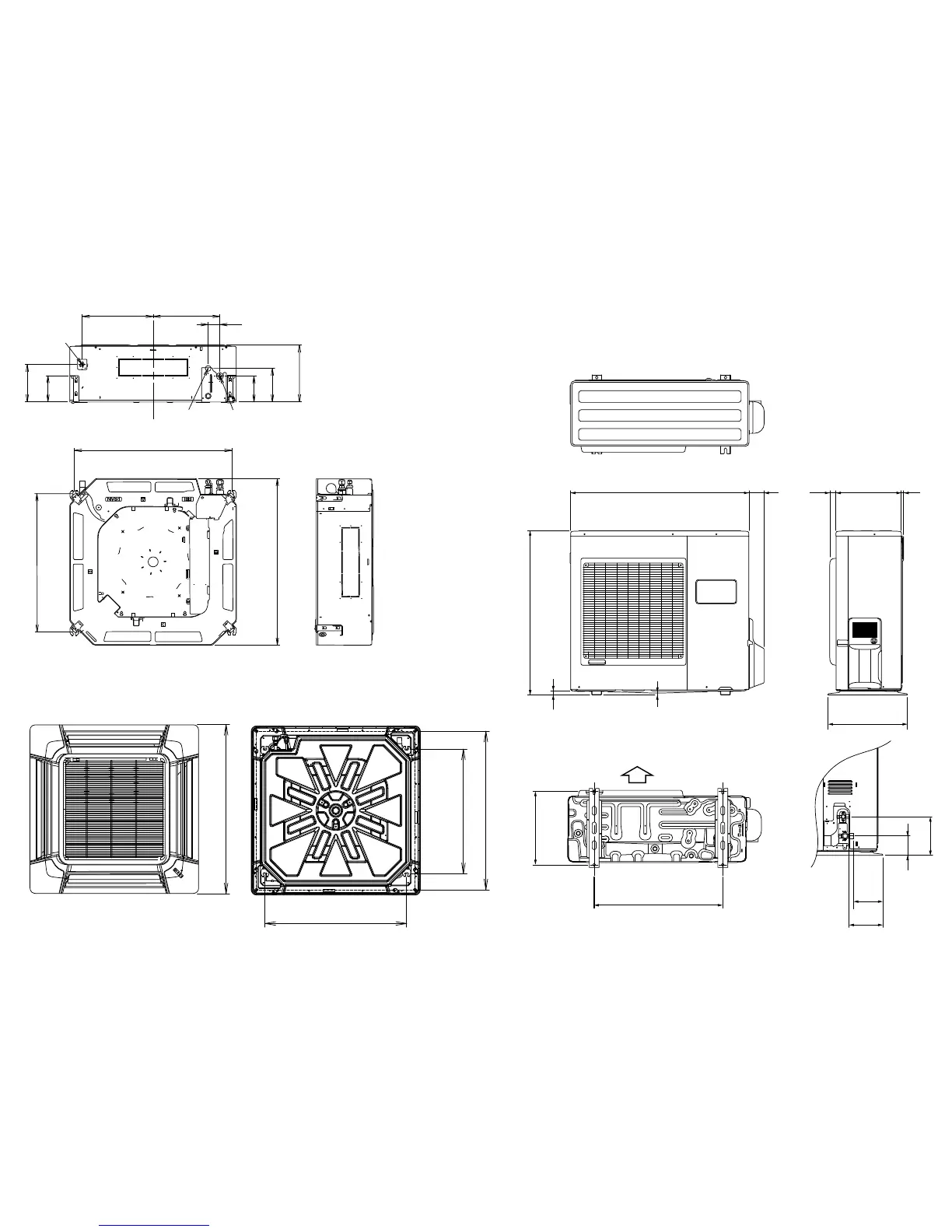

DIMENSIONS
(Unit : mm)
INDOOR UNIT
DECORATION PANEL
Bottom view
Liquid pipe
Gas pipe
288
358
795
338
60
130
170
133
190
OUTDOOR UNIT
77900
830
21
9
400
33031 12
196
147
170
99
370
650
Air Flow
