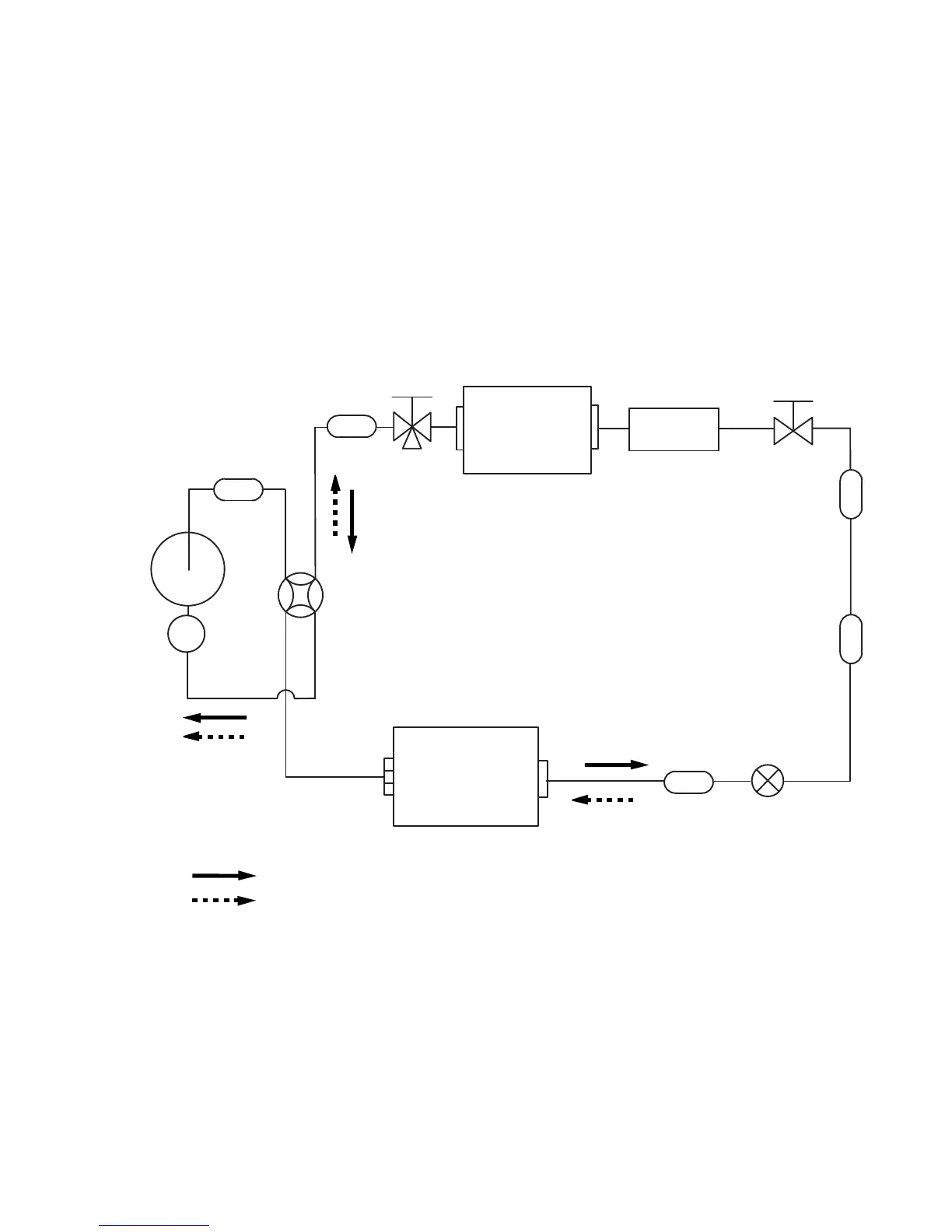

REFRIGERANT
SYSTEM DIAGRAM
Liquid pipe : 6.35 mm
Gas pipe : 12.7 mm
2-Way Valve
Strainer
Strainer
Muffler
Muffler
Receiver
Heat exchanger B
( INDOOR )
3-Way Valve
4-Way Valve
Pulse motor valve
Heat exchanger
( INDOOR )
Heat exchanger
( OUTDOOR )
Accumulator
Compressor
Cooling
Heating
2005.12.26 3
