Fujitsu ARG45UUAN

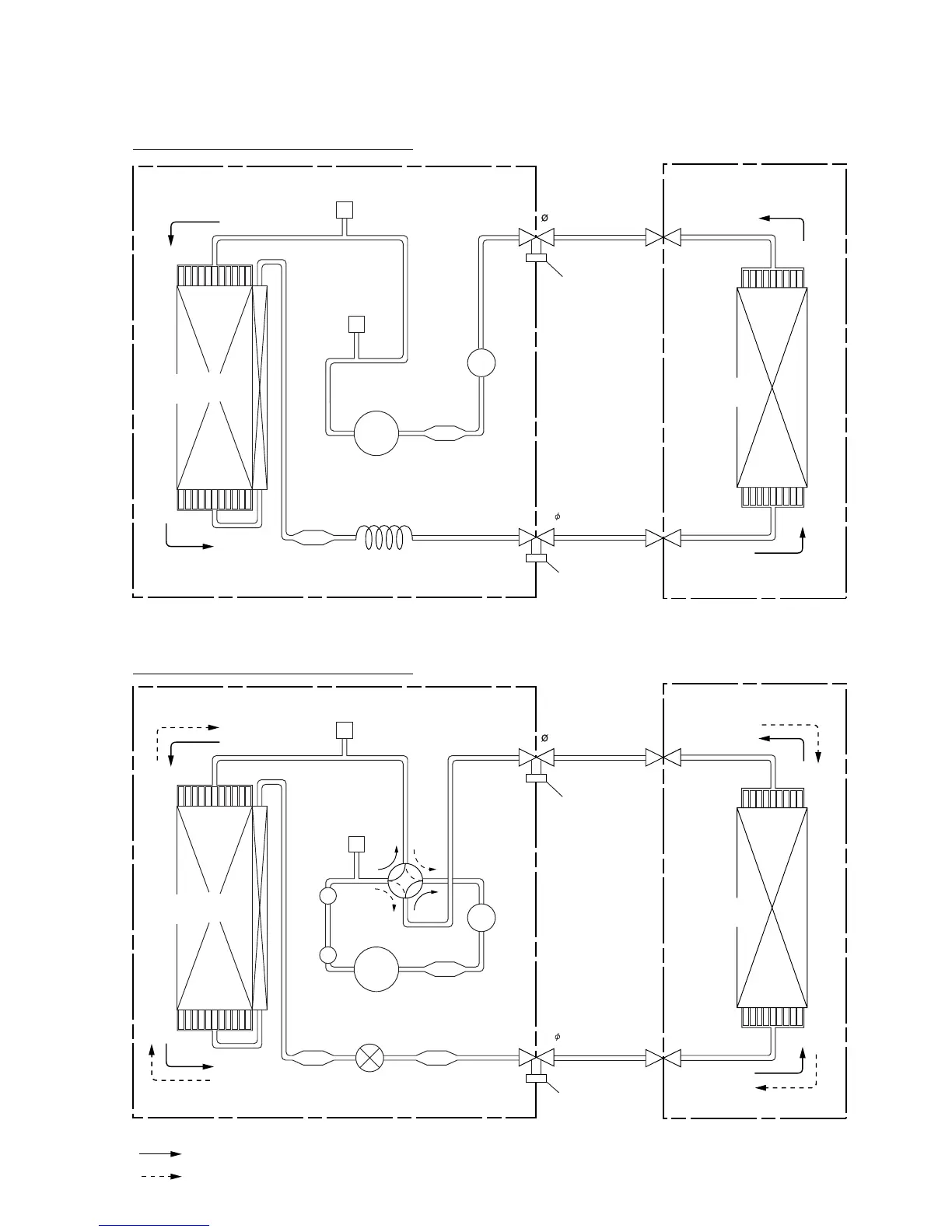

REFRIGERANT SYSTEM DIAGRAM
Models : ARG45FUAN / AOG45FMAXT
ARY45FUAN / AOY45FMAXT
Models : ARG45UUAN / AOG45FMAXT
ARY45UUAN / AOY45FMAXT
2005.12.06 5
: COOL
: HEAT
Refrigerant Pipe
19.05mm (3/4")
Refrigerant pipe
9.52mm (3/8")
INDOOR UNIT
Charging
Valve
Charging Valve
OUTDOOR UNIT
Compressor
Strainer
Strainer
Expansion Valve
Strainer
Condenser
4-way
Valve
Muffler x 2
Pressure
Check Valve
High
Pressure
Switch
Accumulator
Refrigerant Pipe
19.05mm (3/4")
Refrigerant pipe
9.52mm (3/8")
INDOOR UNIT
Evaporator
Charging
Valve
Charging Valve
OUTDOOR UNIT
Compressor
Strainer
Strainer
Condenser
Pressure
Check Valve
High
Pressure
Switch
Evaporator
Accumulator
Cappillary Tube
