Models: ASU18RLF and ASU24RLF
39-5/16 (998)
17-1/4 (438)
15-5/8 (397)
12-5/8 (320): Unit size
2 (51)
2 (51)
13/16 (20)
2-5/8 (67)1-1/8 (28)
35-9/16 (903)
Ø 3-1/8 (80) hole
39-5/16 (998): Unit size

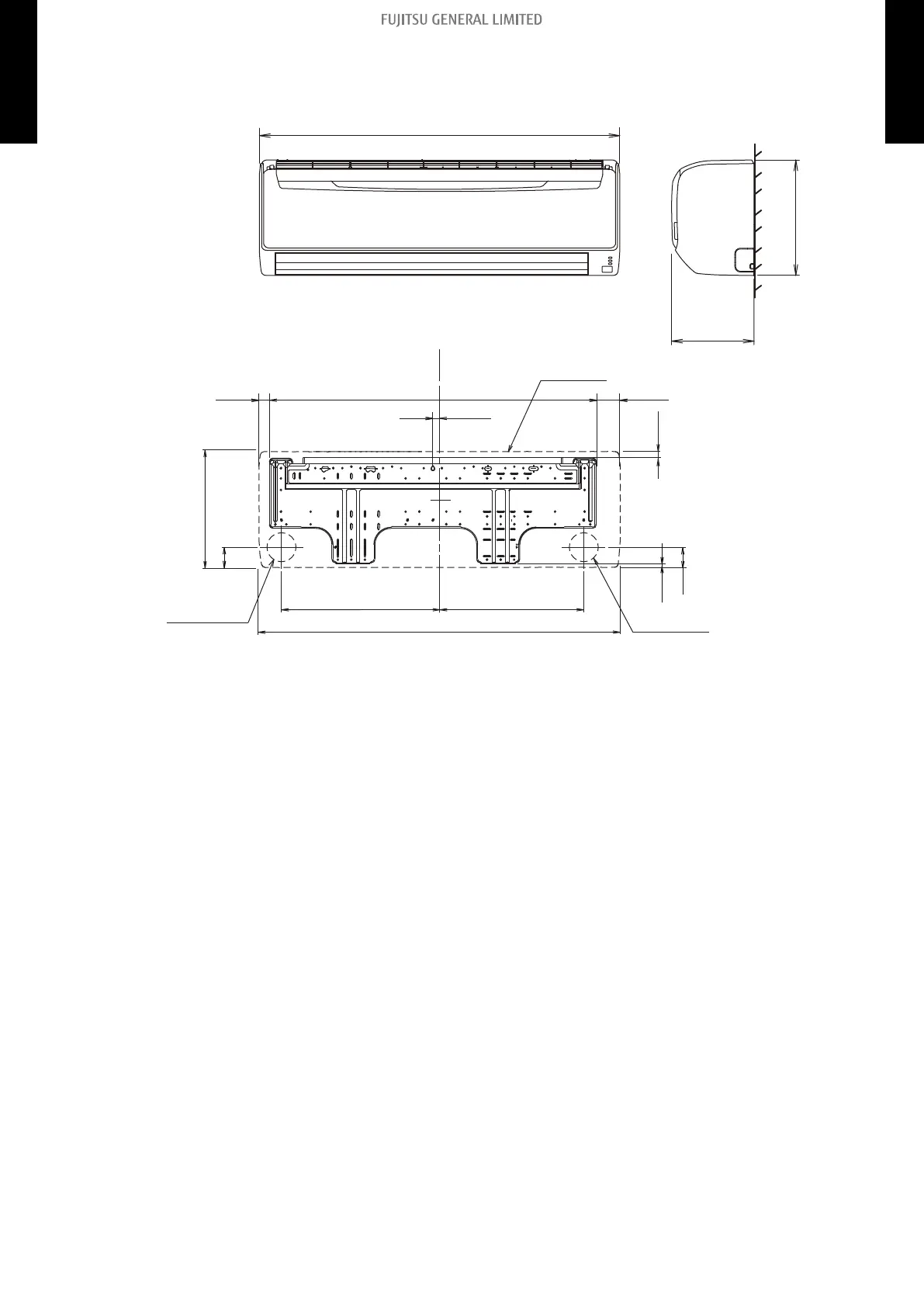

Outline of unit
Piping inlet
Unit center
9 (228)
12-5/8 (320)
Ø 3-1/8 (80) hole
Piping inlet
11/16 (17)
7/16 (11)
Unit: in (mm)
- 27 -
3-3. Wall mounted type 3. Dimensions
MULTI TYPE 2, 3, 4 ROOMS TYPE MULTI TYPE 2, 3, 4 ROOMS TYPE
