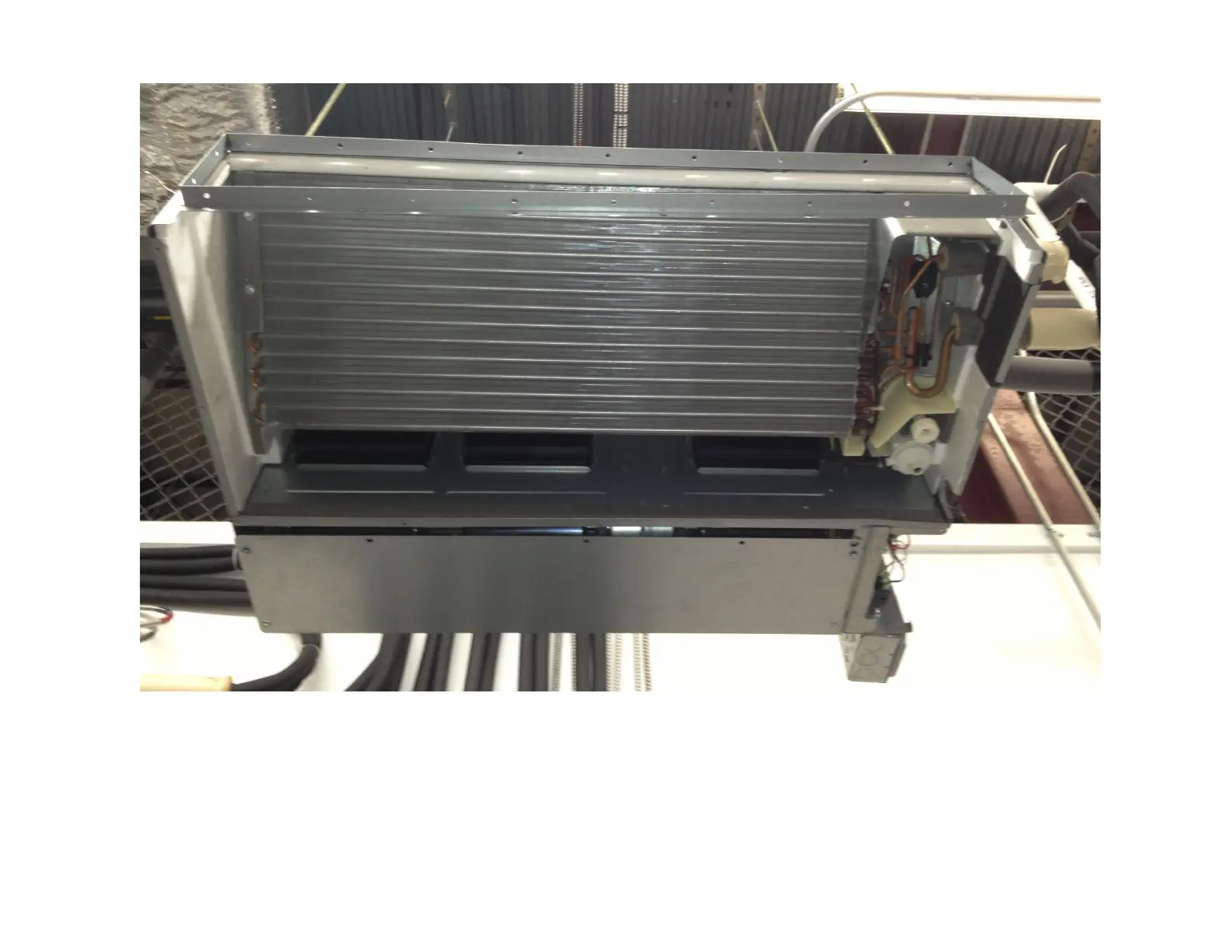

Once the foam drain pan has been removed the coil, pump, and float switch should all be
exposed. You will now be able to remove and replace the pump or float switch if needed.
