Models: ASYG12–14KGTB, ASYG12–14KGTE, ASYG12–
14KGTF, ASYG14KMTB, ASYG14KMCC, ASYG14KMCE,
ASYG14KMCF, ASYG14KETA, ASYG14KETA-B, ASYG14KETE,
ASYG14KETE-B, ASYG14KETF, and ASYG14KETF-B

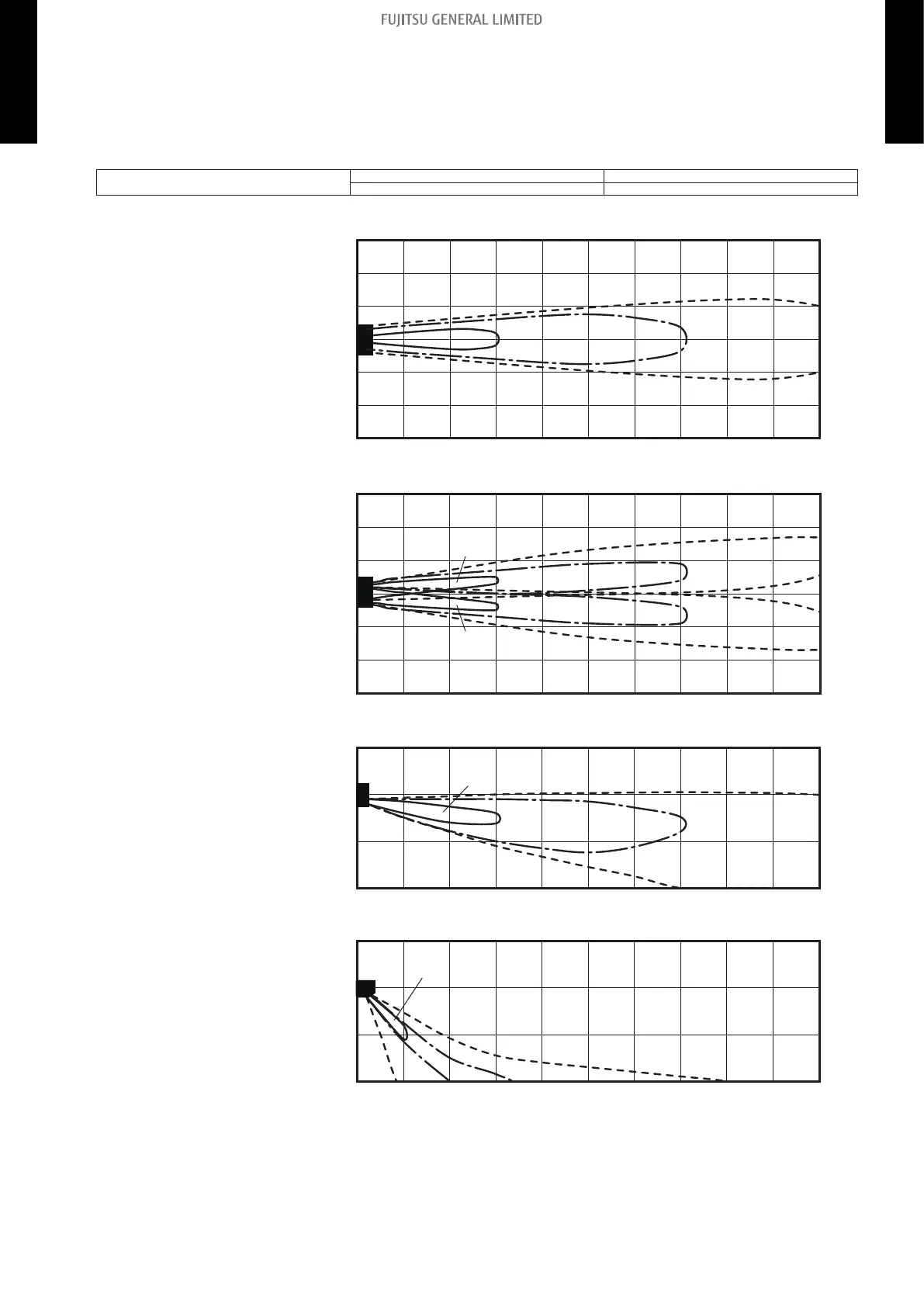

Measuring conditions
Fan speed Operation mode
HIGH FAN
Top view
Horizontal louver: Up
Vertical louver: Center
Unit: m/s
(m)
(m)
3
2
1
0
1
2
3
0 1 2 3 4 5 6 7 8 9 10
0.52.0 1.0
Top view
Horizontal louver: Up
Vertical louver: Left & Right
1.0
1.0
0.5
0.5
2.0
2.0
Unit: m/s
(m)
(m)
3
2
1
0
1
2
3
0 1 2 3 4 5 6 7 8 9 10
Side view
Horizontal louver: Up
Vertical louver: Center
2.0
0.5
1.0
(m)
(m)
3
2
1
0
0 1 2 3 4 5 6 7 8 9 10
Unit: m/s
Side view
Horizontal louver: Down
Vertical louver: Center
0.50.5
2.0
1.0
(m)
(m)
3
2
1
0
0 1 2 3 4 5 6 7 8 9 10
Unit: m/s
- 114 -
6-4. Wall mounted type
6. Air velocity and temperature distributions
4-5 UNIT
MULTI-SPLIT TYPE
4-5 UNIT
MULTI-SPLIT TYPE
