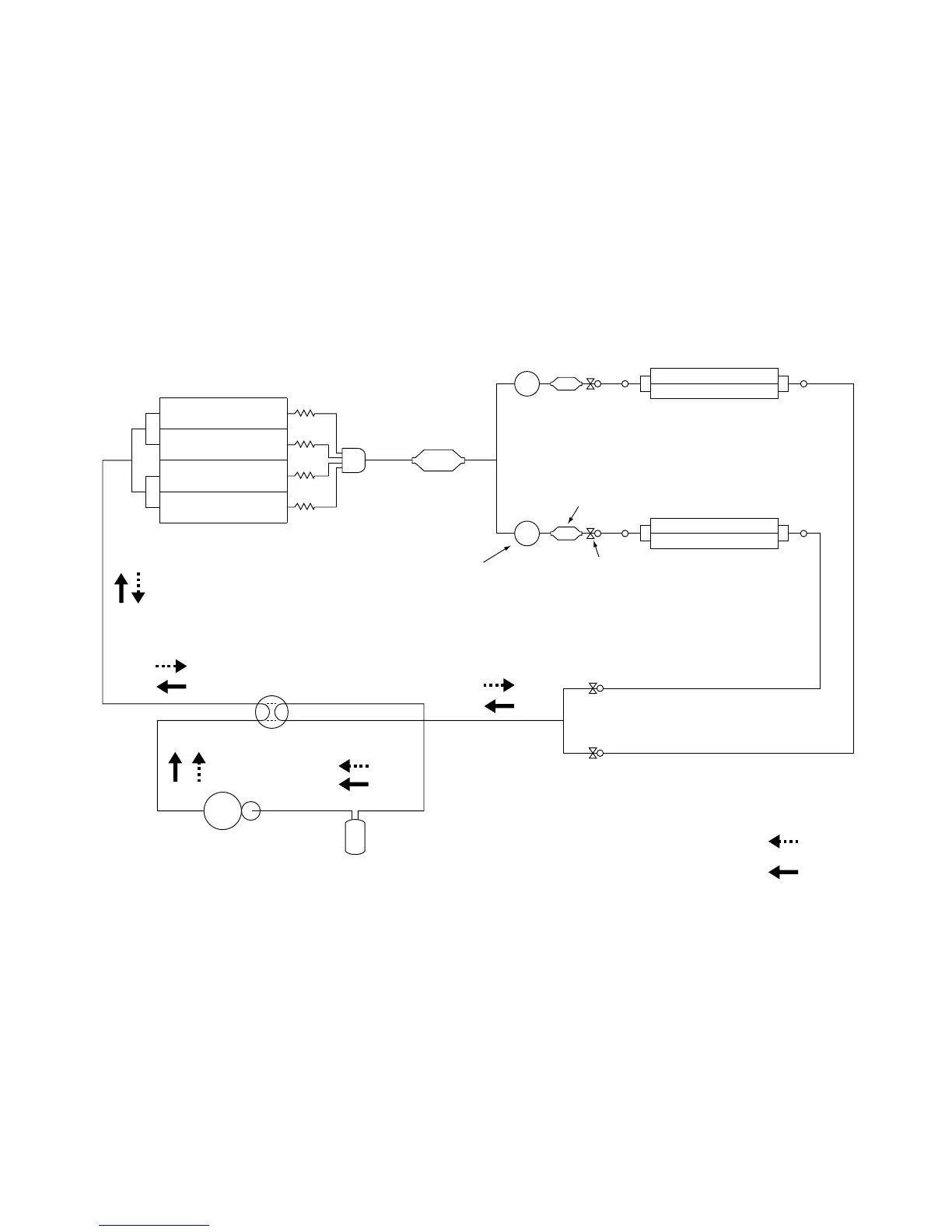

REFRIGERANT SYSTEM DIAGRAM
5
2005.08.18
A Unit
B Unit
heat exchanger
(Indoor)
heat exchanger
(Outdoor)
3-way
valve
2-way
valve
accumulator
compresser
4-way valve
COMP
electric
expansion
valve
strainer
strainer
receiver tank
EVA
EVB
HEAT
COOL
