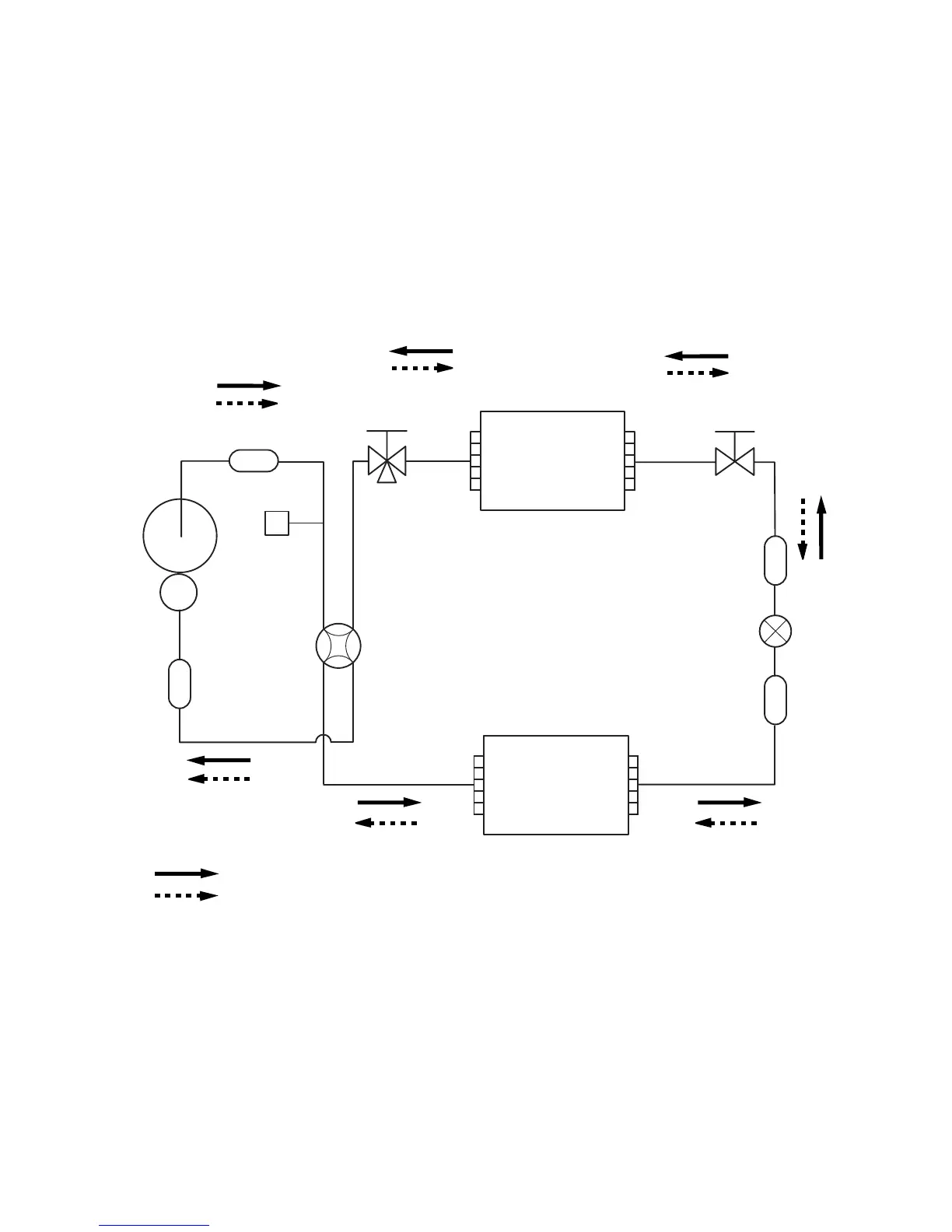

REFRIGERANT SYSTEM DIAGRAM
3-Way valve
(Small)
3-Way valve
(Large)
Strainer
Strainer
Muffler
Pressure
switch
4-Way valve
Expansion valve
Heat exchanger
( Indoor unit )
Heat exchanger
( Outdoor unit )
Sub-accumulator
Compressor
Refrigerant pipe diameter
Liquid : 3/8" (9.52 mm)
Gas : 5/8" (15.88 mm)
Cooling
Heating
2006.08.21 4
