Fujitsu ASU12RLF Service Instruction
5
of 1
of 1 rating
105 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
ACTPM
Compressor
4-way valve
4-way valve
3-1 AOU18/ 24RLXFZ

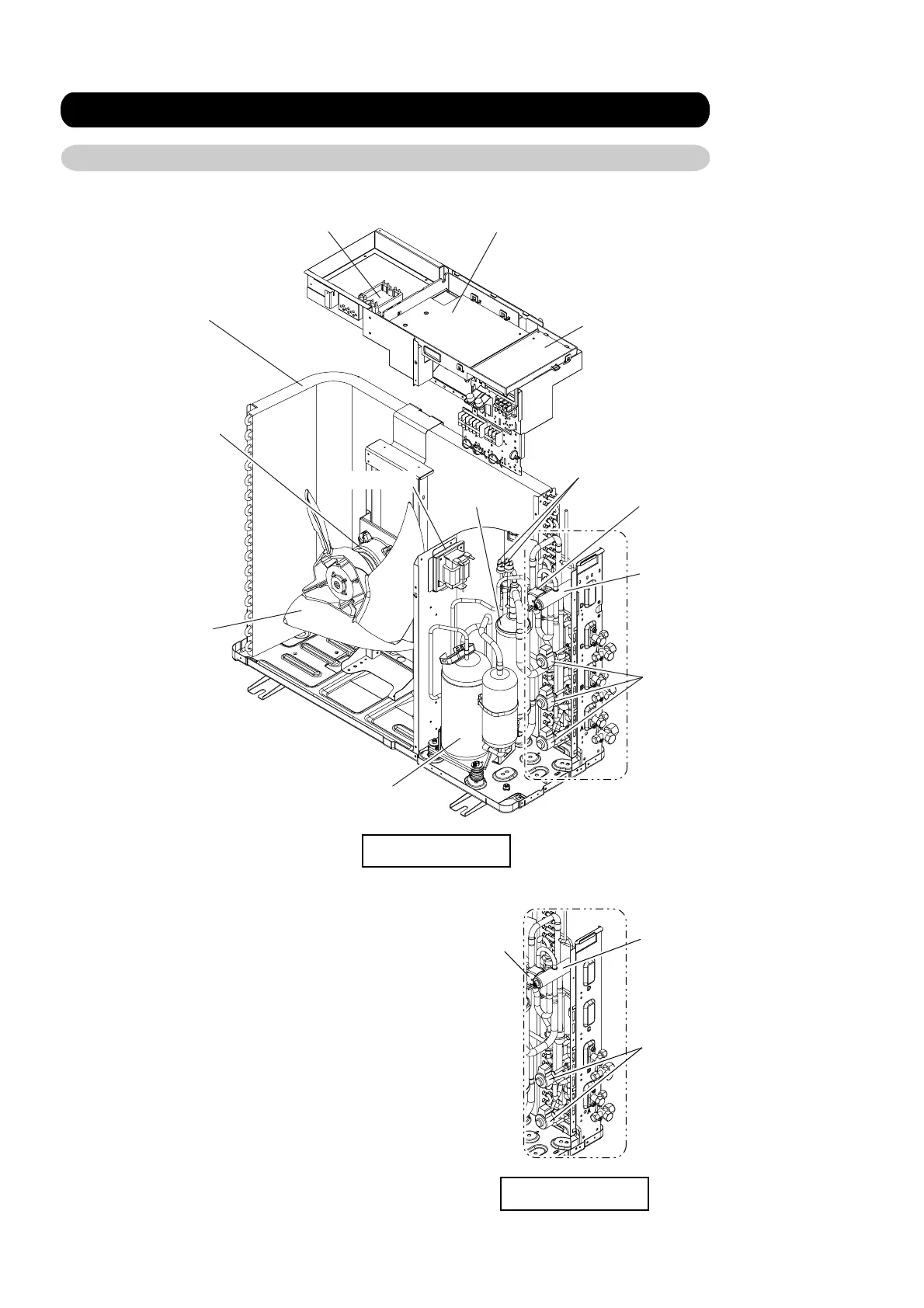

3-1-1 PARTS LAYOUT DRAWING
03-01
Motor DC Brushless
Propeller Fan assy
Condenser
A
assy
Coil (Expansion valve)&
Expansion valve
Coil (Expansion valve)&
Expansion valve
Solenoid
Solenoid
Pressure SW
Choke Coil
Accumulator
Main PCB
Filter PCB
AOU24RLXFZ
AOU18RLXFZ
80
82
Table of Contents
Table of Contents
2
Description of each Control Operation
3
Capacity Control
4
Auto Changeover Operation
4
Indoor Fan Control
6
Louver Control
15
Outdoor Fan Control
20
Timer Operation Control
21
Compressor Control
24
Electronic Expansion Valve Control
25
Test Operation Control
25
Prevent to Restart for 3 Minutes ( 3 Minutes St )
25
Way Valve Extension Select
26
Auto Restart
26
Manual Auto Operation
26
Compressor Preheating
27
Powerful Operation
27
Fresh Air Control
28
External Electrical Heater Control
28
Drain Pump Operation
29
Defrost Operation Control
30
Various Protections
33
Trouble Shooting
35
Error Display
36
Indoor Unit Display
36
Wired Remote Controller Display
37
Outdoor Unit Display
38
Trouble Shooting with Error Code
39
Trouble Shooting with no Error Code
69
Service Parts Information
74
Replacement Parts
80
Other manuals for Fujitsu ASU12RLF
Service Manual
66 pages
Service Instructions
60 pages
Design & Technical Manual
319 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Fujitsu ASU12RLF and is the answer not in the manual?
