Fujitsu ASU12RLF Service Instruction

5. Main PCB removal
03-06
A
D
B
C

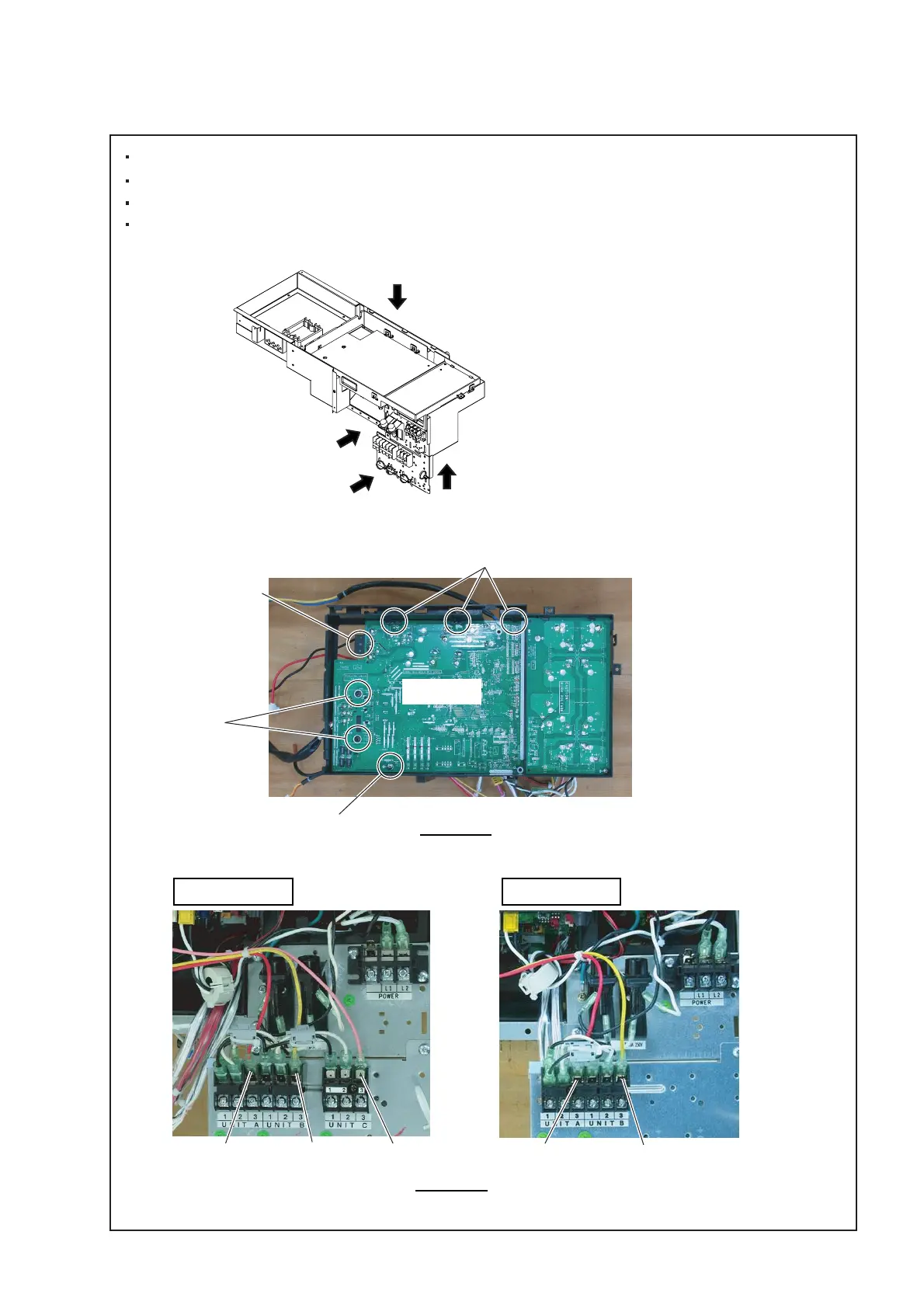

Remove the 4 mounting screws. (Refer to VIEW -A)
Remove the wires from terminal. (Refer to VIEW -B)
Remove the wires. (Refer to VIEW -C, -D)
Remove the Main PCB.
Hook
Screw
Screw
(IPM)
Screw
(Diode Bridge)
VIEW - A
VIEW - B
Red Yellow Pink Red Yellow
AOU24RLXFZ AOU18RLXFZ
Main PCB
