Fujitsu ASU12RLF Service Instruction

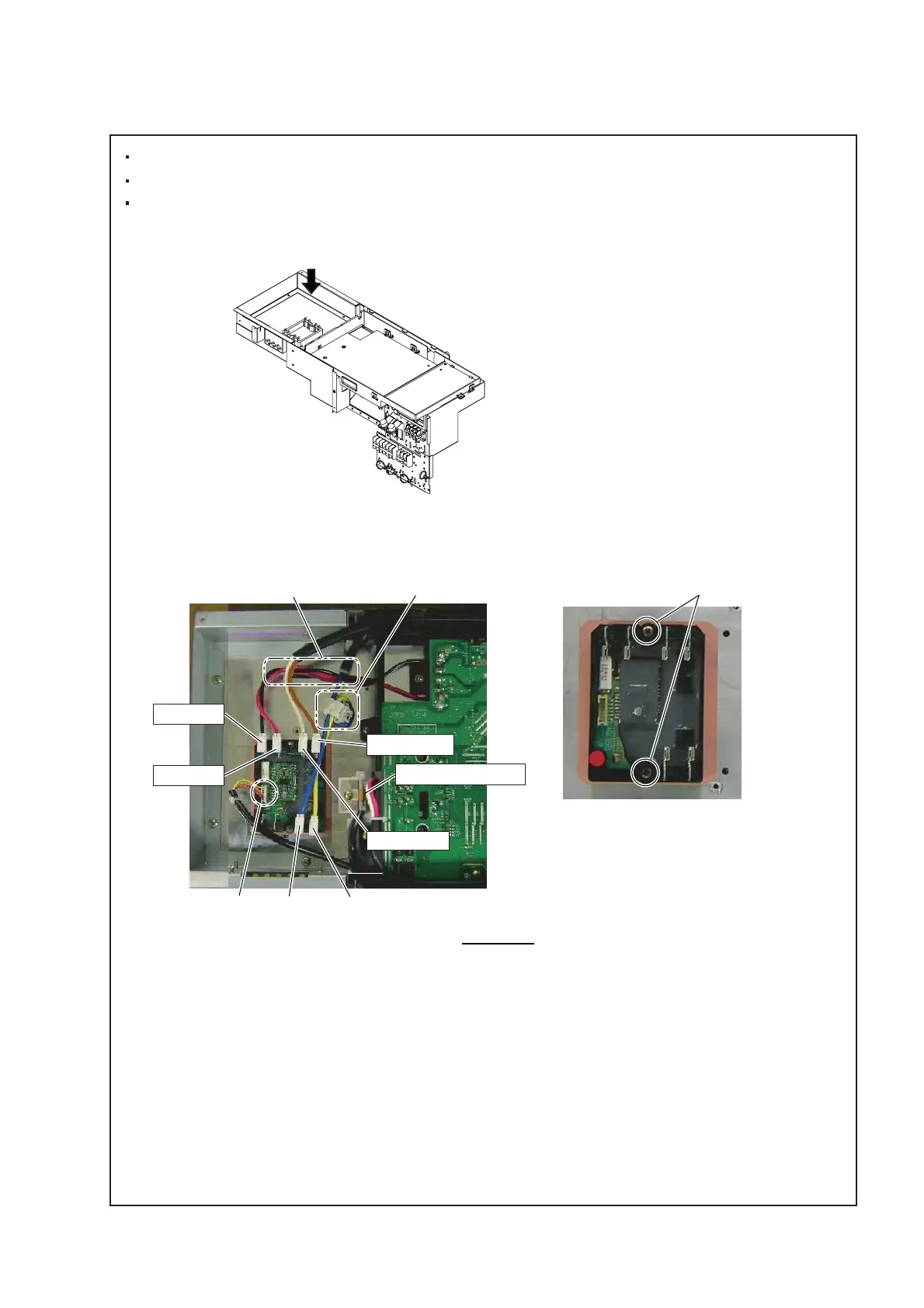

7. ACTPM removal
03-10
Remove the connectors and cords. (Refer to VIEW -F)
Remove the 2 mounting screws. (Refer to VIEW -F)
Remove the ACTPM (Active Filter Module).
VIEW - F
CN407
" P " (Yellow)
" N1 " (Blue)
" - " (Black)
" + " (Red)
" L1 " (White)
Twist 4 times or more 2 turn the Wire this way
" L2 " (Brown)
Thermistor (Heat sink)
Screw
Spread the heat dissipation compound
on the other side of ACTPM,
when you exchange ACTPM by the repair.
F
