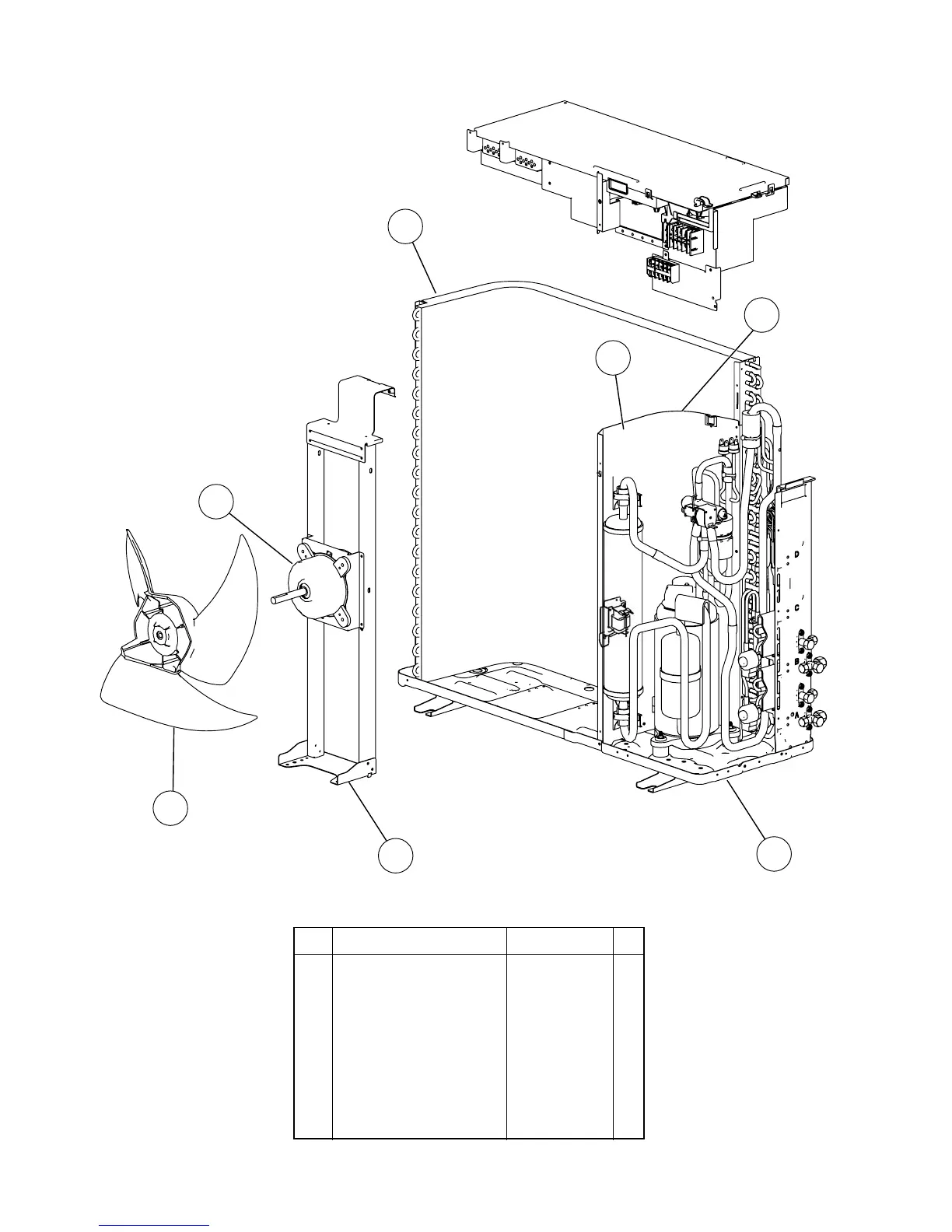

OUTDOOR
UNIT
14
17
13
15
10
11
12
22
2007.10.30
10
Motor
Bracket
Sub
Assy
11
Propeller
Fan
Assy
12
Motor.
DC
Brushless
13
Condenser
A
Assy
14
Separate
Wall
Assy
S
15
Base
Assy
17
Coil.
Choke
9374418091
9366378020
9602114016
9374433148
9375226015
9374166183
9900366018
Ref.
Description
Part
number
20
22
Table of Contents
Table of Contents
1
Air Conditioner
1
Wall Mounted
1
Specifications (Indoor Unit)
2
Specifications
3
Outline and Dimensions
5
Refrigerant System Diagram
7
Circuit Diagram
11
Indoor Pcb Circuit Diagram
12
Error Display
15
Error Contents
15
Disassembly Illustration
17
Parts List
19
