Mode
Function
setting
Rotary
SW
External output
Indoor unit External Input and Output PCB
CN47
1
CN310
2
CN311
3
CN312
11 60-11 D
External heater
output
Operation/Stop
Indoor unit fan
operation status
Error status
NOTE:
Input of Operation/Stop depends on the setting of function setting 46.
00: Operation/Stop mode 1 (R.C. enabled)
01: (Setting prohibited)
02: Forced stop
03: Operation/Stop mode 2 (R.C. disabled)
¢

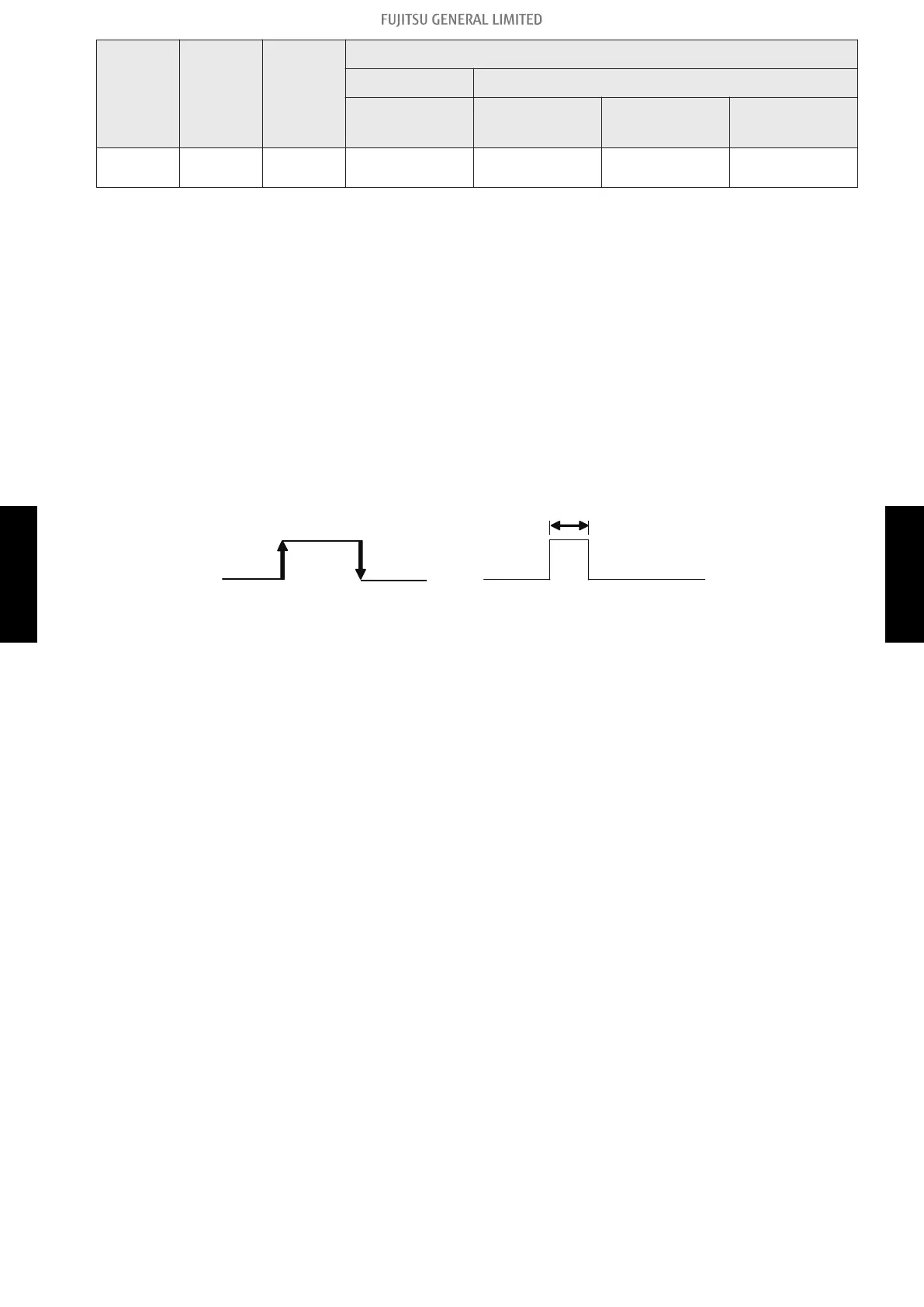

Input signal type
External Input and Output PCB:
The input signal type can be selected.
Signal type (edge or pulse) can be switched by the DIP switch SW302 on the External Input and
Output PCB.
Pulse
The width of pulse must be
longer than 200 msec.
Edge
2-3. Combination of external input and output - (05-17) - 2. External input and output
