Fujitsu AUXG07KVLA Service Manual

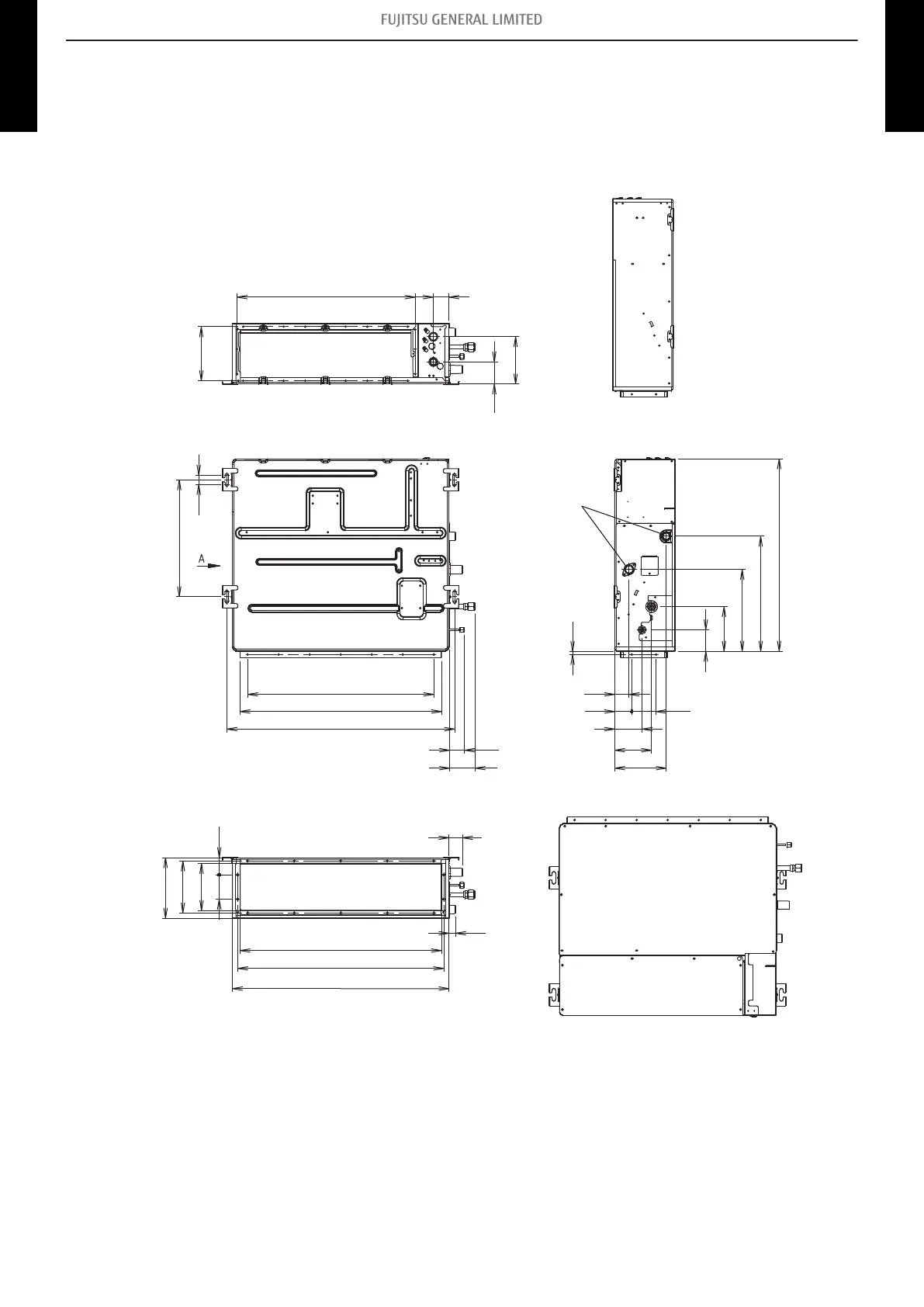

2-3. Slim duct type
¢
Models: ARXG07KLLAP, ARXG09KLLAP, ARXG12KLLAP, and
ARXG14KLLAP
Unit: mm
Rear view
View A
Top view
Side view
Front view
Bottom view
Drain port
51
574
174
71
152
100 x 6 = 600
82
48
650
734
30
377
167
119
89
78
55
47
10
620
371
264
144
69
650
664
700
43
20
198 168 151
78
55
2-3. Slim duct type - (01-28) - 2. Dimensions
