Fujitsu AUXG07KVLA Service Manual

¢
Models: ASHG07KETA, ASHG09KETA, ASHG12KETA,
ASHG14KETA, ASHG07KETA-B, ASHG09KETA-B,
ASHG12KETA-B, ASHG14KETA-B, ASHG07KETE,
ASHG09KETE, ASHG12KETE, ASHG14KETE, ASHG07KETE-B,
ASHG09KETE-B, ASHG12KETE-B, and ASHG14KETE-B
(950)

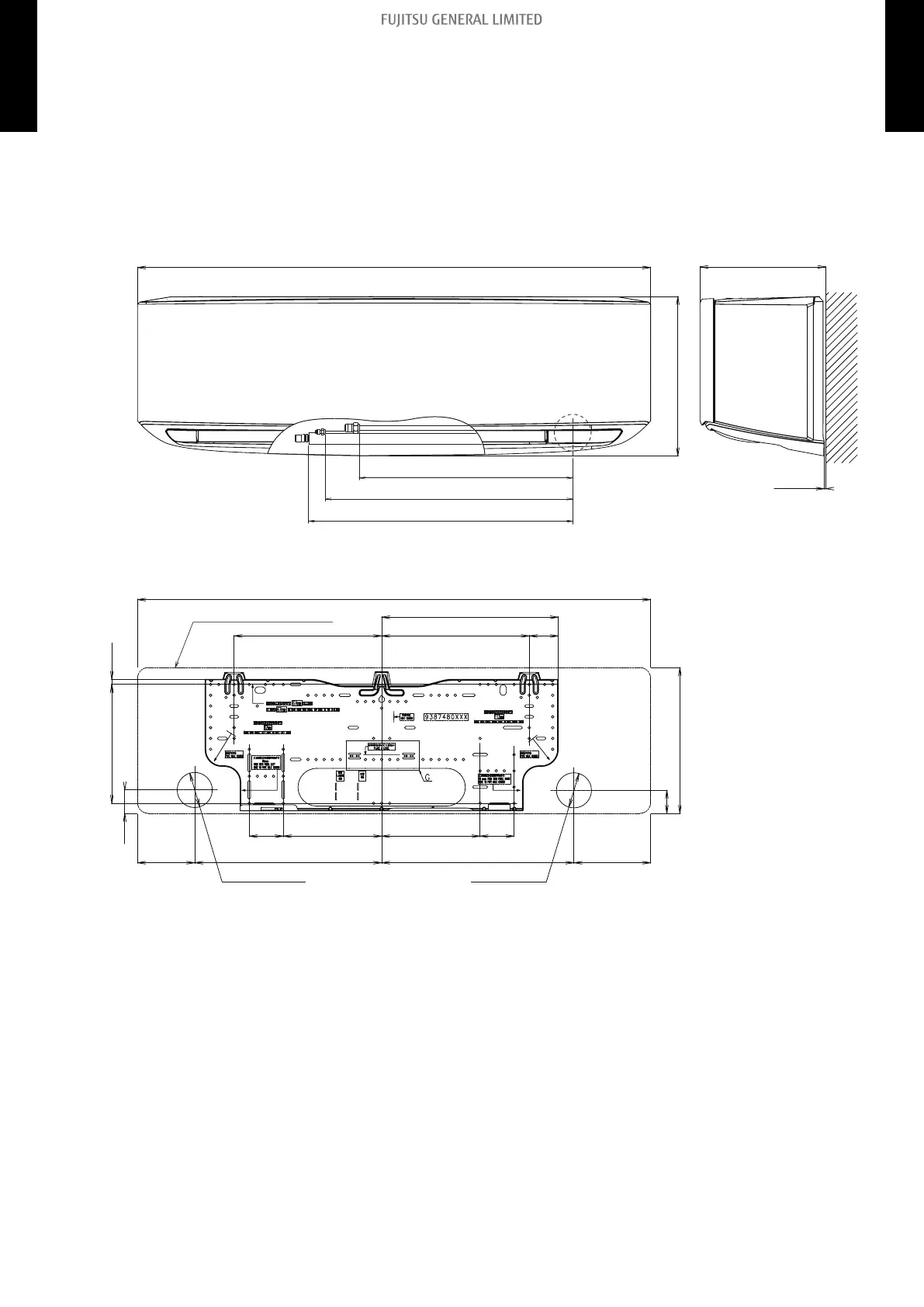

Outline of indoor unit
327
273273
54
(295)
43
43
9.5
220
for pipe inlet Ø65 for pipe inlet Ø65
182 182
356346106 142
63 63
950
295
230
3.0
Unit: mm
373.5
417.5
448
2-5. Wall mounted type
- (01-45) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

Fujitsu AUXG07KVLA Specifications

General

Brand	Fujitsu
Model	AUXG07KVLA
Category	Air Conditioner
Language	English
