31
34
33
37
38
39
35
32
36

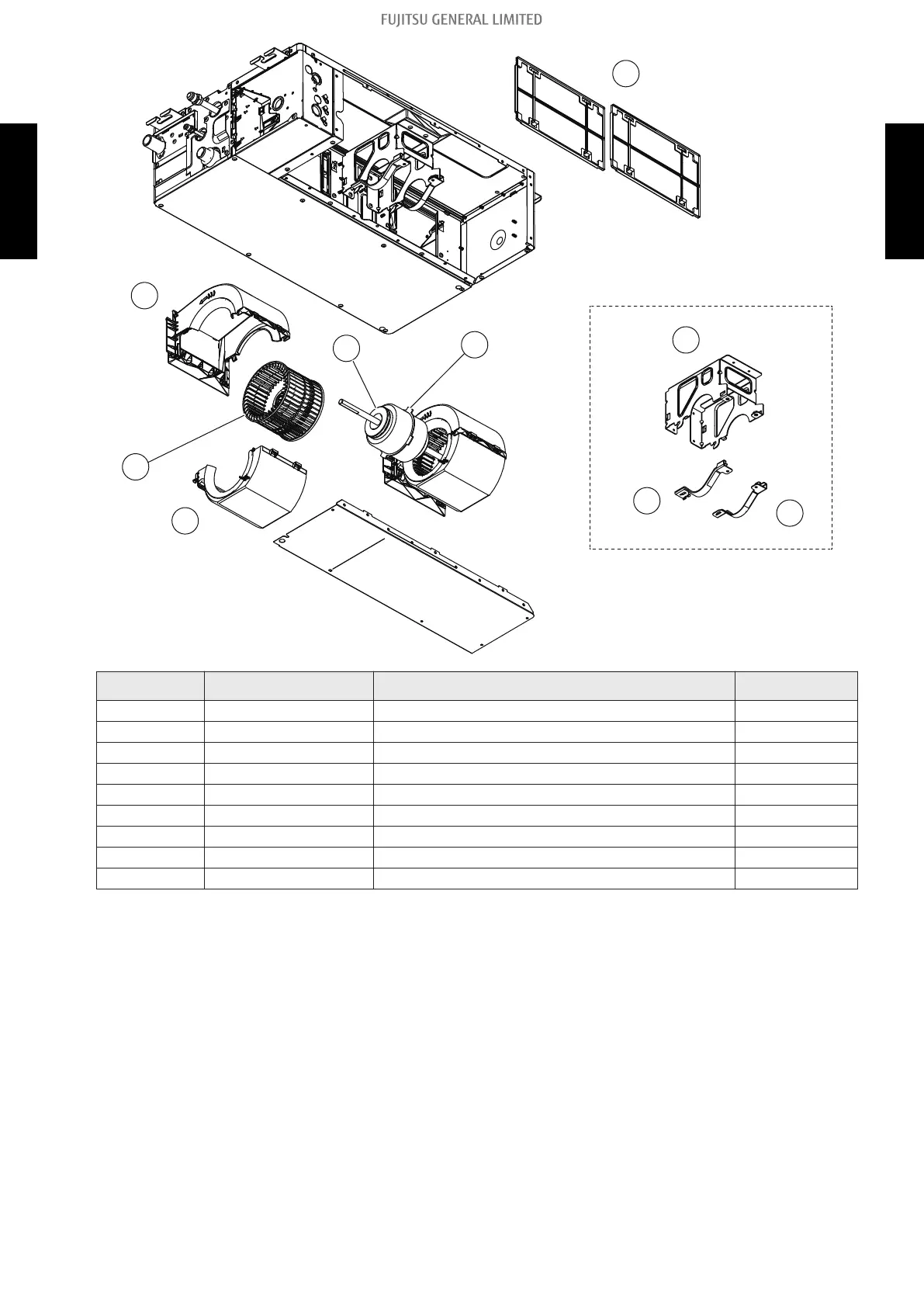

Item no. Part no. Part name Service part
31 9379570015 Sirocco fan assy ♦
32 9381673001 Rubber (Vibration proof) ♦
33 9381676002 Casing B ♦
34 9381677016 Casing U ♦
35 9380636038 Fan motor assy (For 07 model) ♦
36 9379574006 Air filter ♦
37 9381675005 Motor bracket assy ♦
38 9381669004 Motor band L ♦
39 9381670000 Motor band R ♦
3-2. Mini duct type - (02-11) - 3. Indoor unit parts list
