31
32
33

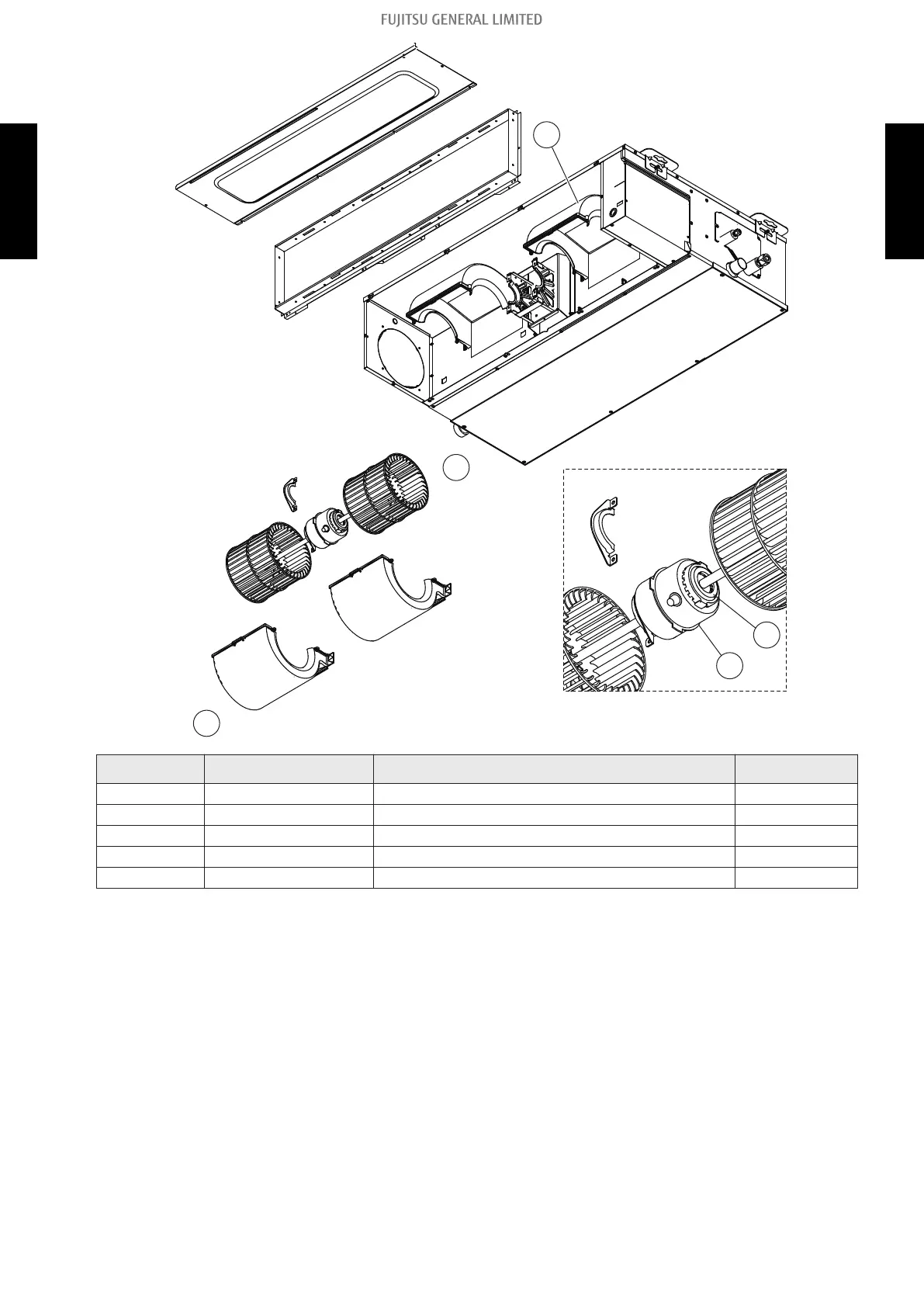

Intake cover sub assy
Intake frame assy
35
34
Motor bracket
Item no. Part no. Part name Service part
31 9374233021 Casing A ♦
32 9374234028 Casing B ♦
33 9356531060 Sirocco fan assy ♦
34 9380718031 Fan motor assy ♦
35 9385102002 Rubber ♦
3-4. Medium static pressure duct type - (02-25) - 3. Indoor unit parts list
