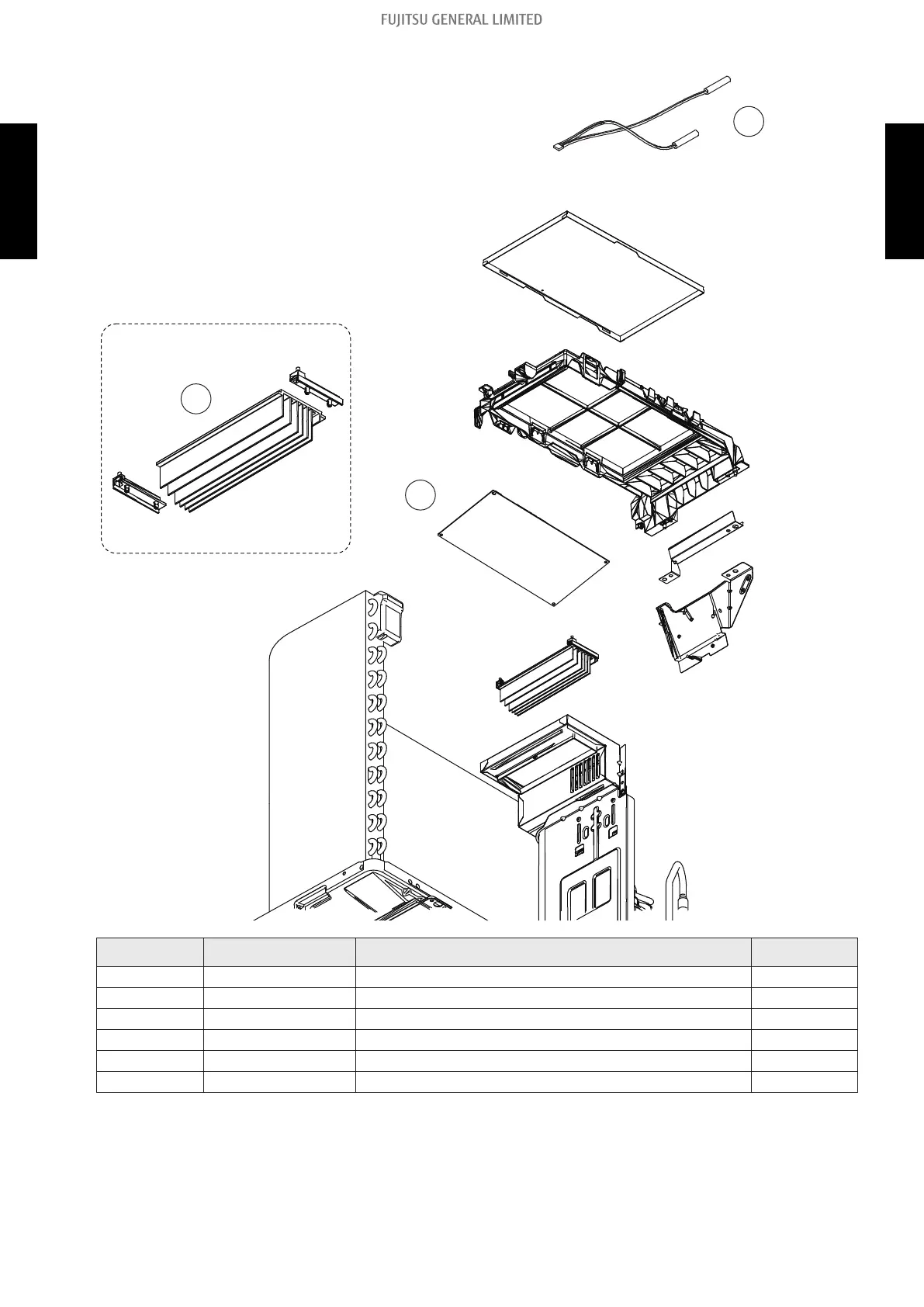

Page #104 background image
IPM spacer L
IPM
spacer R
PWB Holder
Auxiliary
plate
Terminal
bracket assy
Shield panel
22
21
23
Item no. Part no. Part name Service part
21 9709683781 Main PCB (Service unit) ♦
22 9322418005 Heat sink ♦
23 9900727062 Thermistor assy ♦
— 9900984014 Thermistor (Heat exchanger) ♦
— 9901025013 Thermistor assy (AB) ♦
— 9900985035 Compressor temp. thermistor ♦
4-1. Model: AOHG14KBTA2 - (02-60) - 4. Outdoor unit parts list
