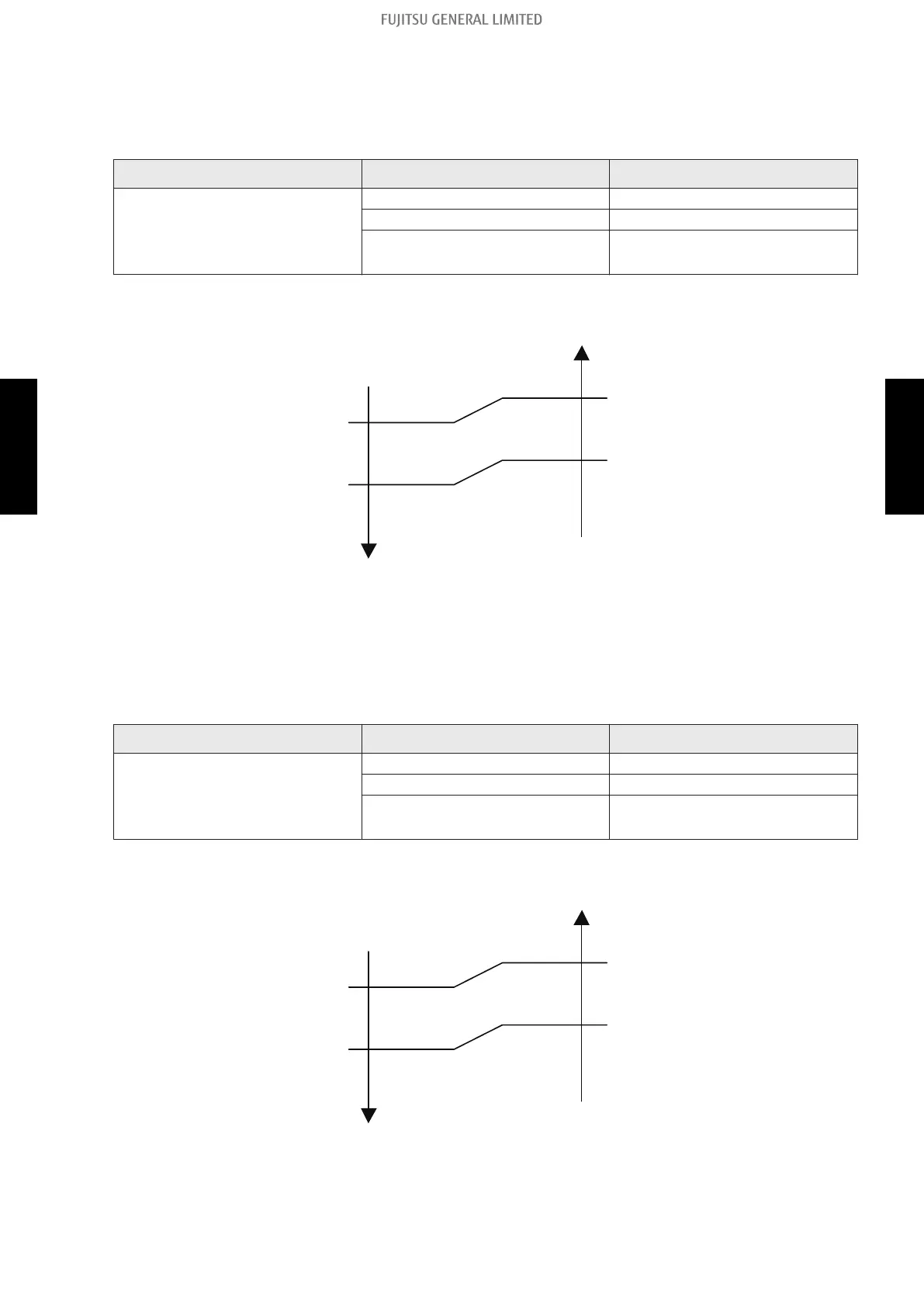

¢ Slim duct type
• Rotation number range of compressor
Unit: rps
Model name Outdoor temperature zone Operating rotation number
ARXG07KLLAP
ARXG09KLLAP
ARXG12KLLAP
ARXG14KLLAP
X zone 50
J zone 50
Y zone 0
• Compressor control based on room temperature
Ts+0.5°C
Ts -1.5°C
Ts-0.5°C
Ts+1.5°C
X zone
J zone
Y zone
Room temperature drops
Room temperature rises
Ts: Set temperature
¢ Wall mounted type (For KGTB)
• Rotation number range of compressor
Unit: rps
Model name Outdoor temperature zone Operating rotation number
ASHG07KGTB
ASHG09KGTB
ASHG12KGTB
ASHG14KGTB
X zone 50
J zone 50
Y zone 0
• Compressor control based on room temperature
Ts+0.5°C
Ts -1.5°C
Ts-0.5°C
Ts+1.5°C
X zone
J zone
Y zone
Room temperature drops
Room temperature rises
Ts: Set temperature
1-3. Dry operation
- (04-17) - 1. Rotation number control of compressor
