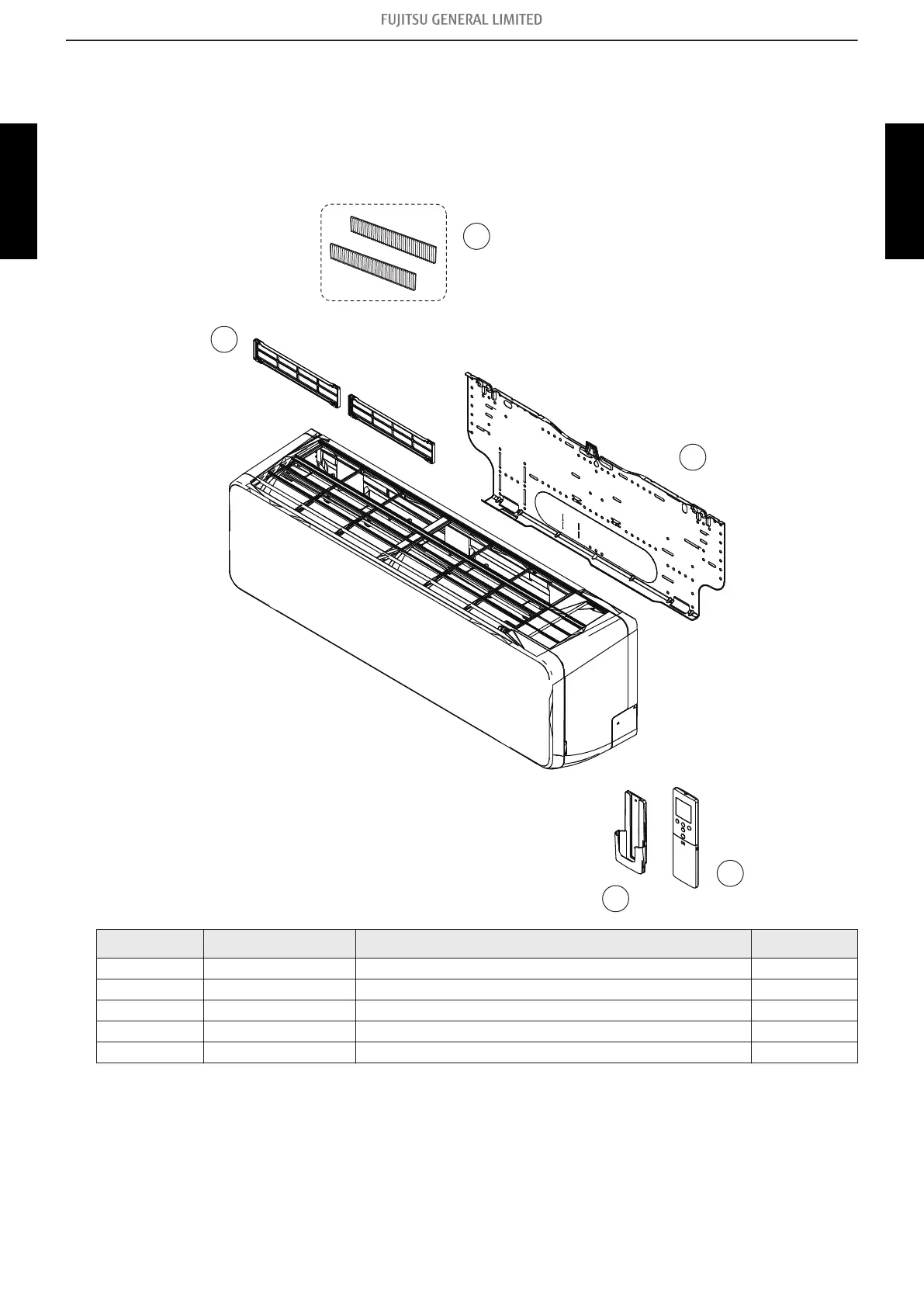

3-4. Wall mounted type
¢ Models: ASHG07KGTB, ASHG09KGTB, ASHG12KGTB, and
ASHG14KGTB
Exterior parts and chassis
5
4
3
1
2
Item no. Part no. Part name Service part
1 9382108045 Remote control ♦
2 9318912005 Remote control holder ♦
3 9387480009 Bracket panel ♦
4 9332911008 Electric filter holder ♦
5 9317250009 Air clean filter assy ♦
3-4. Wall mounted type - (02-15) - 3. Indoor unit parts list
