Fujitsu AUXG07KVLA User Manual

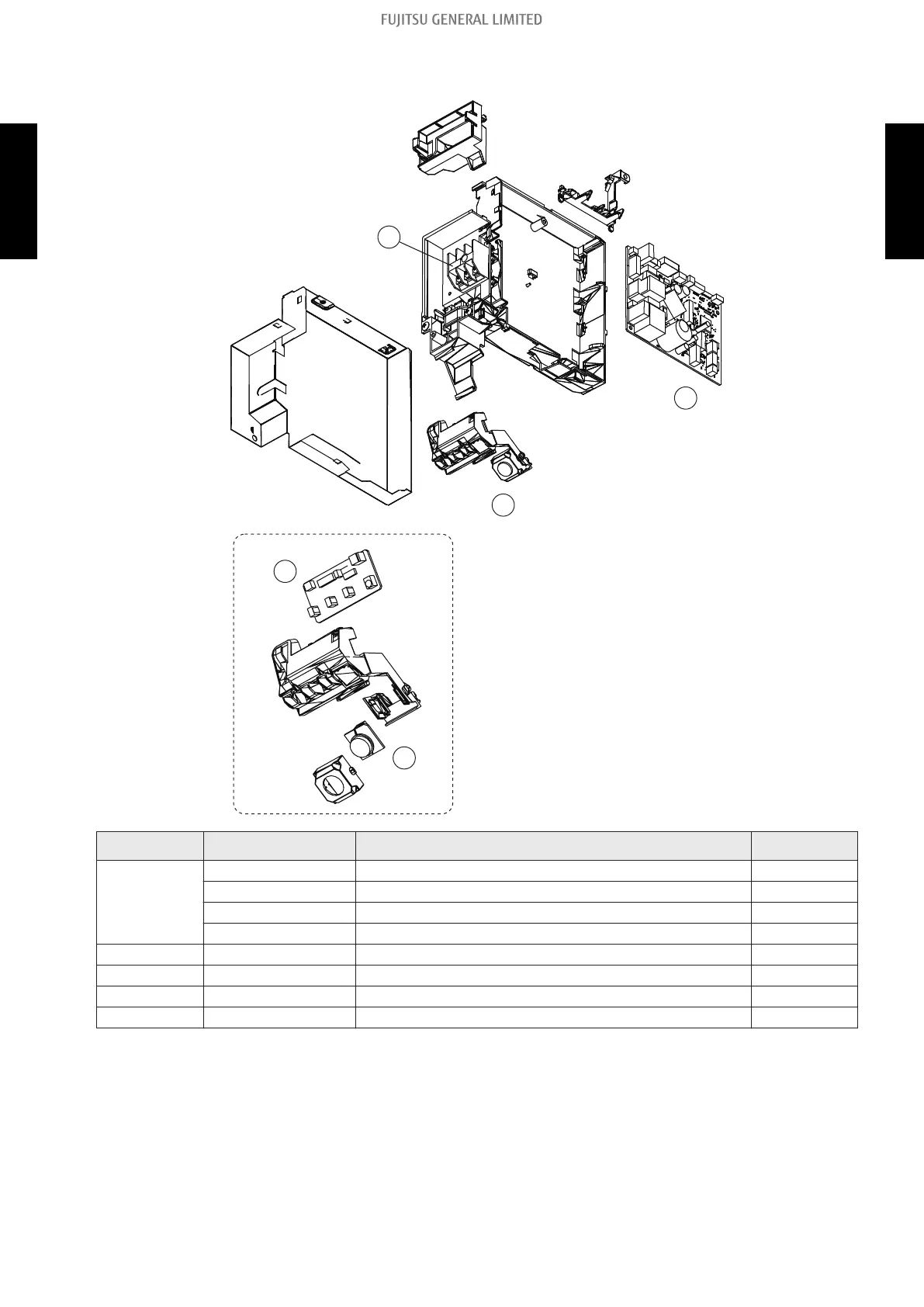

 Control box
54
55
Display
case
assy
Front
panel
cover B assy
Control box
Box shield
WLAN holder
PWB
holder A
51
53
52
Item no. Part no. Part name Service part
51
9710782411 Main PCB (for 07 model) ♦
9710782428 Main PCB (for 09 model) ♦
9710782435 Main PCB (for 12 model) ♦
9710782442 Main PCB (for 14 model) ♦
52 9306489045 Terminal ♦
53 9710858017 Display assy ♦
54 9710786013 Indicator PCB ♦
55 9317755061 Pyroelectric sensor ♦
3-4. Wall mounted type - (02-20) - 3. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Fujitsu AUXG07KVLA Specifications
