Fujitsu AUXG12KVLA Service Manual

¢ Wall mounted type (For KMTB, KMTE, KMCC, and KMCE)
• Rotation number range of compressor
Unit: rps
Model name Outdoor temperature zone Operating rotation number
ASHG07KMCC
ASHG09KMCC
ASHG12KMCC
ASHG14KMCC
ASHG07KMCE
ASHG09KMCE
X zone 54
ASHG12KMCE
ASHG14KMCE
ASHG07KMTB
ASHG09KMTB
ASHG12KMTB
ASHG14KMTB
J zone 54
ASHG18KMTB
ASHG22KMTB
ASHG24KMTB
ASHG18KMTE
ASHG22KMTE
ASHG24KMTE
Y zone 0
• Compressor control based on room temperature
Ts+0.5°C
Ts -1.5°C
Ts-0.5°C
Ts+1.5°C
X zone
J zone
Y zone
Room temperature drops
Room temperature rises
Ts: Set temperature

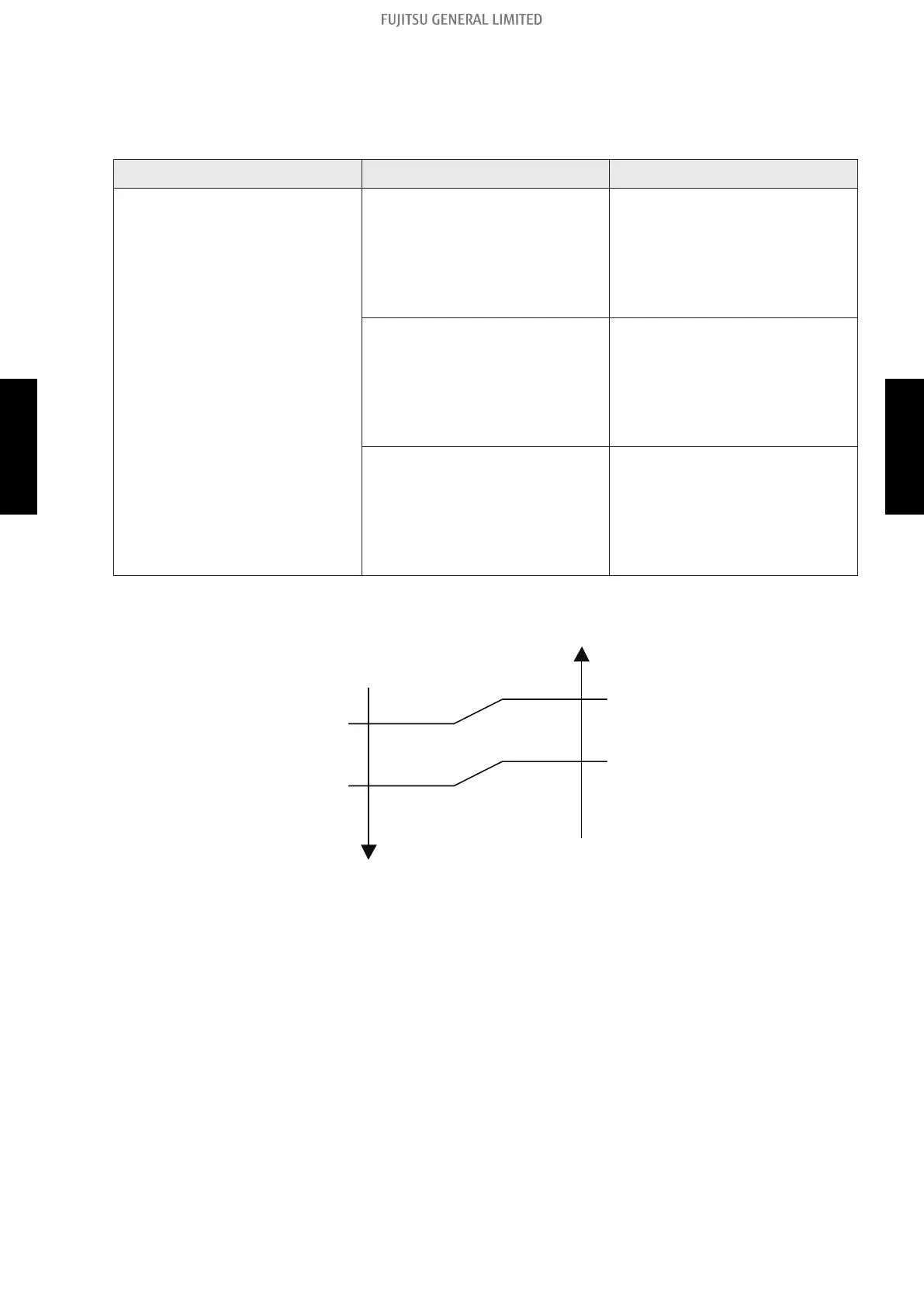

1-3. Dry operation - (04-13) - 1. Rotation number control of compressor
