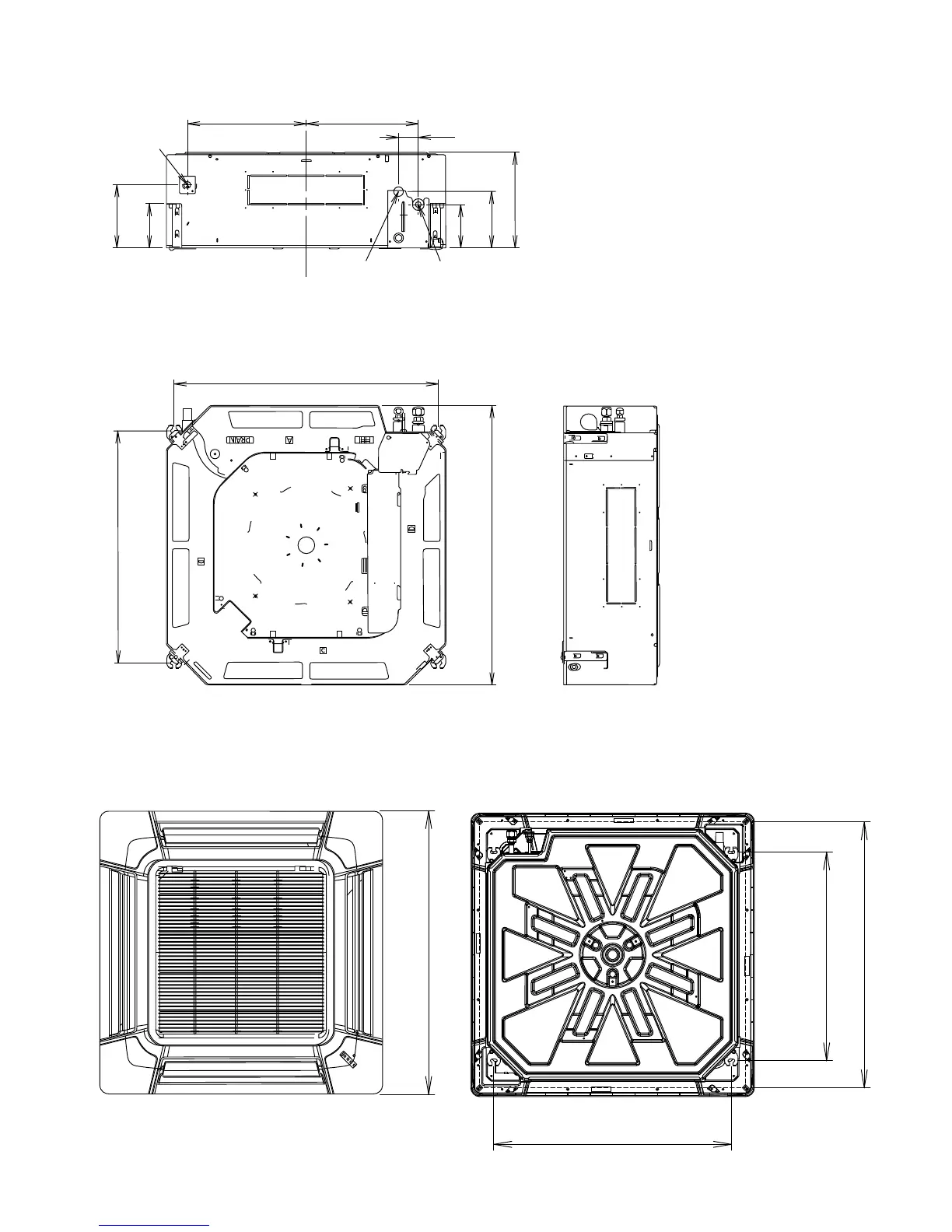

Fujitsu AUYA30LBLU - INDOOR UNIT DIMENSIONS; DIMENSIONS DIAGRAM

2009.01.28 2
Top view
699 (Hanging bolt position)
890 (Ceiling opening measurement
795 (Hanging bolt position)
Bottom view
950 (Panel measurement)
Drain pipe
Drain pipe diameter
Inside : 20 mm
Outside : 26 mm
699
84
0
DIMENSIONS
(Unit : mm)
INDOOR UNIT
DECORATION PANEL
Side view
Bottom view
Liquid pipe
Gas pipe
288
358
795
338
60
130
170
133
190
