CX400 M4 Disassembly and Recycling Instructions 13
Disassembly and recycling
Removing the fan cover

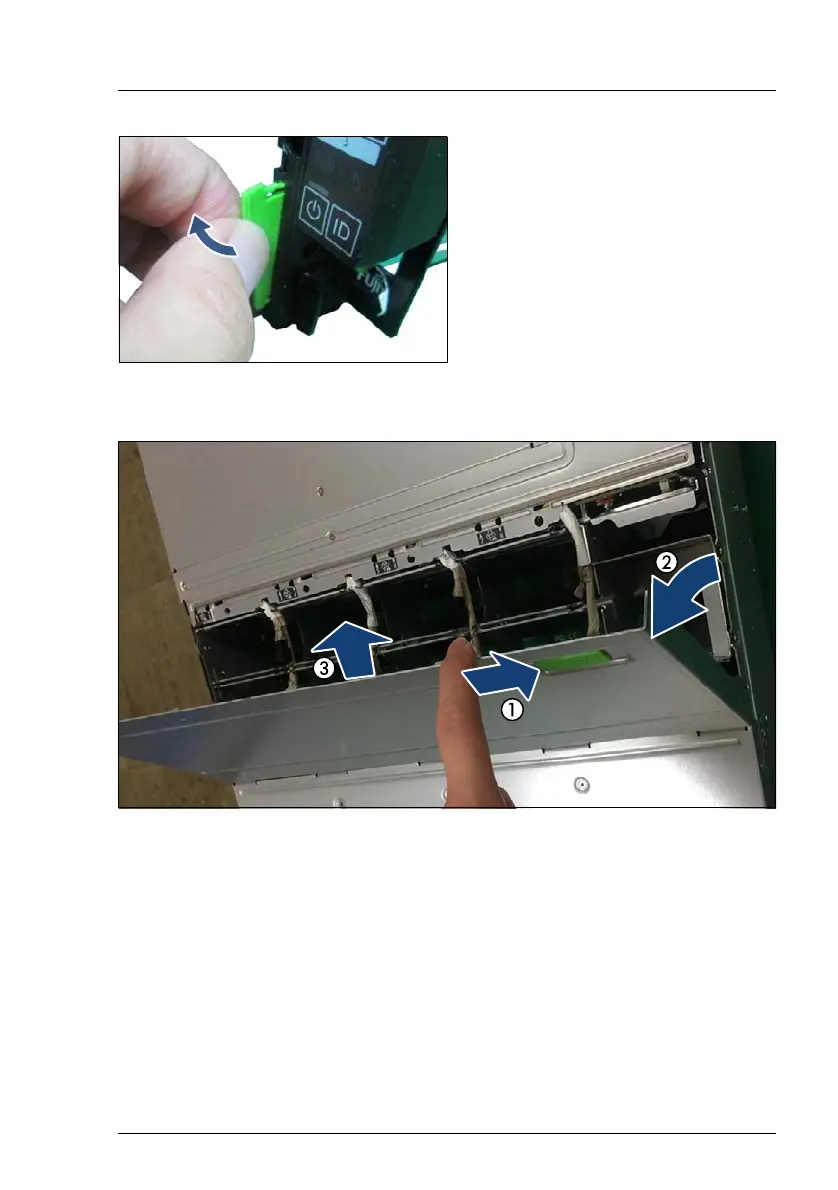

Figure 6: Removing the fan cover from the chassis
Ê Shift the locking tab in the direction of the arrow (1).
Ê Fold up the fan cover (2) and remove it (3).
Ê Unlock the lower lock of the
ID card.
